Tripp Lite 9U Wallmount Rack Enclosure Server Cabinet Wide Cable Management

Tripp Lite 9U Wallmount Rack Enclosure Server Cabinet Wide Cable Management - 19" 9U Wide x 20.50" Deep Wall Mountable for Server, LAN Switch, Patch Panel - Black Powder Coat - Steel - 200 lb x Static/Stationary Weight Capacity
$494.88Retail $921.02
  • 9U rack constructed from powder-coated steel that stands up to tough environments
  • Doors and side panels lock securely to help prevent damage, tampering or theft
  • Extra 3 in. width and integrated cable managers cut down on rear cord clutter
  • Ships fully assembled for immediate wall-mounting with user-supplied hardware
  • Provides physical equipment and media security required for PCI DSS compliance
  • 5-year limited warranty
By:
Tripp Lite
Manufacturer:
Tripp Lite by Eaton
Product ID:
63899
Item:
SRW9UDPVRT
UPC Code:
037332236494
Our Part #
6FQ887
Condition
New
$494.88EA
$921.02
Availability Only 96 Left In Stock
Great Deals Everyday

You may be also interested

Product description

Tripp Lite 9U Wallmount Rack Enclosure Server Cabinet Wide Cable Management - 19" 9U Wide x 20.50" Deep Wall Mountable for Server, LAN Switch, Patch Panel - Black Powder Coat - Steel - 200 lb x Static/Stationary Weight Capacity
19" 9U Wide x 20.50" Deep Wall Mountable for Server, LAN Switch, Patch Panel - Black Powder Coat - Steel - 200 lb x Static/Stationary Weight Capacity

Specifications

Product Material
Steel
Rack Depth
20.50"
Rack Width
19"
Static/Stationary Weight Capacity
200.62 lb
UPC Alternates
037332236494 818264553206
Application/Usage
Patch Panel
Application/Usage
Server
Application/Usage
LAN Switch
Assembly Required
No
Brand Name
Tripp Lite
Country of origin
China
Depth
21.7"
Environmental Certification
RoHS
Environmentally Friendly
Yes
Form factor
Wall Mountable
Height
19.8"
Limited Warranty
5 Year
Manufacturer
Tripp Lite by Eaton
Manufacturer Part Number
SRW9UDPVRT
Manufacturer Website Address
http://www.tripplite.com
Marketing Information

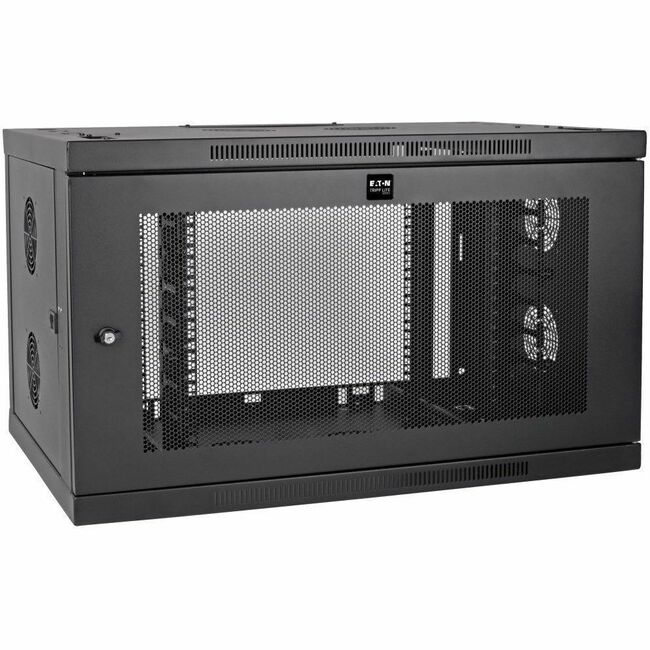

9U Wall-Mount Enclosure Houses EIA-Standard 19 in. Rack Equipment up to 20.5 in. Deep

This SmartRack® rack cabinet is designed to house 9U of equipment such as network switches and patch panels. It's recommended for branch offices retail locations classrooms back offices and other areas with limited floor space where you need equipment to be secure organized and out of the way. Constructed from heavy-duty steel with a durable black powder-coated finish the cabinet has a maximum load capacity of 200 pounds.

Lockable for Simple and Secure Equipment Access

The front door and side panels lock securely to help prevent damage tampering or theft. The reversible front door can open left or right by rotating the cabinet 180 degrees before mounting. Convenient top and bottom access ports allow easy cable routing through the cabinet.

Generous Airflow Keeps Equipment Cool

Round ports built into the top bottom and both sides are designed for optional ventilation fans (such as Tripp Lite's SRFANWM sold separately) that keep your equipment cool and functioning at their peak.

Designed with Extra Width for Easier Cable Access and Better Airflow

The SRW9UDPVRT is three inches wider than Tripp Lite's standard-width wall-mount racks. Combined with two vertical cable managers in front and two cable pass-through ports on top the extra width provides convenient cable management along the front of the rack. This allows easier cable access from the front and increases airflow by minimizing rear cable clutter that can obstruct vents. Cutouts on top of the rack can be used to secure cable bundles.

Easy Enclosure and Equipment Installation

This 9U server rack comes fully assembled and ready to mount to the wall with user-supplied hardware. The side panels can be removed for convenient installation maintenance and replacement of equipment. In addition to 9U horizontally the cabinet can accommodate an additional 2U vertically on both the left and right sides for a total of 13U. Front and rear mounting rails adjust independently to accommodate equipment up to 20.5 inches deep including network switches and patch panels.

Meets Payment Card Industry Standards

The SRW9UDPVRT provides physical equipment and media security required for PCI DSS (Payment Card Industry Data Security Standard) compliance.

Typical Applications

  • Store and organize rack-mount equipment in a network wiring closet retail location classroom or other area where you need equipment to be secure
  • Mount on a wall to save valuable floor space in a branch office or back office where floor space is limited
Maximum weight capacity
200 lb
Package Contents
  • SmartRack SRW9UDPVRT Rack Cabinet
  • 22 x M6 Screws
  • 22 x M6 Cage Nuts
  • 22 x M6 Cup Washers
  • 22 x 12-24 Screws
  • Removable Mounting Plate
  • Vertical Cable Management Fingers
  • 3 x Mounting Plate Screws
  • 2 x Keys
  • Owner's Manual
Product color
Black Powder Coat
Product Line
SmartRack
Product Name
SmartRack SRW9UDPVRT Rack Cabinet
Product Type
Rack Cabinet
Rack Height
9U
Weight (Approximate)
51.80 lb
Width
29.6"
