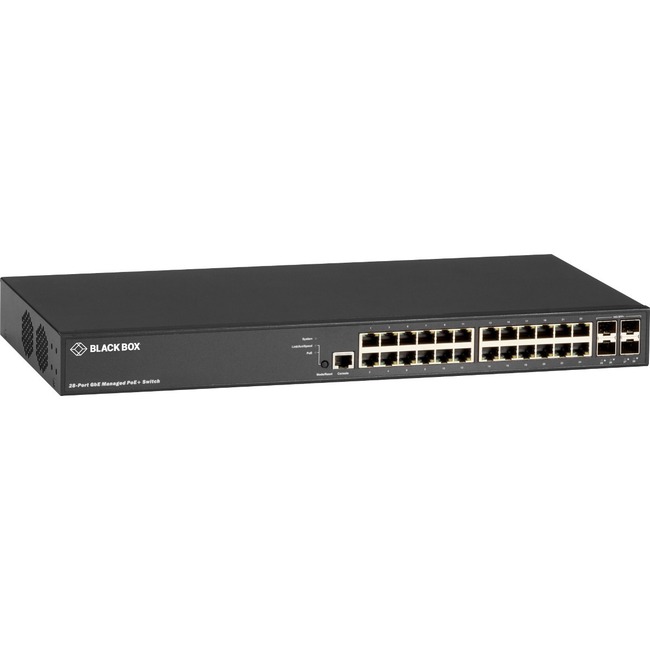

Black Box LPB3000 Ethernet Switch
Black Box LPB3000 Ethernet Switch - 24 Ports - Manageable - Gigabit Ethernet, 10 Gigabit Ethernet - 10/100/1000Base-T, 10GBase-X - TAA Compliant - 2 Layer Supported - Modular - Power Supply - 370 W PoE Budget - Optical Fiber, Twisted Pair - PoE Ports - Desktop - 1 Year Limited Warranty
| $1,252.66 | Retail $1,419.99 |
- Provides 10/100/1000BASE-T UTP ports plus SFP+ ports
- Powers 802.3af PoE or 802.3at PoE+ wireless access points, security cameras, VoIP phones, remote sensors, and other devices
- Add SFPs only when you need more capacity
- SFP slot enables you to define distances from 500 meters to 10 kilometers.
- Applicable for data backhaul applications
- Full SNMP management plus web-based management
- Higher backplane capacity, 10GE uplinks
- Faster processor for better IGMP performance
- Higher POE power capacity
By:
Black Box
Manufacturer:
Black Box Corporation
Product ID:
64080
Item:
LPB3028A
UPC Code:
822088135043
Our Part #
9FZ527
Condition
New
$1,252.66EA
$1,419.99
$1,419.99
Availability
Only 20 Left In Stock
You may be also interested
Product description
Black Box LPB3000 Ethernet Switch - 24 Ports - Manageable - Gigabit Ethernet, 10 Gigabit Ethernet - 10/100/1000Base-T, 10GBase-X - TAA Compliant - 2 Layer Supported - Modular - Power Supply - 370 W PoE Budget - Optical Fiber, Twisted Pair - PoE Ports - Desktop - 1 Year Limited Warranty
24 Ports - Manageable - Gigabit Ethernet, 10 Gigabit Ethernet - 10/100/1000Base-T, 10GBase-X - TAA Compliant - 2 Layer Supported - Modular - Power Supply - 370 W PoE Budget - Optical Fiber, Twisted Pair - PoE Ports - Desktop - 1 Year Limited Warranty
Specifications
Number of Total Expansion Slots
4
PoE Budget
370 W
Total Number of Network Ports
24
UPC Alternates
822088135043
Brand Name
Black Box
Country of origin
Taiwan
Depth
8.3"
Environmental Certification
WEEE
Environmental Certification
RoHS
Ethernet Technology
Gigabit Ethernet
Ethernet Technology
10 Gigabit Ethernet
Expansion Slot Type
SFP+
Form factor
Desktop
Height
1.7"
Input voltage
230 V AC
Input voltage
120 V AC
Layer Supported
2
Limited Warranty
1 Year
Manageable
Yes
Manufacturer
Black Box Corporation
Manufacturer Part Number
LPB3028A
Manufacturer Website Address
http://www.blackbox.com
Marketing Information
The Gigabit Ethernet Managed Switches add high-speed ports while offering the management and security features your enterprise network needs. Provides 10/100/1000BASE-T UTP ports and 1G/10G SFP+ ports.
Fully Manageable
The switch is fully managed supporting SNMP versions 1 2c and 3. The embedded RMON software agents support RMON groups 1 (history) 2 (statistics) 3 (alarms) and 9 (events).
The integral webserver enables web-based management via a web browser. This GUI interface enables switch configuration system dashboard maintenance and monitoring.
The wide range of management and support features also includes dual image port mirroring LLDP sFlow® UPnP® IPv6 SSH RADIUS DHCP Client/DHCPv6 Client SNTP cable diagnostics ping Syslog and Telnet client with SSH security.
Support for VLAN and QoS
Support for up to four simultaneous VLANs enables you to segment traffic with port-based 802.1Q tag-based or MAC-based VLANs. VoIP traffic is automatically assigned to a voice-specific VLAN to maintain quality. 802.1p Layer 2 quality of service (QoS) enables prioritization of time-sensitive applications such as VoIP and video.
Secure
You get enterprise-class security features too. 802.1X port-based network access control authenticates devices connecting to your network. The switch also supports SNMPv3 cryptographic security SSH and SSL. Plus you can set up a guest VLAN that enables visitors to access the Internet without also giving them access to the corporate network.
10-GE Uplinks
This switch features 10-GE uplinks that increase backplane capacity.
Super-Fast Switch Control Processor
The Gigabit Ethernet Managed Switch has a powerful switch control processor that improves IGMP performance.
Green
The PoE+ Gigabit Managed Switch Eco features IEEE 802.3az energy-efficient Ethernet which scales down power consumption during periods of low data activity. This feature adds up to energy savings of up to 50%.
Cable length detection adjusts signal strength to the cable length reducing power consumption on shorter cable runs.
This product is covered by one or more of the following: United States Patent Nos. 7457250; 8902760; and/or 9019838.
Media Type Supported
Optical Fiber
Media Type Supported
Twisted Pair
Network Technology
10/100/1000Base-T
Network Technology
10GBase-X
Networking standards
IEEE 802.1Q
Networking standards
IEEE 802.3af
Networking standards
IEEE 802.1x
Networking standards
IEEE 802.3at
Networking standards
IEEE 802.1p
Networking standards
IEEE 802.3az
Package Contents
- LPB3000 Ethernet Switch
- 1 x AC Power Cord
- 4 x Adhesive Rubber Feet
- 1 x Mounting Kit
- 1 x RJ-45 to DB9 Serial Console Cable
Packaged Quantity
1
Port/Expansion Slot Details
24 x Gigabit Ethernet PoE+
Port/Expansion Slot Details
4 x 10 Gigabit Ethernet Expansion Slot
Power source
Power Supply
Product Name
LPB3000 Ethernet Switch
Product Series
LPB3000
Product Type
Ethernet Switch
Weight (Approximate)
8.36 lb
Width
17.4"
