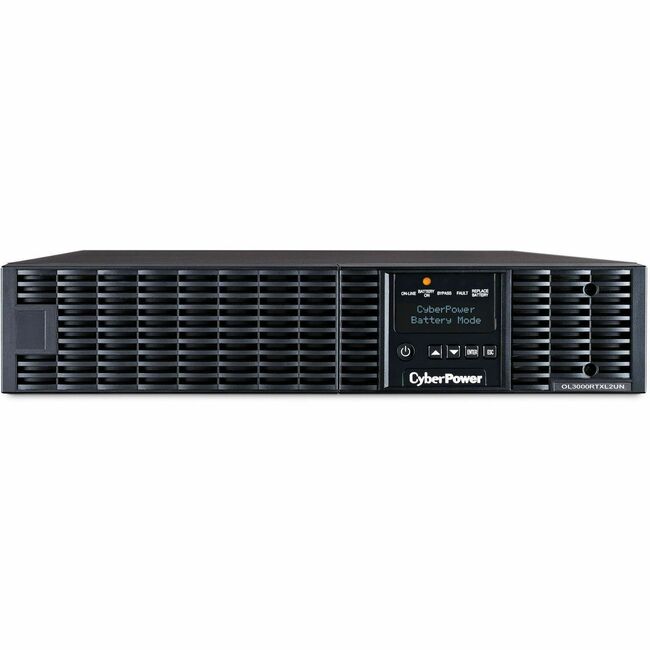

CyberPower OL3000RTXL2UN Smart App Online UPS Systems
CyberPower OL3000RTXL2UN Smart App Online UPS Systems - 3000VA/2700W, 100 - 125 VAC, NEMA L5-30P, 2U, Rack / Tower, Sine Wave, 7 Outlets, LCD, PowerPanel® Business, $400000 CEG, 3YR Warranty
| $2,371.73 | Retail $2,879.00 |
- Capacity: 3000 VA / 2700 W
- Power Factor (PF): 0.9
- Topology: Double-Conversion
- Waveform: Sine Wave
- Output: 100, 110, 115, 120, 125 V ±2% (configurable)
- Plug type & cord: NEMA L5-30P, 10 ft. cord
- Outlet types: 6 � NEMA 5-20R, 1 L5-30R
- Monitoring & Management: USB, Serial, RMCARD205, Relay, EPO
- Data line surge protection: Telephone, Network
- Management software: PowerPanel® Business Edition
By:
CyberPower
Manufacturer:
CyberPower Systems, Inc
Product ID:
64247
Item:
OL3000RTXL2UN
UPC Code:
649532621309
Our Part #
9GM088
Condition
New
$2,371.73EA
$2,879.00
$2,879.00
Availability
Only 5 Left In Stock
Product description
CyberPower OL3000RTXL2UN Smart App Online UPS Systems - 3000VA/2700W, 100 - 125 VAC, NEMA L5-30P, 2U, Rack / Tower, Sine Wave, 7 Outlets, LCD, PowerPanel® Business, $400000 CEG, 3YR Warranty
3000VA/2700W, 100 - 125 VAC, NEMA L5-30P, 2U, Rack / Tower, Sine Wave, 7 Outlets, LCD, PowerPanel® Business, $400000 CEG, 3YR Warranty
Specifications
Directly Connected Equipment Guarantee
$400000Lifetime
Energy Saving
ECO Mode Efficiency >95%
Maximum Operating Elevation
10000 ft
Maximum Storage Elevation
50000 ft
Number of Battery & Surge Outlets
7
Output Frequency
60 Hz
Overload Protection
Yes
Receptacle Detail
6 x NEMA 5-20R
Receptacle Detail
1 x NEMA L5-30R
Sound Emission (A-Weighted)
55 dB(A)
Storage Relative Humidity
0% - 95%
Storage Temperature
-4°F (-20°C) - 113°F (45°C)
UPC Alternates
649532621309
Waveform Type
Sine Wave
Additional Information
- Replacement Battery Cartridge Quantity: 1
- Smart Battery Management (SBM) Mode: Yes
- Circuit Breaker: 30A
- Cold Start: Yes
- Input Power Factor: 0.99
- Input Voltage Range: 60 VAC - 69 VAC for 0-60% Load
- Crest Factor: 3:1
- ECO Mode Voltage Regulation: ±10% ±15% (Configurable)
- Harmonic Distortion: < 3% at Linear Load
- Nominal Output Voltage: 100 - 125 VAC
- On Battery Frequency: 50/60 Hz ± 0.25Hz (auto-sensing or configurable)
- Output Power Factor: 0.9
- Overload Protection: Line Mode: 105% ~ 125% Load - 1 min
- Short Circuit Protection: UPS Output Cut Off Immediately or Input Fuse / Circuit Breaker Protection
- VA by Input Type: 3000 (3.0 kVA) at 120 125 V input
- Watts by Input Type: 2700 (2.7 kW) at 120 125 V input
- Phone / Network Protection RJ11/RJ45: 1-In / 1-Out (Combo)
- Audible Alarms: Battery Mode
- Dry Contacts: Yes
- Expansion Slot: Yes - RMCARD205 pre-installed
- HID Compliant USB Port: Yes
- LCD: Multifunction LCD
- Management Cable: USB Cable
- Removable LCD Control Panel Option: Yes - Requires DB26 cable (not included)
- Rotatable LCD Control Panel Option: Yes
- Upgradeable firmware: Yes
- Material of Construction: Metal
- Mounting Hardware: Yes
- Audible noise at 1m from surface of unit: 38 dBA to 55 dBA (0 to 100% load)
- ECO Mode Thermal Dissipation: 364 BTU/hr
- Operating Relative Humidity: 0 - 90 % (non-condensing)
- Operating Temperature: 32 - 104 °F (0 - 40 °C)
- Storage Relative Humidity: 0 - 95% (non-condensing)
Alarm
Battery Mode
Application/Usage
PBX System
Application/Usage
Storage Device
Application/Usage
Network Closet
Application/Usage
Server
Application/Usage
Network Device
Application/Usage
Mission Critical Equipment
Backup/Run Time (Full Load)
3.50 Minute
Backup/Run Time (Half Load)
11 Minute
Battery capacity
9000 mAh
Battery Characteristics
Sealed
Battery Chemistry
Lead Acid
Battery Size
12V
Brand Name
CyberPower
Certifications & Standards
UL 1778
Country of origin
Taiwan
Dataline Protection
RJ-45
Dataline Protection
RJ-11
Depth
23.6"
Environmental Certification
RoHS
Form factor
Rack/Tower
Height
3.5"
Input frequency
70 Hz
Input voltage
120 V AC
Input Voltage Range
100 V AC - 125 V AC
Limited Warranty
3 Year
Load Capacity
3000 VA
Manufacturer
CyberPower Systems Inc
Manufacturer Part Number
OL3000RTXL2UN
Manufacturer Website Address
http://www.cyberpowersystems.com
Marketing Information
Prevent business interruptions and safeguard mission-critical enterprise network equipment.
The CyberPower OL3000RTXL2UN is a rack/tower UPS with double conversion topology. It provides sine wave output to critical applications and equipment that require seamless power correction. The Extended Battery Module (EBM) expands runtime and Fast Charge Technology restores full backup power faster. This model comes with an extendable LCD control panel Smart Battery Management charging technology and energy-saving GreenPower UPS™ ECO Mode.
The OL3000RTXL2UN offers generator compatibility and delivers clean AC power with zero transfer time. A factory installed RM card allows remote management and configuration of the UPS via a standard web browser command line interface (CLI) or network management system (NMS). Its sine wave output keeps sensitive equipment working by preventing unnecessary shutdowns that can occur with simulated sine wave output.
With a $400000 lifetime connected equipment guarantee and a three-year warranty you can trust CyberPower's commitment to high quality.
Marketing Information
Prevent business interruptions and safeguard mission-critical enterprise network equipment.
The CyberPower OL3000RTXL2UN is a rack/tower UPS with double conversion topology. It provides sine wave output to critical applications and equipment that require seamless power correction. The Extended Battery Module (EBM) expands runtime and Fast Charge Technology restores full backup power faster. This model comes with an extendable LCD control panel Smart Battery Management charging technology and energy-saving GreenPower UPS™ ECO Mode.
The OL3000RTXL2UN offers generator compatibility and delivers clean AC power with zero transfer time. A factory installed RM card allows remote management and configuration of the UPS via a standard web browser command line interface (CLI) or network management system (NMS). Its sine wave output keeps sensitive equipment working by preventing unnecessary shutdowns that can occur with simulated sine wave output.
With a $400000 lifetime connected equipment guarantee and a three-year warranty you can trust CyberPower's commitment to high quality.
Maximum Operating Temperature
104°F (40°C)
Number of Batteries
6
Output voltage
110 V AC
Output voltage
115 V AC
Output voltage
125 V AC
Output voltage
100 V AC
Package Contents
- Smart App Online OL3000RMXL2U 3000VA Rack/Tower UPS
- User Manual
- Registration Card
- 2 x Rackmount Rails
- 2 x Rackmount Ears
- 2 x Hanging Brackets
- Phone Line
- USB Communication Cable
- Serial Interface Cable (RS-232)
- 8 x M5X7L Black Flat Head Screws
- 12 x M5X12L Black Pan Head Screws
- 6 x M5X6l Silver Pan Head Screws
- 8 x Plastic Washers
- 12 x Screw Hole Dust Covers
- 12 x Rubber Pads
- Software Download Card
Plug/Connector Type
NEMA L5-30P
Product color
Black
Product Name
Smart App Online OL3000RMXL2U 3000VA Rack/Tower UPS
Product Series
Smart App Online UPS
Product Type
Double Conversion Online UPS
Product Type
Dual Conversion Online UPS
Protection Type
Surge
Rack Height
2U
Receptacle Type
NEMA 5-20R
Receptacle Type
NEMA L5-30R
Software Included
PowerPanel® Business
Sound Emission
55 dB(A)
Status Indicators
LED Indicators:
- Power On (White)
- Line Mode (Green)
- Battery Mode (Yellow)
- Bypass Mode (Yellow)
- Fault (Red)
- Replace Battery (Red)
Surge energy rating
1335 J
Thermal Dissipation
260.54 W
Transfer Time
0 ns
Typical Battery Recharge Time
4 Hour
Weight (Approximate)
68.20 lb
Width
17"
