Extreme Networks 5520 48-port 90w PoE with 12 ports multi-rate Switch

The ExtremeSwitching 5520 Series is a family of high-performance feature-rich edge and aggregation switches designed for the nextgeneration digital enterprise. The 5520 Series universal hardware provides end-to-end secure network segmentation in addition to advanced policy capabilities and offers a user-selectable choice of Extreme's flagship switch operating systems. This makes the 5520 a uniquely flexible platform that can be deployed across a range of edge aggregation and wiring-closet environments.

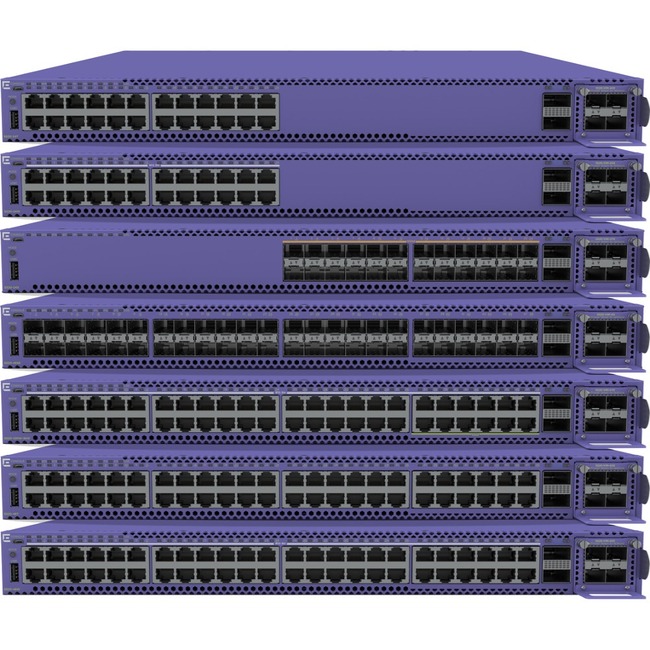

The 5520 Series includes 24- and 48-port 1 Gigabit models 1/2.5/5 Gigabit multi-rate models as well as a 24-port 10 Gigabit model. The family also offers 30/60/90W PoE making it an ideal wired backend for wireless APs or in support of next-gen powered Ethernet devices such as digital signage pan-tilt-zoom cameras smart lighting or point-of-sale terminals. The 5520 further supports 10G and 25G modular uplinks for flexible linkage to other switches or devices over a range of media.

Universal Hardware Platform

The 5520 Series as a universal hardware platform comes with a dual-persona capability allowing user choice of the switch operating system (OS). Either the ExtremeXOS or VSP Operating System (VOSS) persona can be enabled on 5520 hardware models. The desired persona can be selected at start-up or changed at a later stage. Once selected the 5520 assumes the features/capabilities of the selected OS.

The 5520 persona activation can be done manually at bootup including via the system CLI. Or it can be automated by pre-provisioning the 5520 persona in ExtremeCloud IQ. When first booted the 5520 automatically connects to ExtremeCloud IQ to find its persona. The pre-provisioned OS persona is then remotely enabled on the 5520 system- eliminating the need for manual selection.

Ethernet Fabric Services

The 5520 supports a variety of Ethernet Fabric services including Extreme's Fabric Connect when running VOSS and Extreme's IP Fabric when running ExtremeXOS. It also supports Fabric Attach for automated connection to either Layer 2 or Layer 3 fabric services. Extreme's Fabric Connect and IP Fabric on the 5520 enable the creation of virtualized networks that automate network operations simplify network provisioning and enhance security all while reducing the strain on network and IT personnel.

Extended Edge Switching

The 5520 models support Extended Edge Switching an innovative solution that simplifies the deployment and operation of edge switches. As the controlling bridge of an Extended Edge Switching solution the 5520 when running EXOS can be combined with Extreme's V300 and V400 Series access devices to create a single logical switch architecture. The result is a simplified operational model that reduces costs.

Power Over Ethernet

The 5520 Series includes Power over Ethernet (PoE) models with standards-based IEEE 802.3bt (30/60/90W) PoE support. This enables the 5520 to address the needs of powered edge devices while eliminating the need for additional electrical cabling and circuits. 5520 PoE models also support perpetual and fast PoE for even more efficient and reliable powered edge device operation.

VIM Options for Flexible Uplinks

Versatile Interface Modules (VIMs) on the 5520 provide flexible uplink capabilities - with 5520 models offering a single VIM slot for this purpose. VIM options include 4-port 10Gb or 25Gb modules that include LRM and 256-bit MACsec support.
