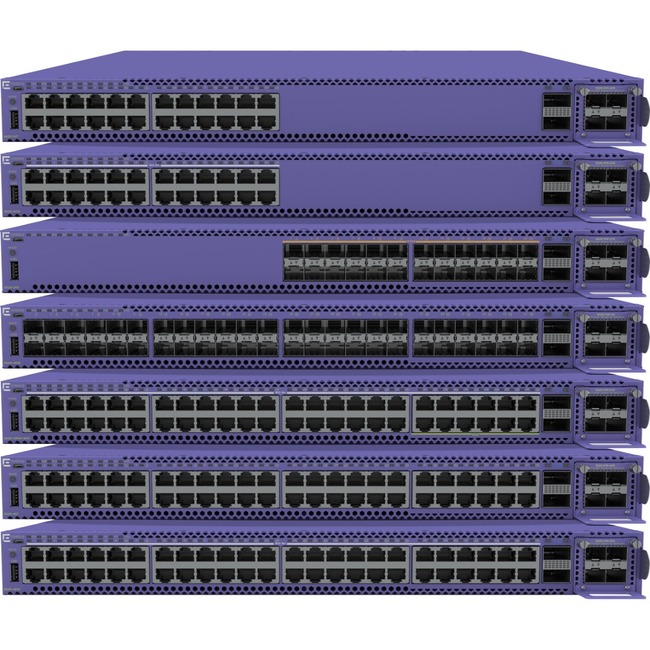

Extreme Networks 5520 48-port 90w PoE Switch
Extreme Networks 5520 48-port 90w PoE Switch - 48 Ports - Manageable - 3 Layer Supported - Modular - 4100 W Power Consumption - 90 W PoE Budget - Twisted Pair, Optical Fiber - PoE Ports - Rack-mountable
| $8,540.90 | Retail $11,096.00 |
- Features 48 networking ports to establish large network
- Stack port provides an easy and hassle-free way to extend your office network
- Supports optical fiber cable to span longer distances and provided high data transmission rates between servers and network components
- Up to 10x faster than standard Ethernet server connectivity while providing high-performance uplinks
- Supports layer 3 switching for enhanced performance and usability
- Built-in power supply to ensure all components are being supplied with accurate voltage
- Rack mounting enables you to organize wires & secure cables for professional installation
By:
Extreme Networks
Manufacturer:
Extreme Networks, Inc
Product ID:
64382
Item:
5520-48W
UPC Code:
644728046997
Our Part #
43222612
Condition
New
$8,540.90EA
$11,096.00
$11,096.00
Availability
Currently out of stock
You may be also interested
Product description
Extreme Networks 5520 48-port 90w PoE Switch - 48 Ports - Manageable - 3 Layer Supported - Modular - 4100 W Power Consumption - 90 W PoE Budget - Twisted Pair, Optical Fiber - PoE Ports - Rack-mountable
48 Ports - Manageable - 3 Layer Supported - Modular - 4100 W Power Consumption - 90 W PoE Budget - Twisted Pair, Optical Fiber - PoE Ports - Rack-mountable
Specifications
Number of Power Supplies Supported
2
PoE Budget
90 W
Total Number of Network Ports
48
UPC Alternates
644728046997
Brand Name
Extreme Networks
Ethernet Technology
100 Gigabit Ethernet
Ethernet Technology
Gigabit Ethernet
Expansion Slot Type
Versatile Interface Module (VIM)
Expansion Slot Type
QSFP28
Form factor
Rack-mountable
Frequency
50 Hz
Frequency
60 Hz
Height
1.7"
Input voltage
120 V AC
Input voltage
230 V AC
Layer Supported
3
Manageable
Yes
Manufacturer
Extreme Networks Inc
Manufacturer Part Number
5520-48W
Manufacturer Website Address
http://www.extremenetworks.com
Marketing Information
The ExtremeSwitching 5520 Series is a family of high-performance feature-rich edge and aggregation switches designed for the nextgeneration digital enterprise. The 5520 Series universal hardware provides end-to-end secure network segmentation in addition to advanced policy capabilities and offers a user-selectable choice of Extreme's flagship switch operating systems. This makes the 5520 a uniquely flexible platform that can be deployed across a range of edge aggregation and wiring-closet environments.
The 5520 Series includes 24- and 48-port 1 Gigabit models 1/2.5/5 Gigabit multi-rate models as well as a 24-port 10 Gigabit model. The family also offers 30/60/90W PoE making it an ideal wired backend for wireless APs or in support of next-gen powered Ethernet devices such as digital signage pan-tilt-zoom cameras smart lighting or point-of-sale terminals. The 5520 further supports 10G and 25G modular uplinks for flexible linkage to other switches or devices over a range of media.
Universal Hardware Platform
The 5520 Series as a universal hardware platform comes with a dual-persona capability allowing user choice of the switch operating system (OS). Either the ExtremeXOS or VSP Operating System (VOSS) persona can be enabled on 5520 hardware models. The desired persona can be selected at start-up or changed at a later stage. Once selected the 5520 assumes the features/capabilities of the selected OS.
The 5520 persona activation can be done manually at bootup including via the system CLI. Or it can be automated by pre-provisioning the 5520 persona in ExtremeCloud IQ. When first booted the 5520 automatically connects to ExtremeCloud IQ to find its persona. The pre-provisioned OS persona is then remotely enabled on the 5520 system- eliminating the need for manual selection.
Power Over Ethernet
The 5520 Series includes Power over Ethernet (PoE) models with standards-based IEEE 802.3bt (30/60/90W) PoE support. This enables the 5520 to address the needs of powered edge devices while eliminating the need for additional electrical cabling and circuits. 5520 PoE models also support perpetual and fast PoE for even more efficient and reliable powered edge device operation.
VIM Options for Flexible Uplinks
Versatile Interface Modules (VIMs) on the 5520 provide flexible uplink capabilities - with 5520 models offering a single VIM slot for this purpose. VIM options include 4-port 10Gb or 25Gb modules that include LRM and 256-bit MACsec support.
Ethernet Fabric Services
The 5520 supports a variety of Ethernet Fabric services including Extreme's Fabric Connect when running VOSS and Extreme's IP Fabric when running ExtremeXOS. It also supports Fabric Attach for automated connection to either Layer 2 or Layer 3 fabric services. Extreme's Fabric Connect and IP Fabric on the 5520 enable the creation of virtualized networks that automate network operations simplify network provisioning and enhance security all while reducing the strain on network and IT personnel.
High-Performance Stacking
The 5520 also supports high-speed 160Gb stacking when running ExtremeXOS via its two built-in QSFP28 ports. Up to eight systems can be stacked using qualified QSFP+ direct attach cables and optical transceivers.
The 5520 Series includes 24- and 48-port 1 Gigabit models 1/2.5/5 Gigabit multi-rate models as well as a 24-port 10 Gigabit model. The family also offers 30/60/90W PoE making it an ideal wired backend for wireless APs or in support of next-gen powered Ethernet devices such as digital signage pan-tilt-zoom cameras smart lighting or point-of-sale terminals. The 5520 further supports 10G and 25G modular uplinks for flexible linkage to other switches or devices over a range of media.
Universal Hardware Platform
The 5520 Series as a universal hardware platform comes with a dual-persona capability allowing user choice of the switch operating system (OS). Either the ExtremeXOS or VSP Operating System (VOSS) persona can be enabled on 5520 hardware models. The desired persona can be selected at start-up or changed at a later stage. Once selected the 5520 assumes the features/capabilities of the selected OS.
The 5520 persona activation can be done manually at bootup including via the system CLI. Or it can be automated by pre-provisioning the 5520 persona in ExtremeCloud IQ. When first booted the 5520 automatically connects to ExtremeCloud IQ to find its persona. The pre-provisioned OS persona is then remotely enabled on the 5520 system- eliminating the need for manual selection.
Power Over Ethernet
The 5520 Series includes Power over Ethernet (PoE) models with standards-based IEEE 802.3bt (30/60/90W) PoE support. This enables the 5520 to address the needs of powered edge devices while eliminating the need for additional electrical cabling and circuits. 5520 PoE models also support perpetual and fast PoE for even more efficient and reliable powered edge device operation.
VIM Options for Flexible Uplinks
Versatile Interface Modules (VIMs) on the 5520 provide flexible uplink capabilities - with 5520 models offering a single VIM slot for this purpose. VIM options include 4-port 10Gb or 25Gb modules that include LRM and 256-bit MACsec support.
Ethernet Fabric Services
The 5520 supports a variety of Ethernet Fabric services including Extreme's Fabric Connect when running VOSS and Extreme's IP Fabric when running ExtremeXOS. It also supports Fabric Attach for automated connection to either Layer 2 or Layer 3 fabric services. Extreme's Fabric Connect and IP Fabric on the 5520 enable the creation of virtualized networks that automate network operations simplify network provisioning and enhance security all while reducing the strain on network and IT personnel.
High-Performance Stacking
The 5520 also supports high-speed 160Gb stacking when running ExtremeXOS via its two built-in QSFP28 ports. Up to eight systems can be stacked using qualified QSFP+ direct attach cables and optical transceivers.
Media Type Supported
Optical Fiber
Media Type Supported
Twisted Pair
Network Technology
100GBase-X
Network Technology
10/100/1000Base-T
Plug/Connector Type
IEC 60320 C16
Plug/Connector Type
C15
Port/Expansion Slot Details
2 x Stack
Port/Expansion Slot Details
48 x Gigabit Ethernet PoE
Power consumption
4100 W
Power source
Power Supply
Product Name
5520 48-port 90w PoE Switch
Product Series
5520
Product Type
Layer 3 Switch
Weight (Approximate)
13.36 lb
Width
17.4"
