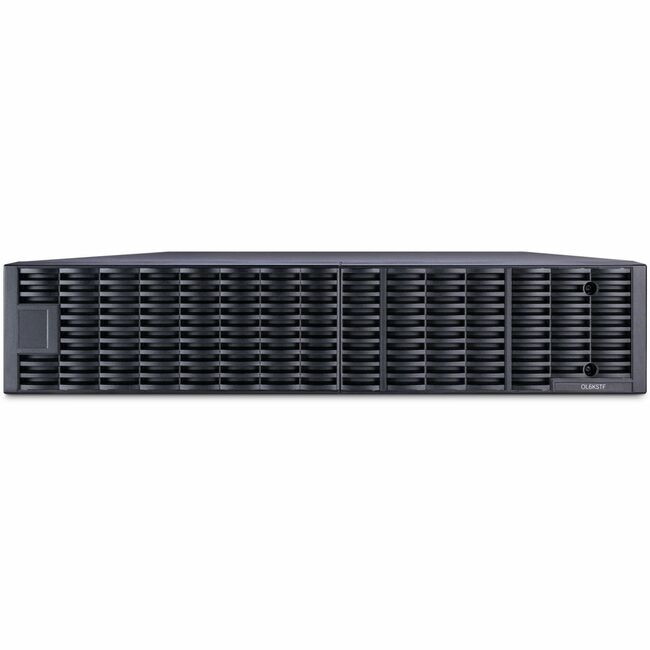

CyberPower OL6KSTF OL6KSTF 2U 6,000 VA Step-down and Isolation Transformer
CyberPower OL6KSTF OL6KSTF 2U 6,000 VA Step-down and Isolation Transformer - Black 6 ft, Hardwire Terminal (NEMA L6-30P power cord included), 3YR Warranty - Hardware & Accessories
| $2,095.42 |
- Step-down transformer: 6,000 VA / 6,000 W
- Output: 120 V, 208 V, 50/60 Hz
- Power conversion: 208 V from utility, UPS, or generator to 120 V output
- Plug type & cord: 6 ft NEMA L6-30P power cord
- Outlets: (6) NEMA 5-20R, (1) Hardwire Terminal Block
- Form factor: 2U Rack/Tower convertible
- Overload protection: Output circuit breakers
- Over temperature protection: Yes
- Warranty: Three year
By:
CyberPower
Manufacturer:
CyberPower Systems, Inc
Product ID:
64494
Item:
OL6KSTF
UPC Code:
649532620180
Our Part #
9JN633
Condition
New
$2,095.42EA
Availability
Only 16 Left In Stock
Product description
CyberPower OL6KSTF OL6KSTF 2U 6,000 VA Step-down and Isolation Transformer - Black 6 ft, Hardwire Terminal (NEMA L6-30P power cord included), 3YR Warranty - Hardware & Accessories
Black 6 ft, Hardwire Terminal (NEMA L6-30P power cord included), 3YR Warranty - Hardware & Accessories
Specifications
Input Receptacles
Hardwired
Output Receptacle Detail
6 x NEMA 5-20R
Output Receptacle Detail
1 x Terminal Block
Output Receptacles
Terminal Block
Output Receptacles
NEMA 5-20R
Shipping Depth
35.40"
Shipping Height
10.68 ft
Shipping Width
23.60"
UPC Alternates
649532620180
Additional Information
- Current Rating : 30 A
- Energy Saving : Yes
- Nominal Voltage : 200 V to 240 V
- Over Temperature Protection : Yes
- Type : Step-Down Transformer
- UPS Topology : Step-Down Transformer
- Cord Length (m) : 1.8
- Input Frequency : 50/60 Hz
- Nominal Voltage (Battery Mode) : 120 V 208 V
- Output Frequency : 50/60 Hz
- Overload Protection : Circuit Breaker Protected
- Enclosure Construction : Steel
- Audible noise at 1m from surface of unit : 58 dBA
- Operating Elevation : 0 ft to 10000 ft (0 m to 3000 m)
- Operating Relative Humidity : 0% to 90% non-condensing
- Operating Temperature : 32 °F to 104 °F (0 °C to 40 °C)
- STF Thermal Dissipation (100% load) : 1379 BTU/hr
- Storage Elevation : 0 ft to 50000 ft (0 to 15000 m)
- Storage Relative Humidity : 0% to 95% non-condensing
- Storage Temperature : -4 °F to 113 °F (-20 °C to 45 °C)
Brand Name
CyberPower
Certifications & Standards
- UL 1778 5th Ed.
- CSA C22.2 NO.107.3-05
Compatibility
CyberPower UPS:
- OL3000RTXL2UHV
- OL5KRTHD
- OL6KRT
- OL6000RT3UPDU
- OL6KRT3UHW
- OL6KRTHD
- OL6KRTHW
- OL6KRTMB
- OL8000RT3U
- OL8000RT3UPDU
- OL8KRT3UHW
- OL8KRTHW
- OL8KRTMB
- OL10000RT3U
- OL10000RT3UPDU
- OL10KRT3HW
- OL10KRTHW
- OL10KRTMB
Country of origin
China
Depth
24"
Energy Star
No
Environmental Certification
RoHS
Environmentally Friendly
Yes
Form factor
Tower/Rack Mountable
Height
3.5"
Input voltage
230 V AC
Limited Warranty
3 Year
Manufacturer
CyberPower Systems Inc
Manufacturer Part Number
OL6KSTF
Manufacturer Website Address
http://www.cyberpowersystems.com
Marketing Information
The CyberPower Smart App Online OL6KSTF rack/tower step-down isolation transformer converts 200 V to 240 V input voltage originating from utility power a UPS or a generator to 120 V output.
The OL6KSTF has a capacity of 6000 VA / 6000 Watts. It features six (6) NEMA 5-20R receptacles that can support output to NEMA 5-15P and 5-20P plug power cords. A hardwire output terminal block provides a means to connect to an electrical subpanel.
The included 6-foot cord (NEMA L6-30P plug to ROJ) connects the OL6KSTF to input power. Over temperature protection safeguards your OL6KSTF from damage if the internal heat exceeds safe operating parameters.
A Three-Year Warranty ensures that this extended battery module has passed our highest quality standards in design assembly material or workmanship.
Maximum Line Current
30 A
Output voltage
208 V AC
Output voltage
120 V AC
Package Contents
- OL6KSTF Isolation/Step-Down Transformer
- 6ft NEMA L6-30 Locking Male Plug to 3-wire ROJ (Remove Outer Jacket) Power Cable (L630PHW6FT)
- 2 x Terminal Block Cable glands
- Left & Right Rackmount Rails
- Left & Right Hanging Brackets
- Input/Output Terminal Block Cover
- Quick Start Guide
- Registration Card
- 2U Rack Mount Ears (Tower Stands)
- Tower Installation Tie Plate
- 8 x M5X7L Black Flat Head Screws
- 12 x M5X12L Black Pan an Head Screws
- 6 x M5X6L silver pan head Screws
- 8 x Plastic Washers
- 12 x Screw Hole Dust Covers
- 12 x Rubber Pads
- Safety Instruction Card
Power Rating
6000 VA
Product color
Black
Product Name
Smart App Online OL6KSTF Isolation/Step-Down Transformer
Product Series
UPS Hardware
Product Type
Isolation/Step-Down Transformer
Rack Height
2U
Shipping Weight (Approximate)
128.20 lb
Weight (Approximate)
95.50 lb
Width
17.1"
