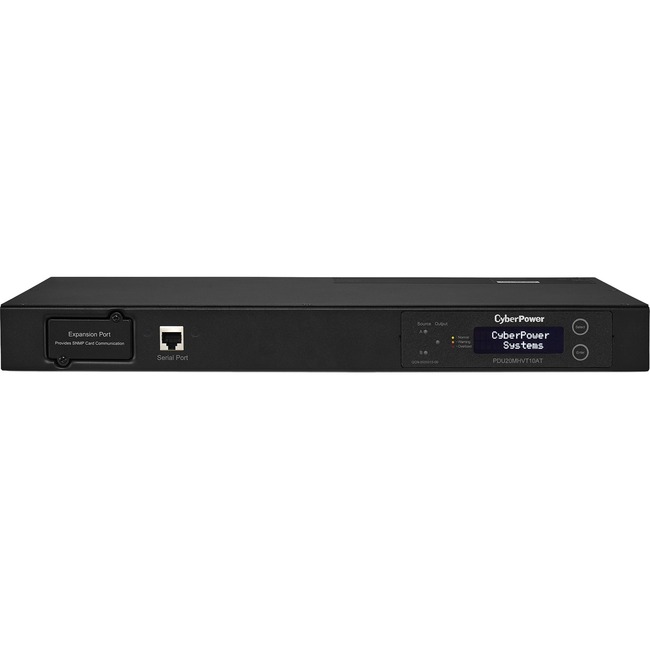

CyberPower PDU20MHVT10AT 200 - 240 VAC 20A Metered ATS PDU
CyberPower PDU20MHVT10AT 200 - 240 VAC 20A Metered ATS PDU - 10 Outlets, 10 ft, 2 x NEMA L6-20P, Horizontal, 1U, LCD, 3YR Warranty
| $401.30 | Retail $454.95 |
- 200V - 240V 20A ATS PDU with 8 IEC-320 C13 Outlets and 2 IEC-320 C19 Outlets. Dual NEMA L6-20P Input Plugs for Redundancy
- Metered Automatic Transfer Switching (ATS) to provide a redundant input power option
- Digital Display (Load, Voltage, and KW) for on-site monitoring of total PDU load
- SNMP/HTTP option slot for real-time monitoring and event logging of the ATS PDU. RMCARD202 & RMCARD203 sold separately.
- 1U Rugged, industrial-grade metal housing.
By:
CyberPower
Manufacturer:
CyberPower Systems, Inc
Product ID:
64554
Item:
PDU20MHVT10AT
UPC Code:
649532610860
Our Part #
9GM258
Condition
New
$401.30EA
$454.95
$454.95
Availability
Only 3 Left In Stock
You may be also interested
Product description
CyberPower PDU20MHVT10AT 200 - 240 VAC 20A Metered ATS PDU - 10 Outlets, 10 ft, 2 x NEMA L6-20P, Horizontal, 1U, LCD, 3YR Warranty
10 Outlets, 10 ft, 2 x NEMA L6-20P, Horizontal, 1U, LCD, 3YR Warranty
Specifications
Mounting Orientation
Horizontal
Number of Cord/Cable
2
Plug/Connector Detail
2 x NEMA L6-20P
Receptacle Detail
2 x IEC 60320 C19
Receptacle Detail
8 x IEC 60320 C13
UPC Alternates
649532610860
Brand Name
CyberPower
Certifications & Standards
- UL60950-1 Certified by ETL (USA)
- CSA C22.2(Canada)
- FCC Class A
Compatibility
- Data Centers
- Servers
- Network Devices
- Telecom Equipment
- PR5000LCDRTXL5U
- PR6000LCDRTXL5U
- OL6000RT3U
- OL6000RT3UTF
- OL8000RT3UTF
- OL10000RT3UTF
Cord Length
10 ft
Country of origin
China
Depth
9.3"
Environmental Certification
RoHS
Environmentally Friendly
Yes
Height
1.8"
Input current
20 A
Input voltage
230 V AC
Limited Warranty
3 Year
Management
- HTTP
- TCP/IP
- UDP
- DHCP
- SNMP
- SNMPv3
- IPv4
- IPv6
- NTP
- SMTP
Manufacturer
CyberPower Systems Inc
Manufacturer Part Number
PDU20MHVT10AT
Manufacturer Website Address
http://www.cyberpowersystems.com
Marketing Information
The CyberPower PDU20MHVT10AT a 10-outlet 1U rack mount metered auto transfer switch (ATS) PDU provides 200-240V / 20A output. The PDU distributes power to 10 IEC-320 8-C13 / 2-C14 receptacles from redundant L5-20P plugs. Dual power cords can be plugged into separate power sources to provide redundancy to single-corded equipment. If there is a power failure or an under/over voltage the PDU will switch to the secondary power source to insure continuous operation.
The LCD provides local monitoring of the PDU. Electrical current is displayed in amps and the LCD can be toggled to display input/output voltage power usage (kW) and hardware/LCD firmware versions.
The PDU20MHVT10AT includes a SNMP/HTTP card slot for adding an RMCARD202/RMCARD203 (sold separately).
The unit has a rugged industrial-grade metal housing and a 10-foot AC power cord. It can be mounted horizontally includes a cord retention tray and is UL60950_1 & FCC Class A certified. A three-year warranty is standard.
The LCD provides local monitoring of the PDU. Electrical current is displayed in amps and the LCD can be toggled to display input/output voltage power usage (kW) and hardware/LCD firmware versions.
The PDU20MHVT10AT includes a SNMP/HTTP card slot for adding an RMCARD202/RMCARD203 (sold separately).
The unit has a rugged industrial-grade metal housing and a 10-foot AC power cord. It can be mounted horizontally includes a cord retention tray and is UL60950_1 & FCC Class A certified. A three-year warranty is standard.
Mount Type
Rack-mountable
Package Contents
- PDU20MHVT10AT Metered ATS PDU 200-240V 20A 1U 10-Outlets (2) L6-20
- Mounting Brackets (1 Set)
- Cord Retention Tray
- Cord Organizers
- User Manual
Plug/Connector Type
NEMA L6-20P
Product Name
PDU20MHVT10AT Metered ATS PDU 200-240V 20A 1U 10-Outlets (2) L6-20P
Product Series
Metered ATS PDU
Product Type
PDU
Protection Type
Over Voltage
Protection Type
Under Voltage Protection
Rack Height
1U
Receptacle Type
IEC 60320 C19
Receptacle Type
IEC 60320 C13
Weight (Approximate)
11.46 lb
Width
17.1"
