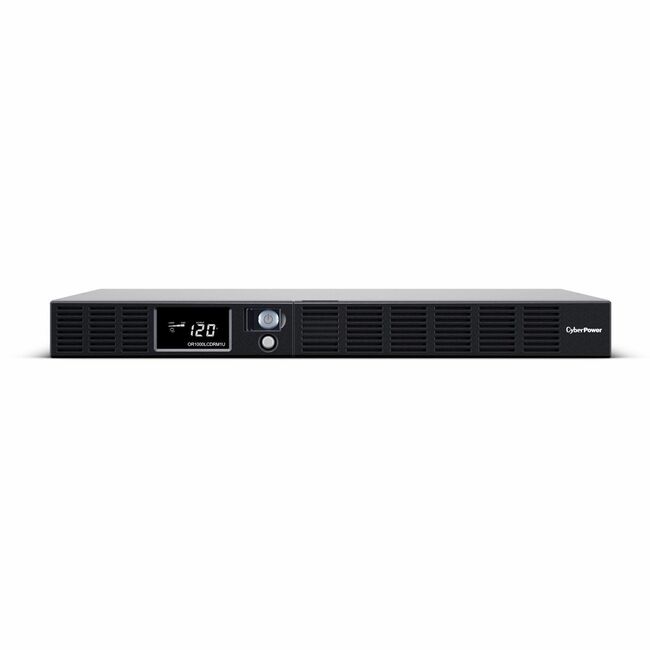

CyberPower OR1000LCDRM1U Smart App LCD UPS Systems
CyberPower OR1000LCDRM1U Smart App LCD UPS Systems - 1000VA/600W, 120 VAC, NEMA 5-15P, 1U, Rackmount, 6 Outlets, LCD, PowerPanel® Business, $300000 CEG, 3YR Warranty
| $488.25 | Retail $524.95 |
- Capacity: 1000 VA / 600 W
- Topology: Line Interactive
- Waveform: Simulated Sine Wave
- Output: 120 VAC ± 10%
- Plug type & cord: NEMA 5-15P, 10 ft. cord
- Outlet types: 6 � NEMA 5-15R
- Communication: USB, Relay, SNMP
- Management software: PowerPanel® Business
- Remote management: Yes, with optional RMCARD205
- Warranty: 3 year
By:
CyberPower
Manufacturer:
CyberPower Systems, Inc
Product ID:
64814
Item:
OR1000LCDRM1U
UPC Code:
818238999313
Our Part #
9GM237
Condition
New
$488.25EA
$524.95
$524.95
Availability
Only 63 Left In Stock
Product description
CyberPower OR1000LCDRM1U Smart App LCD UPS Systems - 1000VA/600W, 120 VAC, NEMA 5-15P, 1U, Rackmount, 6 Outlets, LCD, PowerPanel® Business, $300000 CEG, 3YR Warranty
1000VA/600W, 120 VAC, NEMA 5-15P, 1U, Rackmount, 6 Outlets, LCD, PowerPanel® Business, $300000 CEG, 3YR Warranty
Specifications
Directly Connected Equipment Guarantee
$300000Lifetime
Energy Saving
GreenPower UPS™ Bypass Technology
Maximum Operating Elevation
10000 ft
Maximum Storage Elevation
50000 ft
Number of Surge-only Outlets
2
Output Frequency
60 Hz
Overload Protection
Yes
Receptacle Detail
6 x NEMA 5-15R
Storage Temperature
5°F (-15°C) - 113°F (45°C)
UPC Alternates
649532715053 803931039152 818238999313 818242554447
Waveform Type
Simulated Sine Wave
Additional Information
- Replacement Battery Cartridge Quantity | 1
- Adjustable Voltage Range | 88 - 144 VAC
- Circuit Breaker | 15A
- Plug Style | Straight
- Automatic Voltage Regulation | Single Boost
- Network Protection RJ45 | 1-in / 1-Out (10/100/1000)
- LCD | Multifunction LCD
- Management Cable | USB Cable
- Serial Port | 1 Dry Contact
- SNMP / HTTP Remote Monitoring | Yes - with optional RMCARD205
- Material of Construction | Metal
- Operating Relative Humidity | 0 - 95 % (non-condensing)
- Storage Relative Humidity | 0 - 95% (non-condensing)
Alarm
Battery Mode
Alarm
UPS Fault
Alarm
Low Battery
Alarm
Overload
Application/Usage
Workstation
Application/Usage
Telecommunication
Application/Usage
Server
Application/Usage
Network Device
Backup/Run Time (Full Load)
3 Minute
Backup/Run Time (Half Load)
13 Minute
Battery capacity
7000 mAh
Battery Characteristics
Maintenance-free
Battery Chemistry
Sealed Lead Acid (SLA)
Battery Size
6V
Brand Name
CyberPower
Certifications & Standards
- FCC Class B certified
- cUL
- UL 1778
Country of origin
China
Dataline Protection
RJ-45
Depth
15.6"
Environmental Certification
RoHS
Form factor
Rack-mountable
Height
1.8"
Input frequency
63 Hz
Input voltage
120 V AC
Input Voltage Range
90 V AC - 140 V AC
Limited Warranty
3 Year
Load Capacity
1000 VA
Manufacturer
CyberPower Systems Inc
Manufacturer Part Number
OR1000LCDRM1U
Manufacturer Website Address
http://www.cyberpowersystems.com
Marketing Information
A rackmount UPS with line interactive topology the CyberPower Smart App LCD OR1000LCDRM1U provides battery backup (using simulated sine wave output) and surge protection for department servers workgroup servers workstations network devices and telecom installations without active PFC power supplies. The OR1000LCDRM1U uses Automatic Voltage Regulation (AVR) to correct minor power fluctuations without switching to battery power which extends battery life. AVR is essential in areas where power fluctuations occur frequently.
This model accepts the RMCARD205 network management card for remote management and control via a standard web browser or network management system. The OR1000LCDRM1U comes with a three-year warranty and a $300000 Connected Equipment Guarantee.
Maximum Operating Temperature
95°F (35°C)
Network Management
SNMP Manageable
Number of Batteries
4
Package Contents
- Smart App Intelligent LCD OR1000LCDRM1U 1000VA UPS
- User's Manual
- Rackmount Brackets
- USB A+B Type Cable
Plug/Connector Type
NEMA 5-15P
Product color
Black
Product Name
Smart App LCD OR1000LCDRM1U 1000VA Rack-mountable UPS
Product Series
Smart App LCD UPS
Product Type
Line-interactive UPS
Protection Type
Dataline Surge
Protection Type
Black Out
Protection Type
AC Surge
Protection Type
Sag
Protection Type
EMI / RFI
Rack Height
1U
Receptacle Type
NEMA 5-15R
Software Included
PowerPanel Business Edition Software
Status Indicators
On Unit:
- Power On
- Wiring Fault
LCD Panel:
- Input Voltage
- Output Voltage
- Battery Capacity
- Load Level
- Runtime
- On Battery
- Overload
- Silent Mode
Surge energy rating
1150 J
Transfer Time
8 ms
Typical Battery Recharge Time
8 Hour
Weight (Approximate)
29.70 lb
Width
17.1"
