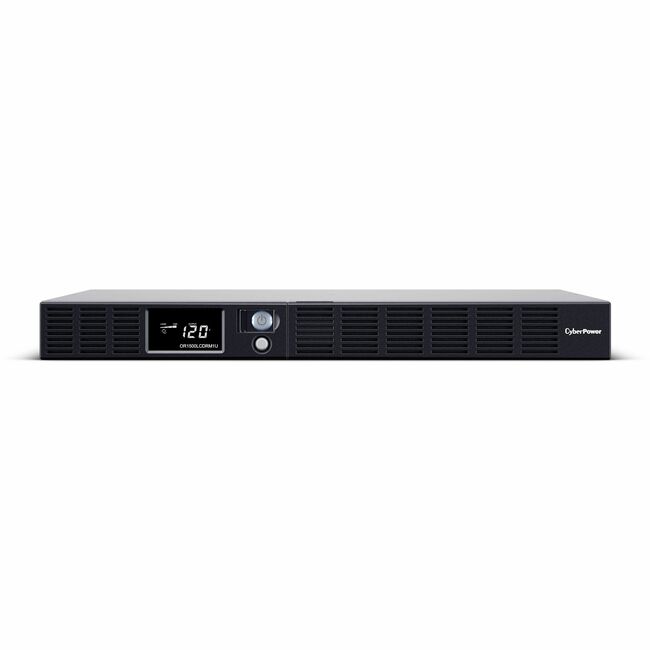

CyberPower OR1500LCDRM1U Smart App LCD UPS Systems
CyberPower OR1500LCDRM1U Smart App LCD UPS Systems - 1500VA/900W, 120 VAC, NEMA 5-15P, 1U, Rackmount, 6 Outlets, LCD, PowerPanel® Business, $300000 CEG, 3YR Warranty
| $591.03 | Retail $624.95 |
- Capacity: 1500 VA / 900 W
- Topology: Line Interactive
- Waveform: Simulated Sine Wave
- Plug type & cord: NEMA 5-15P, 10 ft. cord
- Outlet types: 6 � NEMA 5-15R
- Communication: USB, Relay, SNMP
- Management software: PowerPanel® Business
- Remote management: Yes, with optional RMCARD205
- Warranty: 3 year
By:
CyberPower
Manufacturer:
CyberPower Systems, Inc
Product ID:
64916
Item:
OR1500LCDRM1U
UPC Code:
092671854235
Our Part #
9GM167
Condition
New
$591.03EA
$624.95
$624.95
Availability
Only 111 Left In Stock
Product description
CyberPower OR1500LCDRM1U Smart App LCD UPS Systems - 1500VA/900W, 120 VAC, NEMA 5-15P, 1U, Rackmount, 6 Outlets, LCD, PowerPanel® Business, $300000 CEG, 3YR Warranty
1500VA/900W, 120 VAC, NEMA 5-15P, 1U, Rackmount, 6 Outlets, LCD, PowerPanel® Business, $300000 CEG, 3YR Warranty
Specifications
DC System Voltage
6 V DC
Directly Connected Equipment Guarantee
$300000Lifetime
Energy Saving
GreenPower UPS™ Bypass Design
Maximum Operating Elevation
10000 ft
Maximum Storage Elevation
50000 ft
Number of Surge-only Outlets
2
Output Frequency
60 Hz
Overload Protection
Yes
Receptacle Detail
6 x NEMA 5-15R
Storage Temperature
5°F (-15°C) - 113°F (45°C)
UPC Alternates
092671854235 649532715060 818242335473
Waveform Type
Simulated Sine Wave
Additional Information
- Replacement Battery Cartridge Quantity | 1
- Adjustable Voltage Range | 88 - 144 VAC
- Circuit Breaker | 15A
- Plug Style | Straight
- Automatic Voltage Regulation | Single Boost
- Overload Protection | Internal Circuitry Limiting
- LCD | Multifunction LCD
- Management Cable | USB Cable
- Serial Port | 1 Dry Contact
- SNMP / HTTP Remote Monitoring | Yes - with optional RMCARD205
- Material of Construction | Metal
- Operating Relative Humidity | 0 - 95 % (non-condensing)
- Operating Temperature | 32 - 104 °F (0 - 40 °C)
- Storage Relative Humidity | 0 - 95% (non-condensing)
Alarm
Battery Mode
Backup/Run Time (Full Load)
2 Minute
Backup/Run Time (Half Load)
11 Minute
Battery capacity
9000 mAh
Battery Chemistry
Lead Acid
Battery Chemistry
Sealed Lead Acid (SLA)
Battery Size
6V
Brand Name
CyberPower
Certifications & Standards
- UL1778
- cUL 107.1
- FCC DOC Class B
Dataline Protection
RJ-45
Dataline Protection
RJ-11
Depth
15.6"
Environmental Certification
RoHS
Form factor
Rack-mountable
Height
1.8"
Input frequency
63 Hz
Input voltage
120 V AC
Input Voltage Range
90 V AC - 140 V AC
Limited Warranty
3 Year
Load Capacity
1500 VA
Manufacturer
CyberPower Systems Inc
Manufacturer Part Number
OR1500LCDRM1U
Manufacturer Website Address
http://www.cyberpowersystems.com
Marketing Information
A rackmount UPS with line interactive topology the CyberPower Smart App LCD OR1500LCDRM1U provides battery backup (using simulated sine wave output) and surge protection for department servers workgroup servers workstations network devices and telecom installations without active PFC power supplies. The OR1500LCDRM1U uses Automatic Voltage Regulation (AVR) to correct minor power fluctuations without switching to battery power which extends battery life. AVR is essential in areas where power fluctuations occur frequently.
This model accepts the RMCARD205 network management card for remote management and control via a standard web browser or network management system. The OR1500LCDRM1U comes with a three-year warranty and a $300000 Connected Equipment Guarantee.
Maximum Operating Temperature
104°F (40°C)
Network Management
SNMP Manageable
Number of Batteries
4
Plug/Connector Type
NEMA 5-15P
Product Name
Smart App OR1500LCDRM1U 1500VA UPS
Product Series
Smart App LCD UPS
Product Type
Line-interactive UPS
Rack Height
1U
Receptacle Type
NEMA 5-15R
Software Included
PowerPanel® Business
Status Indicators
- Power On
- Multifunction LCD
Surge energy rating
1150 J
Transfer Time
8 ms
Typical Battery Recharge Time
8 Hour
Weight (Approximate)
33 lb
Width
17.1"
