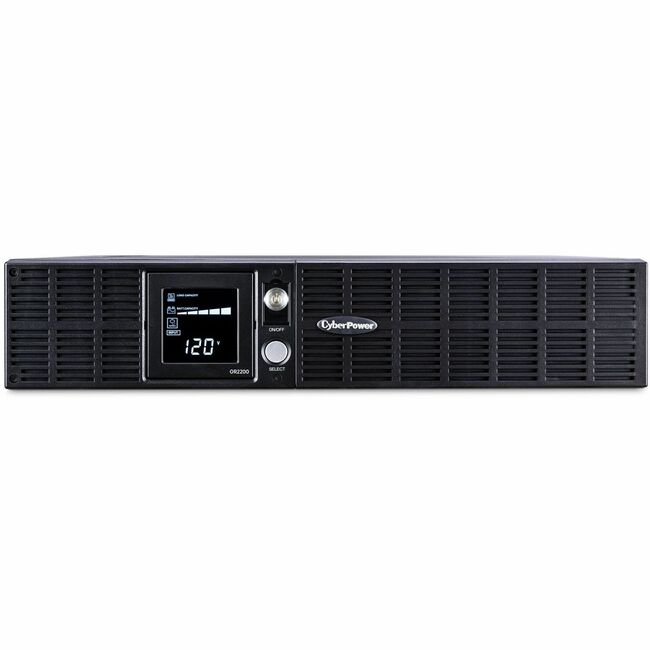

CyberPower OR2200LCDRT2U Smart App LCD UPS Systems
CyberPower OR2200LCDRT2U Smart App LCD UPS Systems - 2000VA/1320W, 120 VAC, NEMA 5-20P, 2U, Rack / Tower, 8 Outlets, LCD, PowerPanel® Business, $300000 CEG, 3YR Warranty
| $646.67 | Retail $694.95 |
- Capacity: 2000 VA / 1320 W
- Topology: Line Interactive
- Waveform: Simulated Sine Wave
- Output: 120 VAC ± 10%
- Plug type & cord: NEMA 5-20P (right angle), 10 ft. cord
- Outlet types: 8 � NEMA 5-20R
- Communication: USB, Serial, SNMP
- Management software: PowerPanel® Business
- Remote management: Yes, with optional RMCARD205
- ENERGY STAR® certified: Yes
By:
CyberPower
Manufacturer:
CyberPower Systems, Inc
Product ID:
64969
Item:
OR2200LCDRT2U
UPC Code:
818242525195
Our Part #
9GM156
Condition
New
$646.67EA
$694.95
$694.95
Availability
Only 48 Left In Stock
You may be also interested
Product description
CyberPower OR2200LCDRT2U Smart App LCD UPS Systems - 2000VA/1320W, 120 VAC, NEMA 5-20P, 2U, Rack / Tower, 8 Outlets, LCD, PowerPanel® Business, $300000 CEG, 3YR Warranty
2000VA/1320W, 120 VAC, NEMA 5-20P, 2U, Rack / Tower, 8 Outlets, LCD, PowerPanel® Business, $300000 CEG, 3YR Warranty
Specifications
Directly Connected Equipment Guarantee
$300000Lifetime
Energy Saving
GreenPower UPS™ Bypass Technology
Number of Battery & Surge Outlets
8
Overload Protection
Yes
Receptacle Detail
8 x NEMA 5-20R
Storage Temperature
5°F (-15°C) - 113°F (45°C)
UPC Alternates
012300074797 095507884857 649532610037 695975107542 818242525195
Waveform Type
Simulated Sine Wave
Additional Information
- Replacement Battery Cartridge Quantity: 1
- Circuit Breaker: 20 A
- Plug Style: Right Angle - 45° Offset
- Automatic Voltage Regulation: Single Boost
- On Battery Frequency: 50/60 Hz ± 1%
- Output Power Factor: 0.7
- Overload Protection: Internal Circuitry Limiting
- USB Charge Port: No
- USB Charge Port Amperage COMPUTED: None
- Phone / Network Protection RJ11/RJ45: 1-In / 1-Out (Combo)
- Management Cable: USB Cable
- Serial Port: 1 Serial
- Software (Free Download): PowerPanel® Business
- Form Factor: Rack / Tower
- Material of Construction: Metal
- Operating Relative Humidity: 0 - 95 % (non-condensing)
- Operating Temperature: 32 - 104 °F (0 - 40 °C)
Alarm
Battery Mode
Backup/Run Time (Full Load)
5 Minute
Backup/Run Time (Half Load)
13 Minute
Battery capacity
9000 mAh
Battery Chemistry
Sealed Lead Acid (SLA)
Battery Size
12V
Brand Name
CyberPower
Certifications & Standards
- UL1778
- cUL 107.1
- FCC DOC Class B
- CSAC22.2
Country of origin
China
Dataline Protection
RJ-45
Dataline Protection
RJ-11
Depth
15.8"
Environmental Certification
RoHS
Form factor
Rack/Tower
Height
3.5"
Input frequency
63 Hz
Input voltage
120 V AC
Limited Warranty
3 Year
Load Capacity
2000 VA
Manufacturer
CyberPower Systems Inc
Manufacturer Part Number
OR2200LCDRT2U
Manufacturer Website Address
http://www.cyberpowersystems.com
Marketing Information
A rack/tower convertible UPS with line interactive topology the CyberPower Smart App LCD OR2200LCDRT2U provides battery backup (using simulated sine wave output) and surge protection for office servers corporate and department networks workgroup servers workstations network devices and telecom installations without active PFC power supplies. The OR2200LCDRT2U uses Automatic Voltage Regulation (AVR) to correct minor power fluctuations without switching to battery power which extends battery life. AVR is essential in areas where power fluctuations occur frequently. The OR2200LCDRT2U comes with a three-year warranty and a $300000 Connected Equipment Guarantee.
Maximum Operating Temperature
104°F (40°C)
Network Management
SNMP Manageable
Number of Batteries
4
Package Contents
- Smart App Intelligent LCD OR2200LCDRT2U 2200VA UPS LCD RT
- PowerPanel Business Edition Software
- User Manual
- USB Cable
- Serial Cable
- Registration Card
Plug/Connector Type
NEMA 5-20P
Product color
Black
Product Name
Smart App Intelligent LCD OR2200LCDRT2U 2200VA UPS LCD RT
Product Series
Smart App LCD UPS
Product Type
Line-interactive UPS
Protection Type
Surge
Protection Type
EMI / RFI
Rack Height
2U
Receptacle Type
NEMA 5-20R
Software Included
PowerPanel Business Edition UPS Management
Status Indicators
LCD : Multifunction LCD
Surge energy rating
1840 J
Transfer Time
10 ms
Typical Battery Recharge Time
8 Hour
Weight (Approximate)
52.70 lb
Width
17.3"
