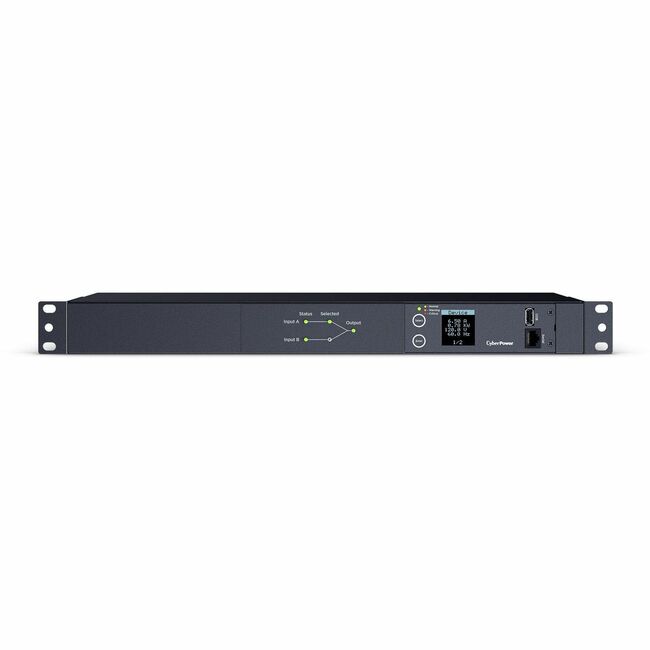

CyberPower Switched ATS PDU PDU24001 10-Outlets PDU
CyberPower Switched ATS PDU PDU24001 10-Outlets PDU - Metered - NEMA 5-15P - 10 x NEMA 5-15R - 120 V AC - Network (RJ-45) - 1U - Horizontal - Rack-mountable
| $378.78 | Retail $480.00 |
- Phase: Single
- Amps: 15A (Derated to 12A)
- Volts: 100-120V
- Frequency: 50/60Hz
- Plug type: 2 x NEMA 5-15P
- Outlets: 10 x NEMA 5-15R
- Size: 1U Rackmount
- Warranty: 3 year
By:
CyberPower
Manufacturer:
CyberPower Systems, Inc
Product ID:
65137
Item:
PDU24001
UPC Code:
649532933891
Our Part #
01FL35
Condition
New
$378.78EA
$480.00
$480.00
Availability
Currently out of stock
Product description
CyberPower Switched ATS PDU PDU24001 10-Outlets PDU - Metered - NEMA 5-15P - 10 x NEMA 5-15R - 120 V AC - Network (RJ-45) - 1U - Horizontal - Rack-mountable
Metered - NEMA 5-15P - 10 x NEMA 5-15R - 120 V AC - Network (RJ-45) - 1U - Horizontal - Rack-mountable
Specifications
Mounting Orientation
Horizontal
PDU Type
Metered
Phase
Single Phase
Plug/Connector Detail
2 x NEMA 5-15P
Receptacle Detail
10 x NEMA 5-15R
UPC Alternates
649532933891
Additional Information
- Cord Length :10 ft (3.0 m)
- Derated Input Current :12 A
- Input Frequency Range :50 Hz - 60 Hz
- Phase :Single Phase
- Plug Style :Straight
- Nominal Output Voltage :100 - 120 VAC
- Outlet Banks :1
- Outlets - Total :10
- Overload Protection :None
- Power Source Transfer Time :2-7 ms
- Source Failure Detection Time :2-3 ms
- Total Transfer Time :<10 ms
- Hardware Connection Port :Serial (RJ45)
- LCD :Multifunction LCD
- LED Indicators :Source Status
- Upgradeable firmware :Yes
- Retention Tray/Cord Organizers :Yes
- External Site Ground Pin :Yes
- Form Factors Supported :1U Rackmount
- Material of Construction :Metal
- Operating Elevation :0 - 13123 ft (0 - 4000 m)
- Operating Relative Humidity :0 - 95 % (non-condensing)
- Operating Temperature :32 - 113 °F (0 - 45 °C)
- Storage Elevation :0 - 49213 ft (0 - 14999 m)
- Storage Temperature :5 - 131 °F (-15 - 55 °C)
- Safety :UL62368 :FCC Class A :cTUVus
Brand Name
CyberPower
Country of origin
China
Depth
8.5"
Design
Modular
Environmental Certification
RoHS
Environmentally Friendly
Yes
Height
1.8"
Input current
15 A
Input voltage
120 V AC
Input Voltage Range
100 V AC - 120 V AC
Limited Warranty
3 Year
Manufacturer
CyberPower Systems Inc
Manufacturer Part Number
PDU24001
Manufacturer Website Address
http://www.cyberpowersystems.com
Marketing Information
Ensure continued operation of critical devices with the CyberPower PDU24001 Metered ATS PDU. Ideal for data centers and network closets this unit provides power redundancy to single-corded connected equipment. If power for the primary source exceeds the lower or upper thresholds or if power fails the PDU will switch to the secondary power source to ensure continuous operation. The PDU will switch back to the primary power source when incoming power becomes stable.
The PDU24001 supports inputs between 100-120V and includes (10) NEMA 5-15R outlets. Dual NEMA 5-15P power cords are plugged into separate power sources (A and B) and information about each power source is provided via LED indicator lights on the front of the unit. Other features include an LCD with selectable background color ugradeable firmware and network-grade plugs and outlets. The CyberPower PDU24001 is protected by a three-year limited warranty.
Mount Type
Rack-mountable
Plug/Connector Type
NEMA 5-15P
Product color
Black
Product Name
Switched ATS PDU PDU24001 10-Outlets PDU
Product Series
Switched ATS PDU
Product Series
Metered ATS PDU
Product Type
PDU
Rack Height
1U
Receptacle Type
NEMA 5-15R
Weight (Approximate)
9.59 lb
Width
17.1"
