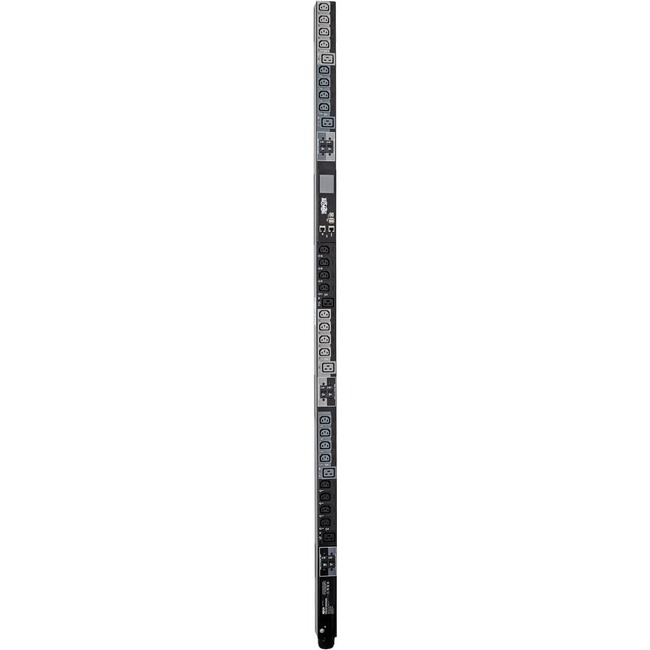

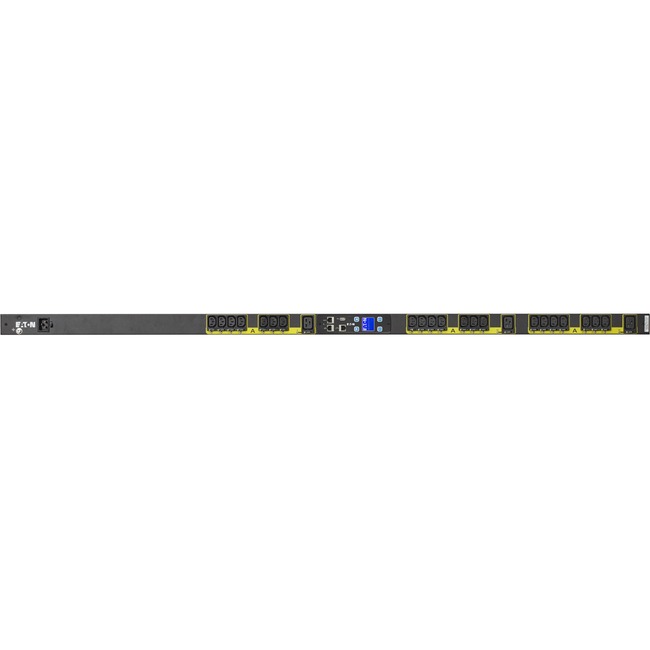

Eaton ePDU G3 Managed 36U-A IN: L6-20P/C20 16A 1P OUT: 21xC13:3xC19
Eaton ePDU G3 Managed 36U-A IN: L6-20P/C20 16A 1P OUT: 21xC13:3xC19 - Switched - NEMA L6-20P, IEC 60320 C20 - 3 x IEC 60320 C19, 21 x IEC 60320 C13 - 120 V AC, 230 V AC - 3840 W - Network (RJ-45) - 36U - Vertical - Rack-mountable
| $1,267.72 | Retail $1,367.00 |
- Enables on/off/reboot capabilities for a single piece of equipment with outlet-level control
- Measures outlet-level power consumption and delivers Level 3 PUE to increase accuracy and precision of energy analysis
- Single-phase and three-phase configurations provide solutions for SMB and networking closets, blade server applications, and colocation and large data centers
- Manages entire environment remotely over the network from a single interface
- ePDU G3 Managed provides ±1% billing grade accuracy, an advanced LCD pixel display, a hot-swap meter, IEC grip outlets, color-coded circuits and the ability to daisy chain four ePDUs to share the same network connection and IP address
- Cisco EnergyWise Certified- Eaton's new ePDUs are Cisco EnergyWise Certified
By:
Eaton
Manufacturer:
Eaton Corporation
Product ID:
67395
Item:
EMA115-10
UPC Code:
743172079183
Our Part #
2H7182
Condition
New
$1,267.72EA
$1,367.00
$1,367.00
Availability
Only 10 Left In Stock
Product description
Eaton ePDU G3 Managed 36U-A IN: L6-20P/C20 16A 1P OUT: 21xC13:3xC19 - Switched - NEMA L6-20P, IEC 60320 C20 - 3 x IEC 60320 C19, 21 x IEC 60320 C13 - 120 V AC, 230 V AC - 3840 W - Network (RJ-45) - 36U - Vertical - Rack-mountable
Switched - NEMA L6-20P, IEC 60320 C20 - 3 x IEC 60320 C19, 21 x IEC 60320 C13 - 120 V AC, 230 V AC - 3840 W - Network (RJ-45) - 36U - Vertical - Rack-mountable
Specifications
Mounting Orientation
Vertical
Network (RJ-45)
Yes
PDU Type
Switched
Plug/Connector Detail
1 x IEC 60320 C20
Plug/Connector Detail
1 x NEMA L6-20P
Power Rating (Watt)
3840 W
Receptacle Detail
21 x IEC 60320 C13
Receptacle Detail
3 x IEC 60320 C19
UPC Alternates
743172079183
Brand Name
Eaton
Country of origin
China
Height
63.1"
Input current
16 A
Input voltage
230 V AC
Input voltage
120 V AC
Input Voltage Range
120 V AC - 230 V AC
Manufacturer
Eaton Corporation
Manufacturer Part Number
EMA115-10
Manufacturer Website Address
http://www.eaton.com
Marketing Information
Eaton ePDU G3 Managed technology provides a best-in-class design featuring billing grade accuracy monitoring at the outlet level on a local LCD pixel display or over a network connection. The high accuracy meter will measure current voltage power and energy for load balancing capacity planning efficiency monitoring and energy usage reporting. Outlet switching allows for on off or reboot of individual outlets which reduces the cost of managing remote or local IT data center environments. The robust design is UL rated to operate at 140 degrees F (60 degrees C) ambient operating temperature for containment and high temperature environments.
- Outlet switching for on off and reboot control to reduce management costs
- Outlet level metering to +/- 1% billing grade accuracy for customer billing or level 3 PUE calculations
- LCD pixel display with hot-swap capability enables load balancing and local setup of key parameters such as IP address and display orientation
- High operating temperature (140 degrees F / 60 degrees C) for containment or hot network closet environments
- Daisy chain of IP addresses allows four devices to share one network connection to reduce network install costs by up to 75%
- IEC outlet grip plug retention secures plugs in place using standard cables
Mount Type
Rack-mountable
Package Contents
- ePDU Managed EMA115-10 24-Outlets PDU
- ePDU G3 Installation Spare Pack
- ePDU G3 Network Spare Part Pack
Plug/Connector Type
NEMA L6-20P
Plug/Connector Type
IEC 60320 C20
Product Family
ePDU Managed
Product Line
ePDU
Product Name
ePDU Managed EMA115-10 24-Outlets PDU
Product Series
Managed
Product Type
PDU
Rack Height
36U
Receptacle Type
IEC 60320 C13
Receptacle Type
IEC 60320 C19
Width
2.1"
