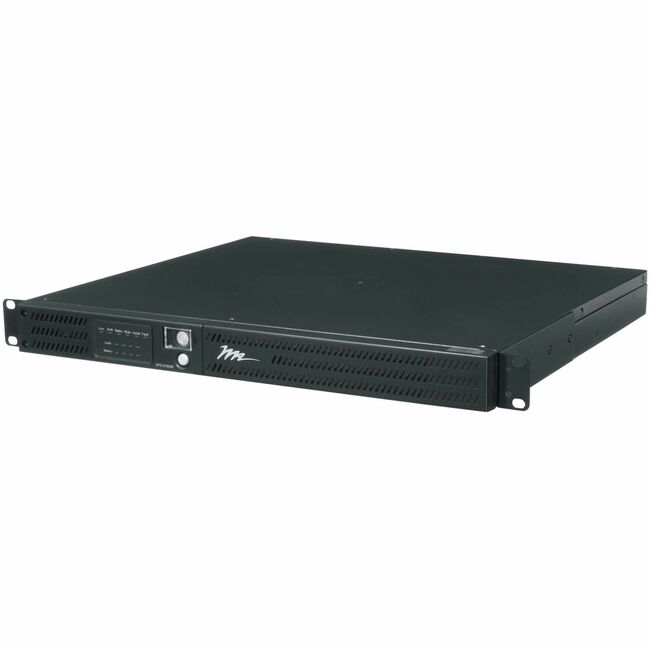

Middle Atlantic Select UPS-S1000R 1000VA Rack-mountable UPS
Middle Atlantic Select UPS-S1000R 1000VA Rack-mountable UPS - 1U Rack-mountable - AVR - 3 Minute Stand-by - 120 V AC Input - 120 V AC Output - 6 x NEMA 5-15R
| $785.78 | Retail $1,238.00 |
- Bank control of outlets for simple system reboot
- Simulated sine wave output waveform
- 8ms transfer time
- Automatic Voltage Regulation
- Non-critical load shedding
- Surge protection and EMI filtering
- LED status indicators
- Battery pack easily replaced via front panel
By:
Middle Atlantic
Manufacturer:
Legrand Group
Product ID:
67745
Item:
UPS-S1000R
UPC Code:
656747237188
Our Part #
39121011
Condition
New
$785.78EA
$1,238.00
$1,238.00
Availability
Currently out of stock
Product description
Middle Atlantic Select UPS-S1000R 1000VA Rack-mountable UPS - 1U Rack-mountable - AVR - 3 Minute Stand-by - 120 V AC Input - 120 V AC Output - 6 x NEMA 5-15R
1U Rack-mountable - AVR - 3 Minute Stand-by - 120 V AC Input - 120 V AC Output - 6 x NEMA 5-15R
Specifications
Load Capacity (VA)
1000 VA
Load Capacity (W)
600 W
Number of Critical Load Outlets
3
Operating Humidity
0% - 95%
Overload Protection
Yes
Receptacle Detail
6 x NEMA 5-15R
UPC Alternates
656747237188
Waveform Type
Simulated Sine Wave
Backup/Run Time (Full Load)
3 Minute
Backup/Run Time (Half Load)
13 Minute
Battery capacity
7000 mAh
Battery Size
6V
Brand Name
Middle Atlantic
Depth
15.3"
Environmental Certification
EU RoHS
Environmental Certification
GREENGUARD
Form factor
Rack-mountable
Height
1.7"
Input voltage
120 V AC
Input Voltage Range
90 V AC - 140 V AC
Limited Warranty
3 Year
Load Capacity
1000 VA/600 W
Manufacturer
Legrand Group
Manufacturer Part Number
UPS-S1000R
Manufacturer Website Address
http://www.legrand.us
Marketing Information
Select Series UPS models are available in compact form factors when space is at a premium and in a wide range of capacities to support a wide range of installations. All models are available with web-enabled IP control.
Maximum Operating Temperature
104°F (40°C)
Number of Batteries
4
Package Contents
- Select UPS-S1000R 1000VA Rack-mountable UPS
- 10' Power Cord
Plug/Connector Type
NEMA 5-15P
Product Line
Select
Product Name
Select UPS-S1000R 1000VA Rack-mountable UPS
Product Type
Standby UPS
Rack Height
1U
Receptacle Type
NEMA 5-15R
Surge energy rating
1030 J
Transfer Time
8 ms
Weight (Approximate)
32 lb
Width
19"
