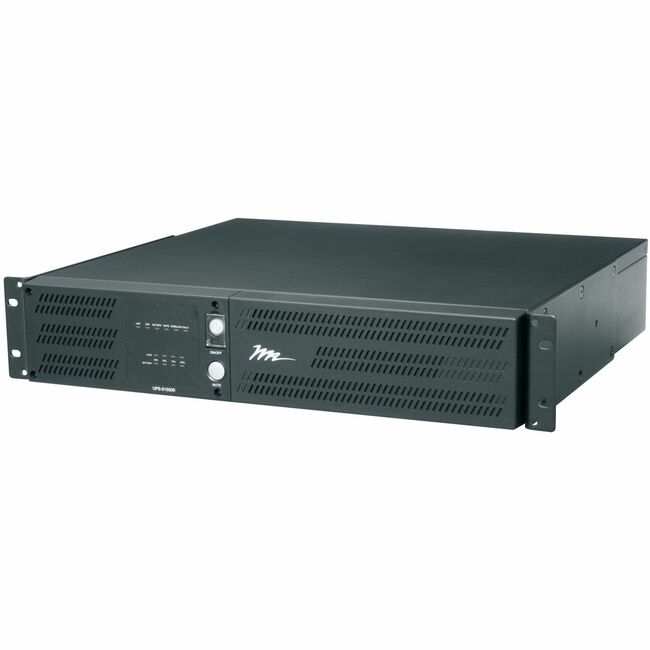

Middle Atlantic Select UPS-S2000R 2200VA Rack-mountable UPS
Middle Atlantic Select UPS-S2000R 2200VA Rack-mountable UPS - 2U Rack-mountable - AVR - 4 Minute Stand-by - 120 V AC Input - 120 V AC Output - 8 x NEMA 5-20R
| $1,088.29 | Retail $1,712.00 |
- Bank control of outlets for simple system reboot
- Simulated sine wave output waveform
- 8ms transfer time
- Automatic Voltage Regulation
- Non-critical load shedding
- Surge protection and EMI filtering
- LED status indicators
- Battery pack easily replaced via front panel
By:
Middle Atlantic
Manufacturer:
Legrand Group
Product ID:
68293
Item:
UPS-S2200R
Our Part #
39121011
Condition
New
$1,088.29EA
$1,712.00
$1,712.00
Availability
Currently out of stock
Product description
Middle Atlantic Select UPS-S2000R 2200VA Rack-mountable UPS - 2U Rack-mountable - AVR - 4 Minute Stand-by - 120 V AC Input - 120 V AC Output - 8 x NEMA 5-20R
2U Rack-mountable - AVR - 4 Minute Stand-by - 120 V AC Input - 120 V AC Output - 8 x NEMA 5-20R
Specifications
Load Capacity (VA)
2200 VA
Load Capacity (W)
1320 W
Operating Humidity
0% - 95%
Overload Protection
Yes
Receptacle Detail
8 x NEMA 5-20R
Waveform Type
Simulated Sine Wave
Backup/Run Time (Full Load)
4 Minute
Backup/Run Time (Half Load)
13 Minute
Battery capacity
9000 mAh
Battery Size
12V
Brand Name
Middle Atlantic
Depth
16.5"
Environmental Certification
GREENGUARD
Environmental Certification
EU RoHS
Form factor
Rack-mountable
Height
3.5"
Input voltage
120 V AC
Input Voltage Range
90 V AC - 140 V AC
Limited Warranty
3 Year
Load Capacity
2200 VA/1320 W
Manufacturer
Legrand Group
Manufacturer Part Number
UPS-S2200R
Manufacturer Website Address
http://www.legrand.us
Marketing Information
Select Series UPS models are available in compact form factors when space is at a premium and in a wide range of capacities to support a wide range of installations. All models are available with web-enabled IP control.
Maximum Operating Temperature
104°F (40°C)
Number of Batteries
4
Package Contents
- Select UPS-S2000R 2200VA Rack-mountable UPS
- 10' Power Cord
Plug/Connector Type
NEMA 5-20P
Product Line
Select
Product Model
UPS- S2000R
Product Name
Select UPS-S2000R 2200VA Rack-mountable UPS
Product Type
Standby UPS
Rack Height
2U
Receptacle Type
NEMA 5-20R
Surge energy rating
1840 J
Transfer Time
8 ms
Weight (Approximate)
52.70 lb
Width
19"
