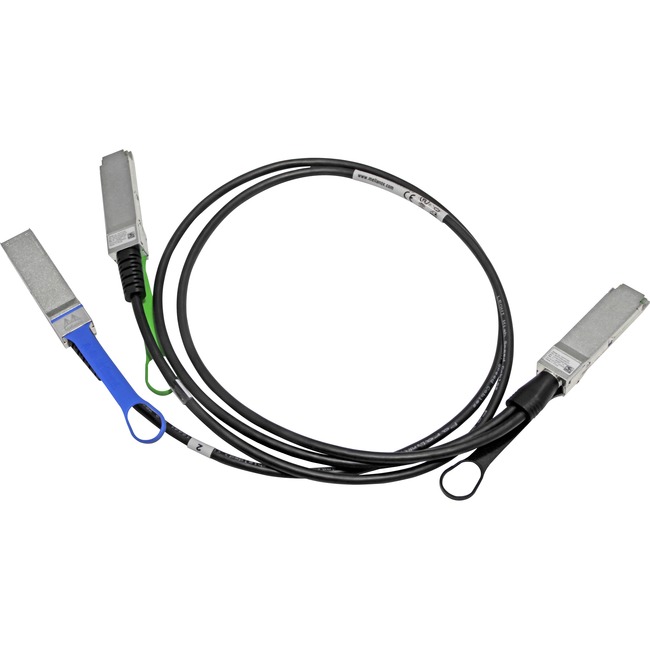

Mellanox LinkX QSFP56 Splitter Network Cable
Mellanox LinkX QSFP56 Splitter Network Cable - 3.28 ft QSFP56 Network Cable for Network Device - First End: 1 x QSFP56 Network - Second End: 2 x QSFP56 Network - 200 Gbit/s - Splitter Cable - 30 AWG
| $239.51 | Retail $384.00 |
- Experience a simpler way to connect devices with the entire business network
- Features QSFP56 cable type
- Features Passive
By:
Mellanox
Manufacturer:
Mellanox Technologies Ltd
Product ID:
68761
Item:
MCP7H50-H001R30
Our Part #
2GG314
Condition
New
$239.51EA
$384.00
$384.00
Availability
Only 19 Left In Stock
Product description
Mellanox LinkX QSFP56 Splitter Network Cable - 3.28 ft QSFP56 Network Cable for Network Device - First End: 1 x QSFP56 Network - Second End: 2 x QSFP56 Network - 200 Gbit/s - Splitter Cable - 30 AWG
3.28 ft QSFP56 Network Cable for Network Device - First End: 1 x QSFP56 Network - Second End: 2 x QSFP56 Network - 200 Gbit/s - Splitter Cable - 30 AWG
Specifications
American Wire Gauge
30 AWG
Brand Name
Mellanox
Cable Characteristic
Splitter Cable
Cable length
3.28 ft
Cable type
QSFP56
Connector on First End
1 x QSFP56 Network
Connector on First End
QSFP56 Network
Connector on Second End
QSFP56 - Network
Connector on Second End
2 x QSFP56 Network
Data transfer rate
200 Gbit/s
Device Supported
Network Device
Features
Passive
Features
Halogen Free
Features
Lead-free
Manufacturer
Mellanox Technologies Ltd
Manufacturer Part Number
MCP7H50-H001R30
Manufacturer Website Address
http://www.mellanox.com
Marketing Information
Mellanox® MCP7H50-H0xxRyy DAC splitter cables(1) are high-speed cost-effective alternatives to fiber optics in 200Gb/s InfiniBand HDR applications. MCP7H50-H0xxEyy cables provide connectivity between system units with a 200Gb/s HDR QSFP56 port on one side and two 100Gb/s HDR100 QSFP56 ports on the other side. The cable connects the data signals from each of the 2 dual copper pairs on the single QSFP56 (pair 1&2 3&4) end to the dual copper pair of each of the QSFP56 (pair 1&2) ends on the multi-port side. Each QSFP56 port comprises an EEPROM providing product information which can be read by the host system. Mellanox's unique quality passive copper cable solutions provide power-efficient connectivity for short distance interconnects. It enables higher port bandwidth density and configurability at a low cost and reduced power requirement in the data centers. Rigorous cable production testing ensures best out-of-the box installation experience performance and durability.
Product Line
LinkX
Product Name
LinkX QSFP56 Splitter Network Cable
Product Type
Network Cable
