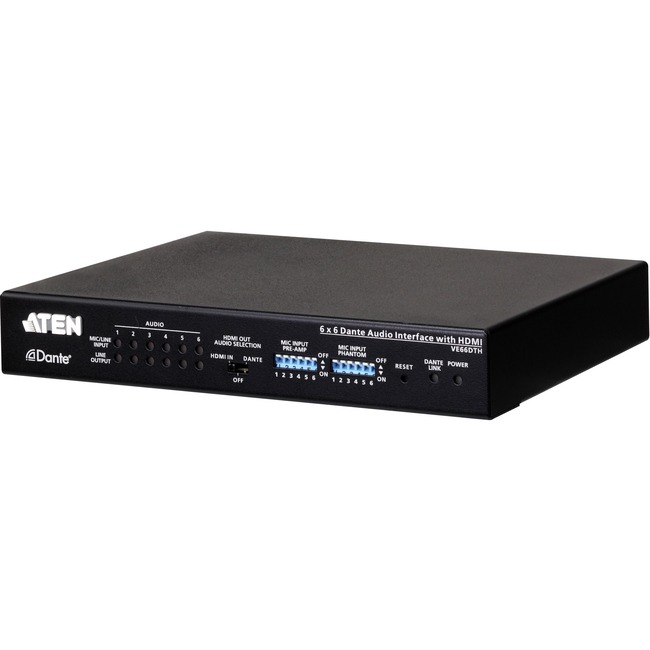

ATEN 6 x 6 Dante Audio Interface with HDMI
ATEN 6 x 6 Dante Audio Interface with HDMI - 6 Input Device - 6 Output Device - 1 x Network (RJ-45) - 1 x HDMI In - 1 x HDMI Out - 4K UHD - 4096 x 2160 - Twisted Pair
| $1,185.60 |
- Features Dante™ networked audio interface - a complete audio networking solution that distributes uncompressed, multi-channel audio transmission via standard Ethernet networks, with near-zero latency and perfect synchronization
- Integrates up to 6-channel balanced mono audio Line/Mic input signals onto a Dante-enabled audio system and supports both dynamic and condenser microphones
- Provides 48V Phantom power supply to condenser microphones
- AES67 support
- Easy to use and set up - User can use "Dante Controller" for the simple setup
- Delivers up to 6-channel balanced mono audio Line outputs from the Dante network to the audio system
- Supports HDMI 2.0 input with HDCP 2.2 compliant - the HDMI input can de-embed HDMI stereo audio to the Dante network
- Supports HDMI 2.0 local output - the VE66DTH can embed the Dante audio into HDMI output
- Supports PoE - power can be supplied by a compatible PSE device throu
By:
ATEN
Manufacturer:
ATEN Technology, Inc
Product ID:
68818
Item:
VE66DTH
UPC Code:
672792011573
Our Part #
8BL394
Condition
New
$1,185.60EA
Availability
Currently out of stock
Product description
ATEN 6 x 6 Dante Audio Interface with HDMI - 6 Input Device - 6 Output Device - 1 x Network (RJ-45) - 1 x HDMI In - 1 x HDMI Out - 4K UHD - 4096 x 2160 - Twisted Pair
6 Input Device - 6 Output Device - 1 x Network (RJ-45) - 1 x HDMI In - 1 x HDMI Out - 4K UHD - 4096 x 2160 - Twisted Pair
Specifications
Number of Output Devices Supported
6
UPC Alternates
672792011573
Brand Name
ATEN
Connectivity technology
Wired
Environmental Certification
RoHS
Environmental Certification
WEEE
Environmentally Friendly
Yes
Graphics Modes
4K UHD
Manufacturer
ATEN Technology Inc
Manufacturer Part Number
VE66DTH
Manufacturer Website Address
http://www.aten.com/us/en/
Marketing Information
ATEN VE66DTH is a Dante-enabled six-input/six-output Audio Interface with HDMI. Using Dante™ - the most popular audio networking solution created by Audinate the VE66DTH is capable of delivering uncompressed close-to-zero latency digital audio signals across your standard IP network. The VE66DTH transmits and receives up to 6-channel of audio inputs and outputs via a Dante network - the audio inputs can support not only the line input but also the dynamic and condenser microphones at the same time. Additionally the device can also provide condenser microphones with 48V Phantom power supply. With its built-in PoE (Power over Ethernet) the VE66DTH can be powered by a compatible PSE device through Ethernet cable. Moreover the VE66DTH provides flexible audio capability with audio de-embedding and embedding. It can de-embed HDMI stereo audio signals to the Dante networking system and embed Dante audio signals into the HDMI output.
The VE66DTH is tailor-made to a wide range of environments such as conference centers concert halls entertainment facilities or wherever that requires implantation of Dante-based professional audio devices for extended and flexible networked AV applications. Users of the VE66DTH can benefit from improved system performance reduction in cabling and more to installations of all sizes.
Maximum Video Resolution
4096 x 2160
Media Type Supported
Twisted Pair
Number of Network (RJ-45) Ports
1
Package Contents
- 6 x 6 Dante Audio Interface with HDMI
- 6 x 5-Pole Terminal Blocks
- 4 x Foot Pads
- 1 x Mounting Kit
- 1 x Power Adapter
- 1 x User Instructions
Product Line
Dante
Product Name
6 x 6 Dante Audio Interface with HDMI
Product Type
Video Extender Transceiver
