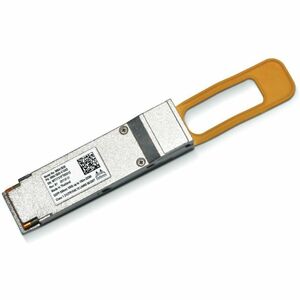

Mellanox 100Gb/s QSFP28 Optical Transceiver
Mellanox 100Gb/s QSFP28 Optical Transceiver - For Optical Network - 1 x MPO 100GBase-SR4 Network - Optical Fiber - Multi-mode - 100 Gigabit Ethernet - 100GBase-SR4 - Hot-pluggable
| $194.17 | Retail $312.00 |
- Supports optical fiber cable for durable performance, minimal signal loss, and fast data transfers to greater distances
- With its thicker diameter to carry the light of multiple wavelengths, multi-mode fiber optic cable supports the high bandwidth to carry more information with greater fidelity
- Provides high performance and flexible solution with 100 Gigabit Ethernet connectivity
- With 100GBase-SR4 technology, get up to 100Gbps data transfer rate over optical fiber cable
By:
Mellanox
Manufacturer:
Mellanox Technologies Ltd
Product ID:
68967
Item:
MMA1B00-C100D
UPC Code:
081050143886
Our Part #
3K5644
Condition
New
$194.17EA
$312.00
$312.00
Availability
Currently out of stock
You may be also interested
Product description
Mellanox 100Gb/s QSFP28 Optical Transceiver - For Optical Network - 1 x MPO 100GBase-SR4 Network - Optical Fiber - Multi-mode - 100 Gigabit Ethernet - 100GBase-SR4 - Hot-pluggable
For Optical Network - 1 x MPO 100GBase-SR4 Network - Optical Fiber - Multi-mode - 100 Gigabit Ethernet - 100GBase-SR4 - Hot-pluggable
Specifications
Fiber Mode Supported
Multi-mode
Interfaces/Ports Details
1 x MPO 100GBase-SR4 Network
UPC Alternates
081050143886 783555115145 800953290936 818239668324 818278741378 993245081098 997847457213 997854690863
UPC Alternates
081050143886 783555115145 800953290936
Application/Usage
Optical Network
Application/Usage
Data Networking
Brand Name
Mellanox
Connector Type
MPO
Country of origin
Israel
Environmental Certification
RoHS
Environmentally Friendly
Yes
Ethernet Technology
100 Gigabit Ethernet
Form factor
Hot-pluggable
Limited Warranty
1 Year
Manufacturer
Mellanox Technologies Ltd
Manufacturer
NVIDIA Corporation
Manufacturer Part Number
MMA1B00-C100D
Manufacturer Website Address
http://www.mellanox.com
Manufacturer Website Address
http://www.nvidia.com
Marketing Information
Mellanox® MMA1B00-C100 is a 4-channel pluggable QSFP28 optical transceiver designed for use in 100Gb/s Ethernet. This module incorporates Mellanox integrated circuit technology in order to provide high performance at low power. The transceiver operates over parallel multi-mode (MMF) ribbon fiber using a nominal wavelength of 850nm and is SFF-8665 compliant.
The MMA1B00-C100 has a standard QSFP28 connector on the electrical side towards the host system supporting CAUI-4. The optical interface is composed of four optical channels/fibers in each direction intended for a parallel multi-mode optical cable via a standard MPO connector. Each channel/fiber operates at signaling rates up to 25.78125 GBd.
The MMA1B00-C100D transceiver has DDM functions implemented for reading the following key parameters with associated warning and alarm thresholds:
-Temperature with warning/alarm
-Supply voltage with warning/alarm
-Laser bias current
-Transmitted optical power with warning/alarm
-Received optical power with warning/alarm
Rigorous production testing ensures the best out-of-the-box installation experience performance and durability.
Media Type Supported
Optical Fiber
Network Technology
100GBase-SR4
Product Name
100Gb/s QSFP28 Optical Transceiver
Product Type
QSFP28
Total Number of Ports
1
