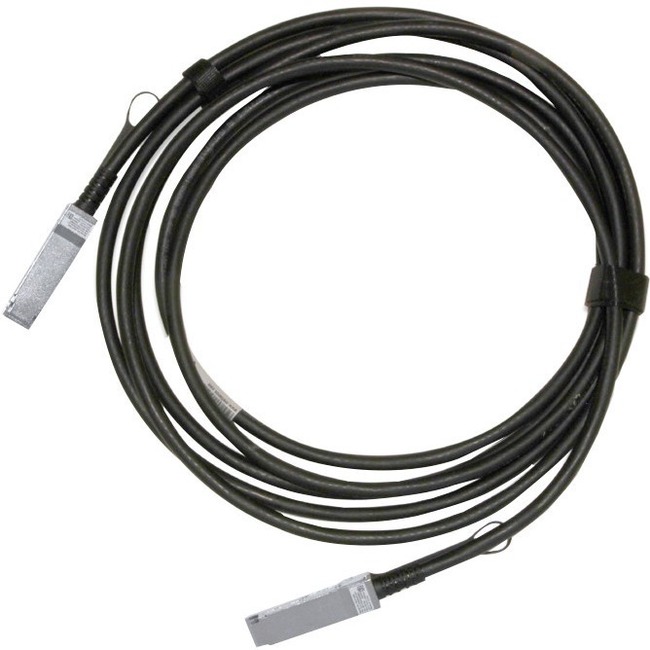

Mellanox Passive Copper Cable, ETH 100GbE, 100Gb/s, QSFP28, 2.5m, Black, 30AWG, CA-L
Mellanox Passive Copper Cable, ETH 100GbE, 100Gb/s, QSFP28, 2.5m, Black, 30AWG, CA-L - 8.20 ft QSFP28 Network Cable for Network Device - First End: 1 x QSFP28 Network - Second End: 1 x QSFP28 Network - 100 Gbit/s - 30 AWG - Black
| $151.28 | Retail $211.00 |
- Up to 100GbE data rate
- SFF-8665 compliant QSFP28
- Operating case temperature 0-70°C
- Single 3.3V supply voltage
- Bit Error Rate (BER) better than 1E-15 with Mellanox systems
- Hot pluggable
- RoHS compliant
- LSZH (Low Smoke Zero Halogen) jacket
- LF (Lead Free) HF (Halogen Free) PCB
By:
Mellanox
Manufacturer:
Mellanox Technologies Ltd
Product ID:
69145
Item:
MCP1600-C02AE30L
UPC Code:
036705994399
Our Part #
5GD565
Condition
New
$151.28EA
$211.00
$211.00
Availability
Currently out of stock
Product description
Mellanox Passive Copper Cable, ETH 100GbE, 100Gb/s, QSFP28, 2.5m, Black, 30AWG, CA-L - 8.20 ft QSFP28 Network Cable for Network Device - First End: 1 x QSFP28 Network - Second End: 1 x QSFP28 Network - 100 Gbit/s - 30 AWG - Black
8.20 ft QSFP28 Network Cable for Network Device - First End: 1 x QSFP28 Network - Second End: 1 x QSFP28 Network - 100 Gbit/s - 30 AWG - Black
Specifications
Jacket Material
Low Smoke Zero Halogen
Product Material
Copper
UPC Alternates
036705994399
American Wire Gauge
30 AWG
Brand Name
Mellanox
Cable length
8.20 ft
Cable type
QSFP28
Color
Black
Connector on First End
QSFP28 Network
Connector on First End
1 x QSFP28 Network
Connector on Second End
QSFP28 - Network
Connector on Second End
1 x QSFP28 Network
Data transfer rate
100 Gbit/s
Device Supported
Network Device
Environmental Certification
RoHS
Environmentally Friendly
Yes
Features
Lead-free
Features
Passive
Features
Halogen Free
Limited Warranty
1 Year
Manufacturer
Mellanox Technologies Ltd
Manufacturer Part Number
MCP1600-C02AE30L
Manufacturer Website Address
http://www.mellanox.com
Marketing Information
Mellanox® MCP1600-C0xxxxxx direct attach copper (DAC) passive cable assemblies are high speed costeffective alternatives to fiber optics in 100Gb/s Ethernet applications.
Mellanox QSFP28 passive copper cable contains four high-speed copper pairs each operating at data rates of up to 25GbE. Each QSFP28 connector includes an EEPROM providing product information which can be read by the host system.
Mellanox's unique quality passive copper cable solutions provide power-efficient connectivity for short distance interconnects. They enable higher port bandwidth density and configurability at a low cost and reduced power requirement in the data centers.
MCP1600 cables up to 2m support IEEE 802.3bj CA-25G-N (Cable Assembly No-FEC) with low latency. Cables from 3m to 5m support IEEE 802.3bj CA-25G-L (Cable Assembly Long) with RS-FEC (Reed Solomon Forward Error Correction) enabled. For 2.5m and 3m cables there are two versions supporting either CA-25G-N or CA-25G-L.
Mellanox's unique quality passive copper cable solutions provide power-efficient connectivity for short distance interconnects. They enable higher port bandwidth density and configurability at a low cost and reduced power requirement in the data centers.
Rigorous cable production testing ensures best out-of-the-box installation experience performance and durability
Mellanox QSFP28 passive copper cable contains four high-speed copper pairs each operating at data rates of up to 25GbE. Each QSFP28 connector includes an EEPROM providing product information which can be read by the host system.
Mellanox's unique quality passive copper cable solutions provide power-efficient connectivity for short distance interconnects. They enable higher port bandwidth density and configurability at a low cost and reduced power requirement in the data centers.
MCP1600 cables up to 2m support IEEE 802.3bj CA-25G-N (Cable Assembly No-FEC) with low latency. Cables from 3m to 5m support IEEE 802.3bj CA-25G-L (Cable Assembly Long) with RS-FEC (Reed Solomon Forward Error Correction) enabled. For 2.5m and 3m cables there are two versions supporting either CA-25G-N or CA-25G-L.
Mellanox's unique quality passive copper cable solutions provide power-efficient connectivity for short distance interconnects. They enable higher port bandwidth density and configurability at a low cost and reduced power requirement in the data centers.
Rigorous cable production testing ensures best out-of-the-box installation experience performance and durability
Product Line
LinkX
Product Name
Passive Copper Cable ETH 100GbE 100Gb/s QSFP28 2.5m Black 30AWG CA-L
Product Type
Network Cable
