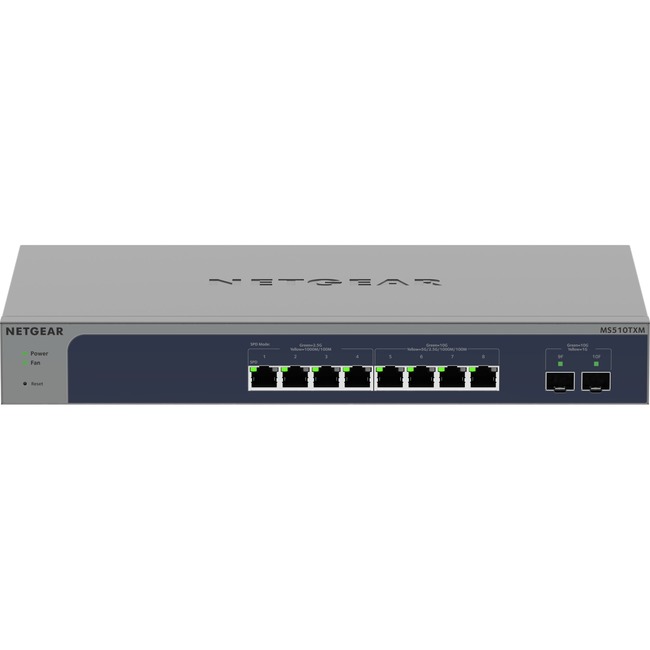

Netgear MS510TXM Ethernet Switch
Netgear MS510TXM Ethernet Switch - 8 Ports - Manageable - 3 Layer Supported - Modular - 47 W Power Consumption - Twisted Pair, Optical Fiber - Rack-mountable, Desktop - Lifetime Limited Warranty
| $669.34 | Retail $893.40 |
- Features 8 networking ports to easily establish a local network or expand your existing one
- Cascade to other network devices through the uplink port to expand your local area network
- Can work as layer 3 routing for scalable network design
- Built-in power supply to ensure all components are being supplied with accurate voltage
- Rack mounting enables you to organize wires & secure cables for professional installation
By:
Netgear
Manufacturer:
Netgear, Inc
Product ID:
69155
Item:
MS510TXM-100NAS
UPC Code:
606449152357
Our Part #
8LU661
Condition
New
$669.34EA
$893.40
$893.40
Availability
Only 4 Left In Stock
Product description
Netgear MS510TXM Ethernet Switch - 8 Ports - Manageable - 3 Layer Supported - Modular - 47 W Power Consumption - Twisted Pair, Optical Fiber - Rack-mountable, Desktop - Lifetime Limited Warranty
8 Ports - Manageable - 3 Layer Supported - Modular - 47 W Power Consumption - Twisted Pair, Optical Fiber - Rack-mountable, Desktop - Lifetime Limited Warranty
Specifications
Number of Total Expansion Slots
2
Total Number of Network Ports
8
UPC Alternates
606449152357
Brand Name
Netgear
Country of origin
Thailand
Depth
8.1"
Environmental Certification
Battery Directive
Environmental Certification
REACH
Environmental Certification
CEC
Ethernet Technology
2.5 Gigabit Ethernet
Ethernet Technology
10 Gigabit Ethernet
Expansion Slot Type
SFP+
Form factor
Desktop
Form factor
Rack-mountable
Height
1.7"
Layer Supported
3
Limited Warranty
Lifetime
Manageable
Yes
Manufacturer
Netgear Inc
Manufacturer Part Number
MS510TXM-100NAS
Manufacturer Website Address
http://www.netgear.com
Marketing Information
As a leading provider of network equipment for SMBs NETGEAR® understands the importance of providing a great choice of speed and power that can support the business's needs to keep up with the growth of network speed virtualization cloud-based services and applications like VoIP video streaming and IP surveillance whether in the hospitality catering education or retail domains. Also the increase in speeds for WiFi 6 Access Points now imply the need for faster speeds in the network.
The MS510TXM and MS510TXUP 8-Port Multi-gig/10G switches with 2 SFP+ Ports join the NETGEAR Standalone Smart Managed Pro Switches family adding multi-gigabit/10G speed a high PoE budget for all PoE/PoE+ devices and Ultra60 PoE++ support (295W total PoE budget for MS510TXUP) for deploying devices with multi-gig capabilities and speed such as WiFi 6 Access Points (eg. WAX610 from NETGEAR) multi-gig or 10G NAS.
NETGEAR Smart Managed Pro Switches offer powerful Layer 2+/Lite L3 features great PoE functionality and enhanced performance and usability. They are purposely designed for modern applications and support BYOD which requires companies to have more bandwidth to ensure smooth network connectivity with no congestion.Furthermore in 2.5G or 5G speeds there is no requirement to upgrade your cabling from Cat5E allowing for savings in installation costs.
To empower the Wireless and PoE applications NETGEAR Insight Remote/ Cloud Management is added to these two new switch models as an optional management mode. By activating the NETGEAR Insight Cloud management the users will enable management features allowing businesses simpler configuration and deployment from anywhere using the NETGEAR Insight app from mobile devices or the Insight Cloud Portal from any device with a web browser.
Highlights
Temperature- and load-based fan-speed control combines accurate monitoring with minimized system acoustic noise ideal for office enviornment. The MS510TXM and MS510TXUP support quiet rack mounting operation with a maximum of 25dB (MS510TXM) and 33 dBA (MS510TXUP) even at full power and 25°C (77°F) ambient.
More Powerful Switch with Multi-gigabit/10G Speed
The MS510TXM and MS510TXUP 8-Port Multi-gig/10G switches with 2 SFP+ Ports join the NETGEAR Standalone Smart Managed Pro Switches family adding multi-gigabit/10G speed a high PoE budget for all PoE/PoE+ devices and Ultra60 PoE++ support (295W total PoE budget for MS510TXUP) for deploying devices with multi-gig capabilities and speed such as WiFi 6 Access Points (eg. WAX610 from NETGEAR) multi-gig or 10G NAS.
NETGEAR Smart Managed Pro Switches offer powerful Layer 2+/Lite L3 features great PoE functionality and enhanced performance and usability. They are purposely designed for modern applications and support BYOD which requires companies to have more bandwidth to ensure smooth network connectivity with no congestion.Furthermore in 2.5G or 5G speeds there is no requirement to upgrade your cabling from Cat5E allowing for savings in installation costs.
To empower the Wireless and PoE applications NETGEAR Insight Remote/ Cloud Management is added to these two new switch models as an optional management mode. By activating the NETGEAR Insight Cloud management the users will enable management features allowing businesses simpler configuration and deployment from anywhere using the NETGEAR Insight app from mobile devices or the Insight Cloud Portal from any device with a web browser.
Highlights
Temperature- and load-based fan-speed control combines accurate monitoring with minimized system acoustic noise ideal for office enviornment. The MS510TXM and MS510TXUP support quiet rack mounting operation with a maximum of 25dB (MS510TXM) and 33 dBA (MS510TXUP) even at full power and 25°C (77°F) ambient.
More Powerful Switch with Multi-gigabit/10G Speed
- 4 x 1G/2.5G ports and 4 x multigig/10G ports
- 8 x Ultra60 PoE++ ports with 295W PoE budget (MS510TXUP only)
- 2 dedicated 10G SFP+ fiber uplink ports
- Non-blocking switching with 140Gbps bandwidth
- Flexible rack-mounting option
- Connect and power your WAX610 with MS510TXUP
- Connect your WAX610PA with MS510TXM
- Manage all devices from a single dashboard with NETGEAR Insight
- Advanced VLAN support for better network segmentation
- L2/L3/L4 access control lists (ACLs) for granular network access control including 802.1x port authentication
- Advanced per port PoE controls for remote power management of PoE powered devices including operation scheduling
- Advanced QoS (Quality of Service) for traffic prioritization including portbased 802.1p and L2/L3/L4 DSCP based
- Auto "denial-of-service" (DoS) prevention
- IGMP Snooping and Querier for multicast optimization
- Egress Rate limiting and priority queuing for better bandwidth allocation
- Port mirroring for network monitoring
- Energy Efficient Ethernet (IEEE 802.3az) for maximum power savings
- IPv6 management: IPv6 QoS IPv6 ACL IPv6 Multicast and static and dynamic IPv6 address assignment
Media Type Supported
Optical Fiber
Media Type Supported
Twisted Pair
Network Technology
10GBase-X
Network Technology
1000Base-T
Package Contents
- MS510TXM Ethernet Switch
- Power Cord
- Mounting Kit
- Rubber Footpads For Tabletop Installation
- Quick Installation Guide
Port/Expansion Slot Details
2 x 10 Gigabit Ethernet Expansion Slot
Port/Expansion Slot Details
4 x 2.5 Gigabit Ethernet Network
Port/Expansion Slot Details
4 x 10 Gigabit Ethernet Network
Power consumption
47 W
Power source
Power Supply
Product Model
MS510TXM
Product Name
MS510TXM Ethernet Switch
Product Type
Ethernet Switch
Weight (Approximate)
4.59 lb
Width
13"
