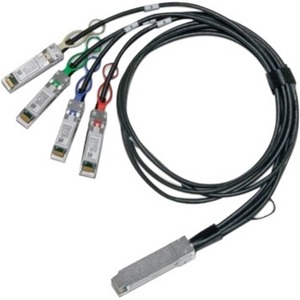

Mellanox LinkX Fiber Optic Network Cable
Mellanox LinkX Fiber Optic Network Cable - 9.84 ft Fiber Optic Network Cable for Network Device - First End: 1 x QSFP28 Network - Second End: 4 x SFP28 Network - 100 Gbit/s - Splitter Cable - 26 AWG
| $225.65 | Retail $361.00 |
- 100GbE to 4x25GbE data rate
- 40GbE to 4x10GbE data rate
- SFF-8402 SFP28 compliant
- SFF-8665 QSFP28 compliant
- Operating case temperature 0-70°C
- Single 3.3V supply voltage
- Bit Error Rate (BER) better than 1E-15 with Mellanox systems
- Hot pluggable
- RoHS compliant
- LF (Lead Free) HF (Halogen Free) PCB
By:
Mellanox
Manufacturer:
Mellanox Technologies Ltd
Product ID:
69160
Item:
MCP7F00-A003R26N
UPC Code:
818242802937
Our Part #
5GM204
Condition
New
$225.65EA
$361.00
$361.00
Availability
Currently out of stock
Product description
Mellanox LinkX Fiber Optic Network Cable - 9.84 ft Fiber Optic Network Cable for Network Device - First End: 1 x QSFP28 Network - Second End: 4 x SFP28 Network - 100 Gbit/s - Splitter Cable - 26 AWG
9.84 ft Fiber Optic Network Cable for Network Device - First End: 1 x QSFP28 Network - Second End: 4 x SFP28 Network - 100 Gbit/s - Splitter Cable - 26 AWG
Specifications
Product Material
Copper
UPC Alternates
818242802937 995477349137
American Wire Gauge
26 AWG
Brand Name
Mellanox
Cable Characteristic
Splitter Cable
Cable length
9.84 ft
Cable type
Fiber Optic
Connector on First End
QSFP28 Network
Connector on First End
1 x QSFP28 Network
Connector on Second End
SFP28 - Network
Connector on Second End
4 x SFP28 Network
Data transfer rate
100 Gbit/s
Device Supported
Network Device
Environmental Certification
RoHS
Environmentally Friendly
Yes
Features
Halogen Free
Features
Passive
Features
Lead-free
Limited Warranty
1 Year
Manufacturer
Mellanox Technologies Ltd
Manufacturer Part Number
MCP7F00-A003R26N
Manufacturer Website Address
http://www.mellanox.com
Marketing Information
Mellanox® MCP7F00-A0xxRyyz DAC splitter cables are a high speed cost-effective 100GbE to 4 x 25GbE Ethernet connectivity solution designed to meet the growing needs for higher bandwidth in data centers
MCP7F00-A0xxRyyz cables are compliant with SFF-8402 SFP28 and SFF-8665 QSFP28 standard specifications and provide connectivity between system units with a QSFP28 port on one side and up to four different SFP28 ports on the other. The cable connects data signals from each of the 4 copper pairs on the QSFP28 end to the single pair of each of the SFP28 ends. Each QSFP28/SFP28 port comprises an EEPROM providing product information which can be read by the host system.
MCP7F00-A0xxRyyz cables up to 2m support IEEE 802.3by CA-25G-N (Cable Assembly No-FEC) with low latency. Cables from 3m to 5m support IEEE 802.by CA-25G-L (Cable Assembly Long) with RS-FEC (Reed Solomon Forward Error Correction) enabled. For 2.5m and 3m cables there are two versions supporting either CA-25G-N or CA-25G-L.
Mellanox's unique quality passive copper cable solutions provide power-efficient connectivity for short distance interconnects. They enable higher port bandwidth density and configurability at a low cost and reduced power requirement in the data centers.
Rigorous cable production testing ensures best out-of-the-box installation experience performance and durability
MCP7F00-A0xxRyyz cables are compliant with SFF-8402 SFP28 and SFF-8665 QSFP28 standard specifications and provide connectivity between system units with a QSFP28 port on one side and up to four different SFP28 ports on the other. The cable connects data signals from each of the 4 copper pairs on the QSFP28 end to the single pair of each of the SFP28 ends. Each QSFP28/SFP28 port comprises an EEPROM providing product information which can be read by the host system.
MCP7F00-A0xxRyyz cables up to 2m support IEEE 802.3by CA-25G-N (Cable Assembly No-FEC) with low latency. Cables from 3m to 5m support IEEE 802.by CA-25G-L (Cable Assembly Long) with RS-FEC (Reed Solomon Forward Error Correction) enabled. For 2.5m and 3m cables there are two versions supporting either CA-25G-N or CA-25G-L.
Mellanox's unique quality passive copper cable solutions provide power-efficient connectivity for short distance interconnects. They enable higher port bandwidth density and configurability at a low cost and reduced power requirement in the data centers.
Rigorous cable production testing ensures best out-of-the-box installation experience performance and durability
Product Line
LinkX
Product Name
LinkX Fiber Optic Network Cable
Product Type
Network Cable
