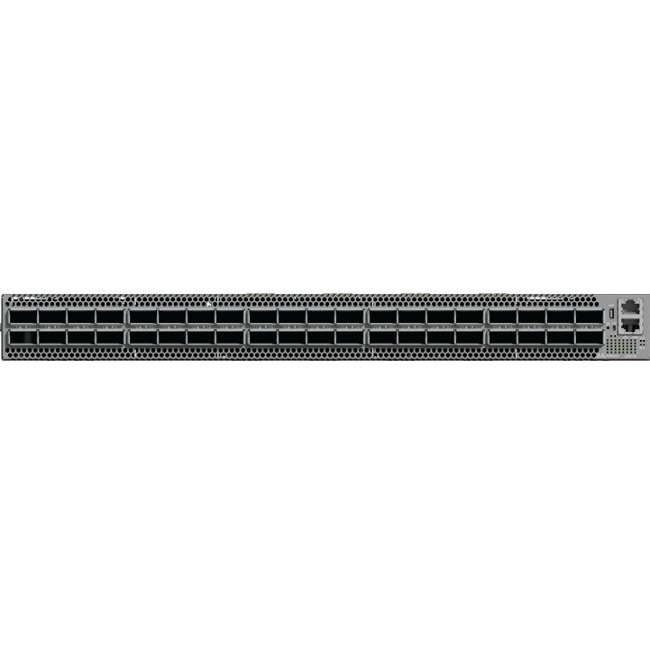

Mellanox QM8790 - Quantum HDR Switch
Mellanox QM8790 - Quantum HDR Switch - 200 Gbit/s40 Infiniband Ports - Manageable - Rack-mountable - 1U - Redundant Power Supply
| $16,994.72 | Retail $27,253.00 |
- Performance
- 40 X HDR 200Gb/s ports in a 1U switch
- 80 X HDR100 100Gb/s ports (using splitter cables)
- 16Tb/s aggregate switch throughput
- Sub-90ns switch latency
- Optimized Design
- 1+1 redundant & hot-swappable power
- N+1 redundant & hot-swappable fans
- 80 gold+ and energy star certified power supplies
- Advanced Design
By:
Mellanox
Manufacturer:
Mellanox Technologies Ltd
Product ID:
69161
Item:
MQM8790-HS2F
Our Part #
2GG303
Condition
New
$16,994.72EA
$27,253.00
$27,253.00
Availability
Currently out of stock
Product description
Mellanox QM8790 - Quantum HDR Switch - 200 Gbit/s40 Infiniband Ports - Manageable - Rack-mountable - 1U - Redundant Power Supply
200 Gbit/s40 Infiniband Ports - Manageable - Rack-mountable - 1U - Redundant Power Supply
Specifications
Compatible Rack Unit
1U
Number of Infiniband Ports
40
Brand Name
Mellanox
Country of origin
Israel
Data transfer rate
200 Gbit/s
Environmental Certification
RoHS-6
Expansion Slot Type
QSFP
Form factor
Rack-mountable
Limited Warranty
1 Year
Manageable
Yes
Manufacturer
Mellanox Technologies Ltd
Manufacturer
NVIDIA Corporation
Manufacturer Part Number
MQM8790-HS2F
Manufacturer Website Address
http://www.nvidia.com
Manufacturer Website Address
http://www.mellanox.com
Marketing Information
Mellanox provides the world's smartest switch enabling in-network computing
through the Co-Design SHARP™ technology. QM8790 has the highest fabric
performance available in the market with up to 16Tb/s of non-blocking bandwidth
with sub-90ns port-to-port latency.
Scaling-Out Data Centers with HDR 200G InfiniBand
Faster servers combined with high-performance storage and applications that use increasingly complex computations are causing data bandwidth requirements to spiral upward. As servers are deployed with next generation processors High-Performance Computing (HPC) environments and Enterprise Data Centers (EDC) will need every last bit of bandwidth delivered with Mellanox's next generation of HDR InfiniBand high-speed smart switches.
World's Smartest Switch
Built with Mellanox's Quantum InfiniBand switch device the QM8790 provides up to forty 200Gb/s ports with full bi-directional bandwidth per port.
These stand-alone switches are an ideal choice for top-of-rack leaf connectivity or for building small to extremely large sized clusters.
QM8790 is the world's smartest network switch designed to enable in-network computing through the Co-Design Scalable Hierarchical Aggregation and Reduction Protocol (SHARP) technology. The Co-Design architecture enables the usage of all active data center devices to accelerate the communications frameworks using embedded hardware resulting in order of magnitude applications performance improvements.
through the Co-Design SHARP™ technology. QM8790 has the highest fabric
performance available in the market with up to 16Tb/s of non-blocking bandwidth
with sub-90ns port-to-port latency.
Scaling-Out Data Centers with HDR 200G InfiniBand
Faster servers combined with high-performance storage and applications that use increasingly complex computations are causing data bandwidth requirements to spiral upward. As servers are deployed with next generation processors High-Performance Computing (HPC) environments and Enterprise Data Centers (EDC) will need every last bit of bandwidth delivered with Mellanox's next generation of HDR InfiniBand high-speed smart switches.
World's Smartest Switch
Built with Mellanox's Quantum InfiniBand switch device the QM8790 provides up to forty 200Gb/s ports with full bi-directional bandwidth per port.
These stand-alone switches are an ideal choice for top-of-rack leaf connectivity or for building small to extremely large sized clusters.
QM8790 is the world's smartest network switch designed to enable in-network computing through the Co-Design Scalable Hierarchical Aggregation and Reduction Protocol (SHARP) technology. The Co-Design architecture enables the usage of all active data center devices to accelerate the communications frameworks using embedded hardware resulting in order of magnitude applications performance improvements.
Package Contents
- QM8790 - Quantum HDR Switch
- Rail Kit
Product Name
QM8790 - Quantum HDR Switch
Product Type
InfiniBand Switch
