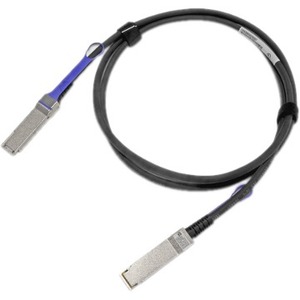

Mellanox MCP1600-C005E26L Ethernet Passive Copper Cable 100GbE QSFP28 5m Black 26AWG CA-L
Mellanox MCP1600-C005E26L Ethernet Passive Copper Cable 100GbE QSFP28 5m Black 26AWG CA-L - 16.40 ft Fiber Optic Network Cable for Network Device - First End: 1 x QSFP28 Network - Second End: 1 x QSFP28 Network - 100 Gbit/s - 26 AWG - Black
| $288.72 | Retail $462.00 |
- Offers a reliable network connectivity
- Features Fiber Optic cable type
- Features Passive
- With 1 x QSFP28 Network connector, it is compatible with a network device
By:
Mellanox
Manufacturer:
Mellanox Technologies Ltd
Product ID:
69274
Item:
MCP1600-C005E26L
Our Part #
3AP911
Condition
New
$288.72EA
$462.00
$462.00
Availability
Currently out of stock
Product description
Mellanox MCP1600-C005E26L Ethernet Passive Copper Cable 100GbE QSFP28 5m Black 26AWG CA-L - 16.40 ft Fiber Optic Network Cable for Network Device - First End: 1 x QSFP28 Network - Second End: 1 x QSFP28 Network - 100 Gbit/s - 26 AWG - Black
16.40 ft Fiber Optic Network Cable for Network Device - First End: 1 x QSFP28 Network - Second End: 1 x QSFP28 Network - 100 Gbit/s - 26 AWG - Black
Specifications
American Wire Gauge
26 AWG
Brand Name
Mellanox
Cable length
16.40 ft
Cable type
Fiber Optic
Color
Black
Connector on First End
1 x QSFP28 Network
Connector on First End
QSFP28 Network
Connector on Second End
QSFP28 - Network
Connector on Second End
1 x QSFP28 Network
Data transfer rate
100 Gbit/s
Device Supported
Network Device
Environmental Certification
RoHS
Environmentally Friendly
Yes
Features
Passive
Features
Halogen Free
Limited Warranty
1 Year
Manufacturer
Mellanox Technologies Ltd
Manufacturer Part Number
MCP1600-C005E26L
Manufacturer Website Address
http://www.mellanox.com
Marketing Information
Mellanox® MCP1600-C0xxxxxx direct attach copper (DAC) passive cable assemblies are high speed costeffective alternatives to fiber optics in 100Gb/s Ethernet applications. Mellanox QSFP28 passive copper cable contains four high-speed copper pairs each operating at data rates of up to 25GbE. Each QSFP28 connector includes an EEPROM providing product information which can be read by the host system.
Mellanox's unique quality passive copper cable solutions provide power-efficient connectivity for short distance interconnects. They enable higher port bandwidth density and configurability at a low cost and reduced power requirement in the data centers.
MCP1600 cables up to 2m support IEEE 802.3bj CA-25G-N (Cable Assembly No-FEC) with low latency. Cables from 3m to 5m support IEEE 802.3bj CA-25G-L (Cable Assembly Long) with RS-FEC (Reed Solomon Forward Error Correction) enabled(1).
For 2.5m and 3m cables there are two versions supporting either CA-25G-N or CA-25G-L. Mellanox's unique quality passive copper cable solutions provide power-efficient connectivity for short distance interconnects. They enable higher port bandwidth density and configurability at a low cost and reduced power requirement in the data centers.
Rigorous cable production testing ensures best out-of-the-box installation experience performance and durability.
Mellanox's unique quality passive copper cable solutions provide power-efficient connectivity for short distance interconnects. They enable higher port bandwidth density and configurability at a low cost and reduced power requirement in the data centers.
MCP1600 cables up to 2m support IEEE 802.3bj CA-25G-N (Cable Assembly No-FEC) with low latency. Cables from 3m to 5m support IEEE 802.3bj CA-25G-L (Cable Assembly Long) with RS-FEC (Reed Solomon Forward Error Correction) enabled(1).
For 2.5m and 3m cables there are two versions supporting either CA-25G-N or CA-25G-L. Mellanox's unique quality passive copper cable solutions provide power-efficient connectivity for short distance interconnects. They enable higher port bandwidth density and configurability at a low cost and reduced power requirement in the data centers.
Rigorous cable production testing ensures best out-of-the-box installation experience performance and durability.
Product Line
LinkX
Product Name
MCP1600-C005E26L Ethernet Passive Copper Cable 100GbE QSFP28 5m Black 26AWG CA-L
Product Type
Network Cable
