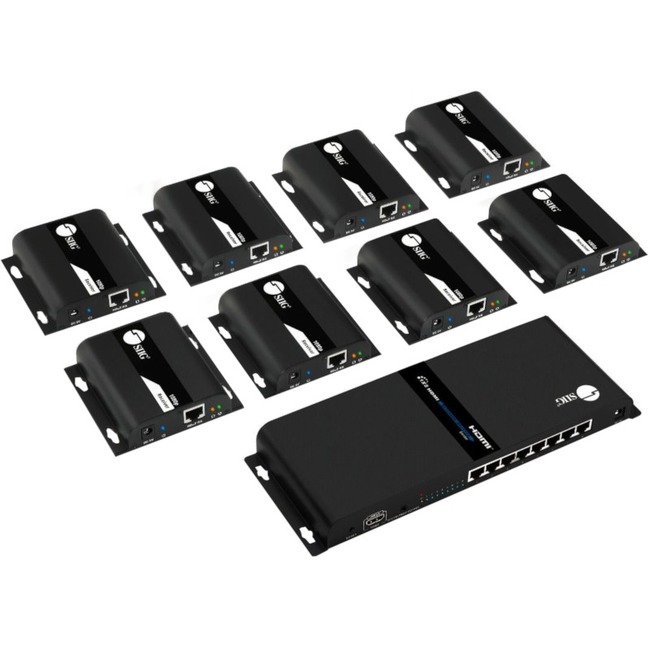

SIIG 1x8 1080p HDMI Splitter HDbitT over IP Extender Kit - 120m
SIIG 1x8 1080p HDMI Splitter HDbitT over IP Extender Kit - 120m - Extends HDMI Signal up to 394ft Over CAT6 Cable with Cascade Feature
| $998.06 |
By:
SIIG
Manufacturer:
SIIG, Inc
Product ID:
71632
Item:
CE-H26W11-S1
UPC Code:
662774044781
Our Part #
8QB342
Condition
New
$998.06EA
Availability
Only 2 Left In Stock
Product description
SIIG 1x8 1080p HDMI Splitter HDbitT over IP Extender Kit - 120m - 8 port HDMI over Cat6 Extender Kit- 394ft (120m) - HDMI HDbitT over IP Extender 1 in 8 out - Full HD 1080p - HDCP - One to Many / Many to Many Connection - Over cat6 cable with cascade feature - Support VLAN - IR Extension - Reset Button- Metal Housing - Power/Link/Activity LED Indicator - 2x IR Extension Cable - Wall Mountable - works with Gigabit network switches - Aliminum metal housing - 2 years warranty
8 port HDMI over Cat6 Extender Kit- 394ft (120m) - HDMI HDbitT over IP Extender 1 in 8 out - Full HD 1080p - HDCP - One to Many / Many to Many Connection - Over cat6 cable with cascade feature - Support VLAN - IR Extension - Reset Button- Metal Housing - Power/Link/Activity LED Indicator - 2x IR Extension Cable - Wall Mountable - works with Gigabit network switches - Aliminum metal housing - 2 years warranty
Specifications
Receiver Depth
3.81"
Receiver Height
0.93"
Receiver Weight (Approximate)
5.28 oz
Receiver Width
3.70"
Transmitter Depth
11.81"
Transmitter Height
1.18"
Transmitter Weight (Approximate)
1.81 lb
Transmitter Width
4.37"
UPC Alternates
662774044781
Brand Name
SIIG
Connectivity technology
Wired
Country of origin
China
Environmental Certification
RoHS
Environmentally Friendly
Yes
Form factor
Surface-mountable
Form factor
Wall Mountable
Frequency
60 Hz
Frequency
50 Hz
Graphics Modes
Full HD
Limited Warranty
2 Year
Manufacturer
SIIG Inc
Manufacturer Part Number
CE-H26W11-S1
Manufacturer Website Address
http://www.siig.com
Marketing Information
Extends 1080p HDMI signal up to 394ft over Cat6 cable to up to 8 displays IR control works with Gigabit network switches for more displays and extension
- With a single Cat6 cable you can easily extend HDMI audio/video signals up to 394ft (120m) with our 1x8 HDMI Splitter HDbitT over IP Extender Kit - 120m. Direct 1-to-1 connection 1-to-Many through Gigabit network switches. Additional receivers part# CE-H26U11-S1 are sold separately
- Features cascade connection of up to 30 receivers per transmitter. 1-to-many configuration through 1) Unmanaged/Dedicated Gigabit switches 2) Smart Gigabit switches with VLAN to segregate video traffic from the rest of the LAN. Many-to-many configuration is also supported via VLAN setups. Note that each VLAN can only accommodate 1 transmitter (TX). Note: We recommend using SIIG's 24-port AV Over IP Smart Ethernet Switch part# CE-SW0111-S1 sold separately
- Delivers crystal clear Full HD content up to 1080p@60Hz resolution. Supports up to 1080p; supports 408i/480p @60Hz 576i/576p @50Hz 720p @50/60Hz 1080i/1080p @50/60Hz; Auto adjustment for different cable lengths to produce the best video/audio experience. Supports 2-channel Stereo Audio. * Note: There's a 250ms or less delay/latency due to data compression. Not recommended for real-time applications such as PC gaming
- IR remote control through Cat6 cable allow source device to recognize remote commands; You can control the HDMI source device at a secondary location with the included IR cables that forward commands over a Cat6 cable for convenience. We recommend using high performance pure COPPER Cat6 cables to ensure reliable performance
- High quality durable surface mountable metal housing with ventilation panels provides excellent heat dissipation and a higher level of RF/EMI shielding to ensure reliable performance and system stability during long hours of non-stop operation
- Plug-n-Play installation no software installation required backed by a 2-year limited warranty
Maximum Operating Distance
393.70 ft
Maximum Video Resolution
1920 x 1080
Media Type Supported
Twisted Pair
Number of HDMI Inputs
1
Number of HDMI Outputs
8
Number of Network (RJ-45) Ports
16
Package Contents
- 1x8 HDMI Splitter HDbitT over IP Extender Kit - 120m
- 9 x Power Adapters
- 1 x IR Blaster Cable
- 8 x IR Receiver Cable
- Quick Start Guide
Product Name
1x8 HDMI Splitter HDbitT over IP Extender Kit - 120m
Product Type
Video Extender Transmitter/Receiver
Twisted Pair Cable Standard
Category 7
