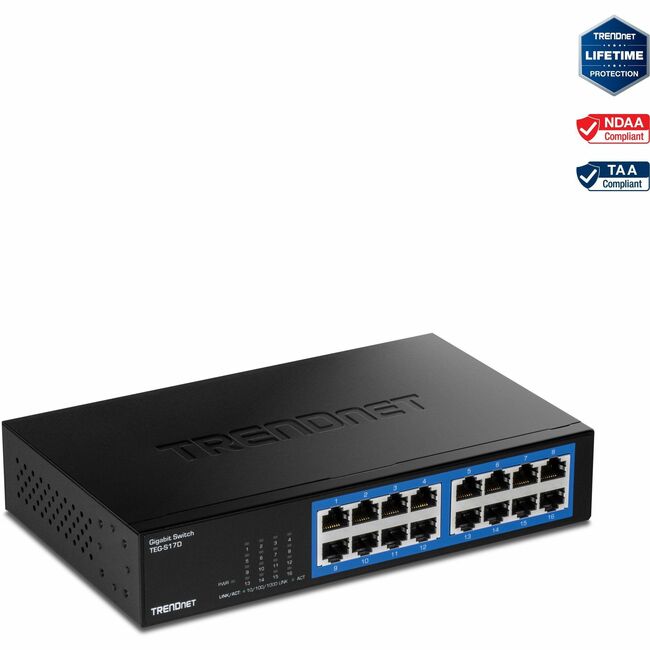

TRENDnet 16-Port Gigabit Desktop Switch, TEG-S17D, 16 x Gigabit RJ-45 Ports, 32Gbps Switching Capacity, Fanless Design, Metal Enclosure, Internal Power Supply, Lifetime Protection, Black
TRENDnet 16-Port Gigabit Desktop Switch, TEG-S17D, 16 x Gigabit RJ-45 Ports, 32Gbps Switching Capacity, Fanless Design, Metal Enclosure, Internal Power Supply, Lifetime Protection, Black - 16 Ports - Gigabit Ethernet - 1000Base-T - 2 Layer Supported - Power Supply - 9.19 W Power Consumption - Twisted Pair - 1U High - Compact, Desktop, Rack-mountable - Lifetime Limited Warranty
| $85.26 |
- Features 16 networking ports to easily establish a local network or expand your existing one
- Supports cost-efficient twisted pair cables for high-speed data transfer up to 100 meters
- Gigabit Ethernet port for ultra-fast network speeds
- With leading Layer 2 support, experience enhanced convenience, secure business operations, and a borderless network experience
- Built-in power supply to ensure all components are being supplied with accurate voltage
Manufacturer:
TRENDnet
Product ID:
71760
Item:
TEG-S17D
UPC Code:
710931140811
Our Part #
04VL86
Condition
New
$85.26EA
Availability
Only 10 Left In Stock
Product description
TRENDnet 16-Port Gigabit Desktop Switch, TEG-S17D, 16 x Gigabit RJ-45 Ports, 32Gbps Switching Capacity, Fanless Design, Metal Enclosure, Internal Power Supply, Lifetime Protection, Black - 16 Ports - Gigabit Ethernet - 1000Base-T - 2 Layer Supported - Power Supply - 9.19 W Power Consumption - Twisted Pair - 1U High - Compact, Desktop, Rack-mountable - Lifetime Limited Warranty
16 Ports - Gigabit Ethernet - 1000Base-T - 2 Layer Supported - Power Supply - 9.19 W Power Consumption - Twisted Pair - 1U High - Compact, Desktop, Rack-mountable - Lifetime Limited Warranty
Specifications
Compatible Rack Unit
1U
Network (RJ-45)
Yes
Product Material
Metal
Total Number of Network Ports
16
UPC Alternates
710931140811
Country of origin
Taiwan
Ethernet Technology
Gigabit Ethernet
Form factor
Desktop
Form factor
Rack-mountable
Form factor
Compact
Frequency
50 Hz
Frequency
60 Hz
Height
4.3"
Input voltage
230 V AC
Input voltage
120 V AC
Layer Supported
2
Length
6.3"
Limited Warranty
Lifetime
Manufacturer
TRENDnet
Manufacturer Part Number
TEGS17D
Manufacturer Part Number
TEG-S17D
Manufacturer Website Address
http://www.trendnet.com
Marketing Information
- DEVICE INTERFACE: 16 x Gigabit RJ-45 ports; LED indicators
- SWITCHING CAPACITY: This 16-port gigabit switch has a 32Gbps switching capacity with a forwarding rate of 23.8Mpps (64-byte packet size)
- DATA TRANSFER RATE: Ethernet: 10 Mbps (half duplex); 20 Mbps (full duplex); Fast Ethernet: 100 Mbps (half duplex); 200 Mbps (full duplex);Gigabit: 2000 Mbps (full duplex)
- DESKTOP DESIGN: Sturdy metal housing for greater installation flexibility and well-suited for desktop installations. Rackmount brackets are also included for easy installation with 1U rack installations
- FANLESS DESIGN: The network switch fanless design lowers energy consumption and eliminates operating noise.
- INTERNAL POWER SUPPLY: 100 - 240V AC 50/60 Hz 1A; Max. Consumption: 9.19W
- TRENDnet LIFETIME PROTECTION: The TEG-S17D 16-Port Gigabit Desktop Switch is backed by TRENDnet's Lifetime Manufacturer Protection.
The 16-Port Gigabit Desktop Switch model TEG-S17D provides high bandwidth performance ease of use and reliability. Boost office network efficiency and eliminate network congestion with gigabit speeds and a total switching capacity of 32Gbps with fullduplex mode. A built-in universal power supply reduces cable clutter and diagnostic LEDs help with network troubleshooting. Plug and play this sturdy metal switch for reliable high-speed network connectivity.
Gigabit Speeds
Gigabit ports provide high-speed network connections to 16 devices and a 32Gbps switching capacity allows data traffic to flow smoothly reducing traffic bottlenecks.
Housing Design
With a compact and sturdy metal housing design this switch is well-suited for desktop or rackmount installations (brackets included).
Fanless
Fanless design lowers energy consumption and reduces distracting operating noise.
FEATURES | Plug and Play
Simply power up the switch and plug in connected devices
Housing Design
With a compact and sturdy metal housing design this switch is wellsuited for desktop or rackmount installations (brackets included).
LED Indicators
LEDs convey power link and activity
Ports
16 x Gigabit Ethernet ports
Jumbo Frame
Sends larger packets or Jumbo Frames (up to 9KB) for increased performance
Internal Power Supply
100~240VAC 50/60Hz internal universal switching power supply
Switching Capacity
32Gbps switching capacity
Fanless
Fanless design lowers energy consumption and eliminates operating noise
Marketing Information
- DEVICE INTERFACE: 16 x Gigabit RJ-45 ports; LED indicators
- SWITCHING CAPACITY: This 16-port gigabit switch has a 32Gbps switching capacity with a forwarding rate of 23.8Mpps (64-byte packet size)
- DATA TRANSFER RATE: Ethernet: 10 Mbps (half duplex); 20 Mbps (full duplex); Fast Ethernet: 100 Mbps (half duplex); 200 Mbps (full duplex);Gigabit: 2000 Mbps (full duplex)
- DESKTOP DESIGN: Sturdy metal housing for greater installation flexibility and well-suited for desktop installations. Rackmount brackets are also included for easy installation with 1U rack installations
- FANLESS DESIGN: The network switch fanless design lowers energy consumption and eliminates operating noise.
- INTERNAL POWER SUPPLY: 100 - 240V AC 50/60 Hz 1A; Max. Consumption: 9.19W
- TRENDnet LIFETIME PROTECTION: The TEG-S17D 16-Port Gigabit Desktop Switch is backed by TRENDnet's Lifetime Manufacturer Protection.
The 16-Port Gigabit Desktop Switch model TEG-S17D provides high bandwidth performance ease of use and reliability. Boost office network efficiency and eliminate network congestion with gigabit speeds and a total switching capacity of 32Gbps with fullduplex mode. A built-in universal power supply reduces cable clutter and diagnostic LEDs help with network troubleshooting. Plug and play this sturdy metal switch for reliable high-speed network connectivity.
Gigabit Speeds
Gigabit ports provide high-speed network connections to 16 devices and a 32Gbps switching capacity allows data traffic to flow smoothly reducing traffic bottlenecks.
Housing Design
With a compact and sturdy metal housing design this switch is well-suited for desktop or rackmount installations (brackets included).
Fanless
Fanless design lowers energy consumption and reduces distracting operating noise.
FEATURES | Plug and Play
Simply power up the switch and plug in connected devices
Housing Design
With a compact and sturdy metal housing design this switch is wellsuited for desktop or rackmount installations (brackets included).
LED Indicators
LEDs convey power link and activity
Ports
16 x Gigabit Ethernet ports
Jumbo Frame
Sends larger packets or Jumbo Frames (up to 9KB) for increased performance
Internal Power Supply
100~240VAC 50/60Hz internal universal switching power supply
Switching Capacity
32Gbps switching capacity
Fanless
Fanless design lowers energy consumption and eliminates operating noise
Marketing Information
- DEVICE INTERFACE: 16 x Gigabit RJ-45 ports; LED indicators
- SWITCHING CAPACITY: This 16-port gigabit switch has a 32Gbps switching capacity with a forwarding rate of 23.8Mpps (64-byte packet size)
- DATA TRANSFER RATE: Ethernet: 10 Mbps (half duplex); 20 Mbps (full duplex); Fast Ethernet: 100 Mbps (half duplex); 200 Mbps (full duplex);Gigabit: 2000 Mbps (full duplex)
- DESKTOP DESIGN: Sturdy metal housing for greater installation flexibility and well-suited for desktop installations. Rackmount brackets are also included for easy installation with 1U rack installations
- FANLESS DESIGN: The network switch fanless design lowers energy consumption and eliminates operating noise.
- INTERNAL POWER SUPPLY: 100 - 240V AC 50/60 Hz 1A; Max. Consumption: 9.19W
- TRENDnet LIFETIME PROTECTION: The TEG-S17D 16-Port Gigabit Desktop Switch is backed by TRENDnet's Lifetime Manufacturer Protection.
- NDAA / TAA compliant (U.S. and Canada only)
The 16-Port Gigabit Desktop Switch model TEG-S17D provides high bandwidth performance ease of use and reliability. Boost office network efficiency and eliminate network congestion with gigabit speeds and a total switching capacity of 32Gbps with fullduplex mode. A built-in universal power supply reduces cable clutter and diagnostic LEDs help with network troubleshooting. Plug and play this sturdy metal switch for reliable high-speed network connectivity.
Gigabit Speeds
Gigabit ports provide high-speed network connections to 16 devices and a 32Gbps switching capacity allows data traffic to flow smoothly reducing traffic bottlenecks.
Housing Design
With a compact and sturdy metal housing design this switch is well-suited for desktop or rackmount installations (brackets included).
Fanless
Fanless design lowers energy consumption and reduces distracting operating noise.
FEATURES | Plug and Play
Simply power up the switch and plug in connected devices
Housing Design
With a compact and sturdy metal housing design this switch is wellsuited for desktop or rackmount installations (brackets included).
LED Indicators
LEDs convey power link and activity
Ports
16 x Gigabit Ethernet ports
Jumbo Frame
Sends larger packets or Jumbo Frames (up to 9KB) for increased performance
Internal Power Supply
100~240VAC 50/60Hz internal universal switching power supply
Switching Capacity
32Gbps switching capacity
Fanless
Fanless design lowers energy consumption and eliminates operating noise
Marketing Information
- DEVICE INTERFACE: 16 x Gigabit RJ-45 ports; LED indicators
- SWITCHING CAPACITY: This 16-port gigabit switch has a 32Gbps switching capacity with a forwarding rate of 23.8Mpps (64-byte packet size)
- DATA TRANSFER RATE: Ethernet: 10 Mbps (half duplex); 20 Mbps (full duplex); Fast Ethernet: 100 Mbps (half duplex); 200 Mbps (full duplex);Gigabit: 2000 Mbps (full duplex)
- DESKTOP DESIGN: Sturdy metal housing for greater installation flexibility and well-suited for desktop installations. Rackmount brackets are also included for easy installation with 1U rack installations
- FANLESS DESIGN: The network switch fanless design lowers energy consumption and eliminates operating noise.
- INTERNAL POWER SUPPLY: 100 - 240V AC 50/60 Hz 1A; Max. Consumption: 9.19W
- TRENDnet LIFETIME PROTECTION: The TEG-S17D 16-Port Gigabit Desktop Switch is backed by TRENDnet's Lifetime Manufacturer Protection.
The 16-Port Gigabit Desktop Switch model TEG-S17D provides high bandwidth performance ease of use and reliability. Boost office network efficiency and eliminate network congestion with gigabit speeds and a total switching capacity of 32Gbps with fullduplex mode. A built-in universal power supply reduces cable clutter and diagnostic LEDs help with network troubleshooting. Plug and play this sturdy metal switch for reliable high-speed network connectivity.
Gigabit Speeds
Gigabit ports provide high-speed network connections to 16 devices and a 32Gbps switching capacity allows data traffic to flow smoothly reducing traffic bottlenecks.
Housing Design
With a compact and sturdy metal housing design this switch is well-suited for desktop or rackmount installations (brackets included).
Fanless
Fanless design lowers energy consumption and reduces distracting operating noise.
FEATURES | Plug and Play
Simply power up the switch and plug in connected devices
Housing Design
With a compact and sturdy metal housing design this switch is wellsuited for desktop or rackmount installations (brackets included).
LED Indicators
LEDs convey power link and activity
Ports
16 x Gigabit Ethernet ports
Jumbo Frame
Sends larger packets or Jumbo Frames (up to 9KB) for increased performance
Internal Power Supply
100~240VAC 50/60Hz internal universal switching power supply
Switching Capacity
32Gbps switching capacity
Fanless
Fanless design lowers energy consumption and eliminates operating noise
Media Type Supported
Twisted Pair
Network Technology
1000Base-T
Networking standards
IEEE 802.3ab
Networking standards
IEEE 802.3x
Networking standards
IEEE 802.3
Networking standards
IEEE 802.3u
Package Contents
- 16-Port Gigabit Desktop Switch
- Quick Installation Guide
- Rack Mount Kit
- Power Cord (1.5m / 4.9 ft.)
Port/Expansion Slot Details
16 x Gigabit Ethernet Network
Power consumption
9.19 W
Power source
Power Supply
Product Model
TEG-S17D
Product Name
16-Port Gigabit Desktop Switch
Product Type
Ethernet Switch
Weight (Approximate)
14.60 oz
Width
1"
