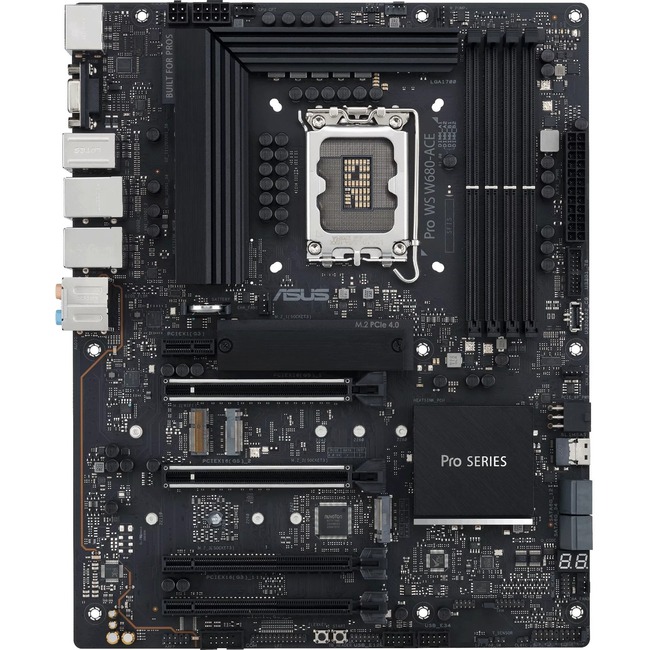

Asus Pro WS W680-ACE Workstation Motherboard - Intel W680 Chipset - Socket LGA-1700 - Intel Optane Memory Ready - ATX

Pro WORKSTATION MOTHERBOARD

ASUS Pro Workstation motherboards are designed for professionals in AI training deep learning animation 3D rendering or media production. Featuring expandable graphics extensive storage impressive connectivity and exceptional overall performance and reliability Pro Workstation motherboards are the ideal solution for creative professionals. Each motherboard includes centralized management software so they're also an efficient and cost-effective option for IT administrators.

Ultra Powerful Back IO

The motherboard comes with four USB 3.2 Gen 1 type connector one reversible USB Type-C connector and front-panel connector to support additional USB expansions.

ECC Memory Support

Designed for creative professionals who require outstanding performance reliability and enhanced security ASUS Pro WS W680-ACE motherboard is powered by the latest 13th and 12th Gen Intel processors for always-on usage scenarios and supports ECC memory to automatically detect and correct data corruption reducing the chance of system crashes to ensure workstation stability.

Dual 2.5G Ethernet

Boosted connectivity with dual onboard Ethernet ports. Intel 2.5G Ethernet upgrades your traditional LAN connection with an up to 2.5X bandwidth improvement. Using your existing Ethernet cable you can experience faster file transfers and immediately stream high-resolution videos.

ASUS Control Center Express

The best business performance requires smart IT management. ASUS Control Center Express is an intuitive and secure software designed to simplify IT operations and improve workload productivity by providing comprehensive control of all the systems in your organization. Plus ASUS Control Center Express is compatible with over 100 ASUS motherboards to give you more upgrade flexibility and less compatibility issues.

Multi-GPU Support

Two PCIe 5.0 x16 slots provide flexible system configurability and expandability - including support for NVIDIA® Quadro® - for enhanced performance in modelling simulation and rendering applications.

Triple M.2 Slots

Triple M.2 slots support PCIe 4.0 offering up to 64 Gbps data-transfer speeds and flexible M.2 interfaces. The RAID 0/1/5/10 configuration are available for the data protection and increases fault tolerance to the entire system higher storage capacity and better SSD performance.

Thermal Solution | VRM heatsink

A large high-mass heatsink with extensive surface that covers the VRM and choke areas improves heat dissipation.

PCH heatsink

An expanded surface area for the chipset cooler maximizes performance and heat dissipation.

M.2 heatsink

M.2 slot has a dedicated heatsink keep the M.2 SSD at optimum operating temperature to ensure consistent performance and reliability.

• PRO WS W680-ACE Workstation Motherboard
• 2 x SATA 6Gb/s cables
• 1 x Q-connector
• 1 x M.2 Rubber Packages
• 2 x Screw package for M.2 SSD
• 1 x Screw package for M.2 Key E
• 1 x I/O Shield
• 1 x User guide
• 1 x ACC Express Activation Key Card
