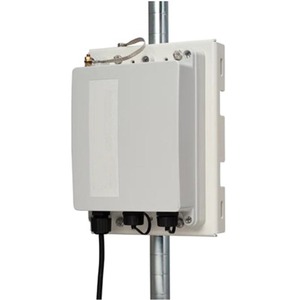

Cisco Aironet PoE Injector
Cisco Aironet PoE Injector - 120 V AC, 230 V AC Input - 55 V DC, 2 A Output - 1 x Ethernet Input Port(s) - 1 x Ethernet Output Port(s) - 60 W - Pole/Wall-mountable
| $757.54 | Retail $1,027.92 |
By:
Cisco
Manufacturer:
Cisco Systems, Inc
Product ID:
72163
Item:
AIR-PWRINJ-60RGD1=
UPC Code:
882658905322
Our Part #
6F5730
Condition
New
$757.54EA
$1,027.92
$1,027.92
Availability
Only 41 Left In Stock
You may be also interested
Product description
Cisco Aironet PoE Injector - 120 V AC, 230 V AC Input - 55 V DC, 2 A Output - 1 x Ethernet Input Port(s) - 1 x Ethernet Output Port(s) - 60 W - Pole/Wall-mountable
120 V AC, 230 V AC Input - 55 V DC, 2 A Output - 1 x Ethernet Input Port(s) - 1 x Ethernet Output Port(s) - 60 W - Pole/Wall-mountable
Specifications
Input Ports
1 x Ethernet
Maximum Output Current
2 A
Maximum Output Voltage
55 V DC
UPC Alternates
882658905322
Brand Name
Cisco
Certifications & Standards
- CE
- IEEE 802.3af
- IEEE 802.3at
- FCC Part 15 Class B
- CE EN50522 Class B
- EN55024
- VCCI
- EN61000-4-5 Class 5 (6kV CM)
- UL60950-1
- UL60950-22
Compatibility
Cisco Aironet 1560 Series Outdoor Access Points
Country of origin
Philippines
Environmental Certification
GS
Environmental Certification
RoHS
Environmental Certification
WEEE
Environmentally Friendly
Yes
Height
2.8"
Input voltage
120 V AC
Input voltage
230 V AC
Length
8.4"
Manufacturer
Cisco Systems Inc
Manufacturer Part Number
AIR-PWRINJ-60RGD1=
Manufacturer Website Address
http://www.cisco.com
Marketing Information
The power injector increases wireless LAN deployment flexibility of the access point by combining 55-VDC power with the data signal and sending both to the connected access point.
The power injector combines 55-VDC power (supplied by internal power supply) with the data signal sending both to the access point. The power injector provides up to 60 W over all four wire pairs of shielded outdoor rated Ethernet cable.
The total length of the Ethernet cable from the AP to the switch must not exceed 320 ft (100 m). The wire gauge of the cable must be 26 AWG.
The Ethernet cable from the switch to the power injector must be a shielded CAT5e or higher Ethernet cable. The Ethernet cable from the power injector to the access point must be a shielded outdoor-rated CAT5e or higher Ethernet cable with a 0.20 to 0.35 inch diameter.
A shielded outdoor Ethernet cable connects the power injector to a 10/100/1000 Ethernet switch hub or network and another shielded outdoor cable carries power and data to the access point's Ethernet port. The power injector's AC power receptacle connects an approved AC power cord to a wall outlet or power strip. The power injector can be mounted on most horizontal and vertical surfaces but must be mounted in a vertical orientation to comply with safety requirements.
Maximum Output Power
60 W
Mount Type
Pole/Wall-mountable
Product Line
Aironet
Product Name
Aironet PoE Injector
Product Type
PoE Injector
Protection Type
Surge Protection
Weight (Approximate)
2.98 lb
Width
5.9"
