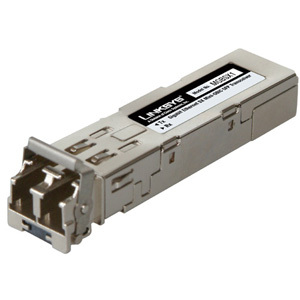

Cisco MGBSX1 - Gigabit Ethernet SX Mini-GBIC SFP Transceiver
Cisco MGBSX1 - Gigabit Ethernet SX Mini-GBIC SFP Transceiver - 1 x 1000Base-SX
| $129.85 |
- Supports optical fiber cable for durable performance, minimal signal loss, and fast data transfers to greater distances
- Typically used for short distance, multi-mode fiber optic is ideal to carry data and transmit audio/video applications within a building
By:
Cisco
Manufacturer:
Cisco Systems, Inc
Product ID:
72166
Item:
MGBSX1
UPC Code:
011650931002
Our Part #
D61718
Condition
New
$129.85EA
Availability
Only 11 Left In Stock
You may be also interested
Product description
Cisco MGBSX1 - Gigabit Ethernet SX Mini-GBIC SFP Transceiver - 1 x 1000Base-SX
1 x 1000Base-SX
Specifications
Fiber Mode Supported
Multi-mode
Fiber Optic Cable Standard
50/125 µm
Fiber Optic Cable Standard
62.5/125 µm
Interfaces/Ports Details
1 x LC 1000Base-SX
Maximum Distance Supported
1804.46 ft
UPC Alternates
011650931002 112840347372 633815647742 745883558766
Additional Information
- Transmitter Spec: Power: -9.5 to -4 dBm
- Reciever Spec: Sensitivity: -20 to -17dBm
- Input Power: -20 to -17 dBm
- Stress Sensitivity: 50/125 um: -13.5dBm 62.5/125 um: -12.5dBm
- Wavelength: 850 nm (850nm TYP. 830-860nm) MMF
Modular Bandwidth for MMF:
- 62.5/125um MMF at 160 MHz/km up to 220m
- 62.5/125um MMF at 200 MHz/km up to 275m
- 50/125um MMF at 400 MHz/km up to 500m
- 50/125um MMF at 500 MHz/km up to 550m
Application/Usage
Data Networking
Brand Name
Cisco
Compatibility
- SR2024 - 24-Port 10/100/1000 Gigabit Switch
- SR224G - 24-Port 10/100 + 1-Port Gigabit Switch + 1 MiniGBIC
- SRW2016 - 16-Port 10/100/1000 Gigabit Switch with WebView
- SRW2024 - 24-Port 10/100/1000 Gigabit Switch with WebView
- SRW224 - 24-port 10/100 + 2-Port Gigabit Switch with WebView
Connector Type
LC
Country of origin
China
Manufacturer
Cisco Systems Inc
Manufacturer Part Number
MGBSX1
Manufacturer Website Address
http://www.cisco.com
Marketing Information
This easy-to-install Mini-GBIC (or SFP) module provides a simple way to add Gigabit functionality to your Linksys switch. Gigabit fiber is often used to connect two switches together. The technology used depends on the distance between the two switches.The SX module uses 850 nanometer wavelength light in multimode fiber optic cables and can achieve distances up to 220 or 550 meters depending on the fiber used.
Maximum Data Transfer Rate
1
Media Type Supported
Optical Fiber
Product Name
MGBSX1 - Gigabit Ethernet SX Mini-GBIC SFP Transceiver
Product Type
SFP (mini-GBIC)
Weight (Approximate)
0.04 lb
