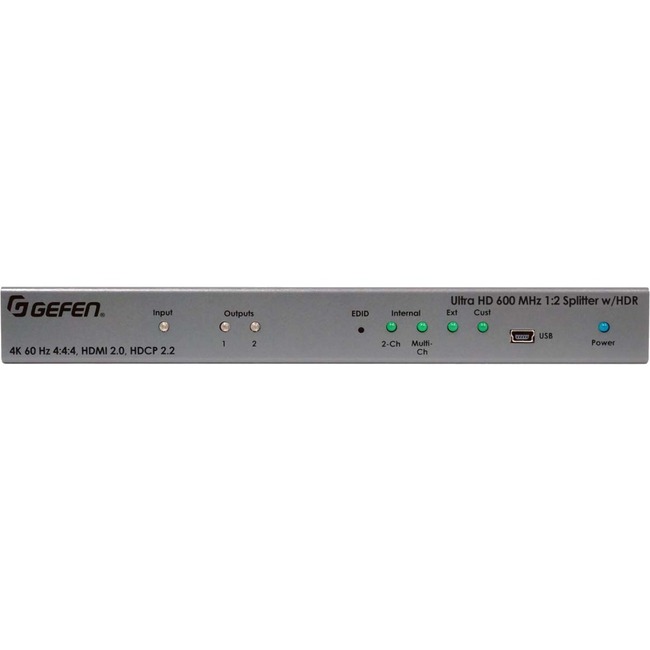

Gefen Ultra HD 600 MHz 1:2 Splitter for HDMI w/ HDR
Gefen Ultra HD 600 MHz 1:2 Splitter for HDMI w/ HDR - 600 MHz to 600 MHz - 4096 x 2160 - 1 x HDMI In - 2 x HDMI Out - USB
| $284.68 | Retail $370.00 |
- Simultaneously displays an Ultra Hi-Def source on two Ultra HD displays
- Specifically designed to support multiple layers of splitting/cascading** in large video distribution and signage applications, supporting up to hundreds of displays
- Supports resolutions up to 4K DCI-Cinema (4096 x 2160 at 60 Hz, 4:4:4), 4K Ultra HD (3860 x 2160 at 60Hz, 4:4:4), 1080p Full HD, & 1920x1200 (WUXGA)
- Supports HDCP 2.2 and 1.4
- Supports HDR (High Dynamic Range) 10-bit Deep Color at 4K 60 Hz 4:2:0 and 4K 24 Hz 4:4:4
- Supports 12-bit Deep Color at 1080p 60 Hz 4:4:4
- 3DTV pass-through
- Lip Sync pass-through
- EDID Management and Audio Mode selectors for rapid integration of source and displays
- Supports uncompressed LPCM digital audio up to 7.1 channels
By:
Gefen
Manufacturer:
Gefen, Inc
Product ID:
72507
Item:
EXT-UHD600-12
UPC Code:
818263197647
Our Part #
32101529
Condition
New
$284.68EA
$370.00
$370.00
Availability
Only 2 Left In Stock
Product description
Gefen Ultra HD 600 MHz 1:2 Splitter for HDMI w/ HDR - 600 MHz to 600 MHz - 4096 x 2160 - 1 x HDMI In - 2 x HDMI Out - USB
600 MHz to 600 MHz - 4096 x 2160 - 1 x HDMI In - 2 x HDMI Out - USB
Specifications
UPC Alternates
818263197647 888814213317 888814272352
Brand Name
Gefen
Depth
3.7"
Height
1"
Input voltage
5 V DC
Limited Warranty
2 Year
Manufacturer
Gefen Inc
Manufacturer Part Number
EXT-UHD600-12
Manufacturer Website Address
http://www.gefen.com
Marketing Information
Designing systems capable of distributing 4K Ultra High Definition media requires support for the content of today and headroom for the content of tomorrow. Gefen's EXT-UHD600 Series of splitters take HDMI 2.0 to its highest specification of 4K 60 Hz at 4:4:4 chroma subsampling along with HDR (High Dynamic Range) support. They go beyond the requirements of typical 4K systems delivering stunning Ultra HD and DCI/Cinema picture up to 4096 x 2160 pixels at 60 frames per second without subsampling color. This ensures that the scene shown on the display is every bit as brilliant as the picture that the camera captured. HDR lets every subtle nuanced gradation of each pixel play out across the screen in immersive clarity. Gefen's EXT-UHD600 product line creates a seamless bridge between the digital media of yesterday today and tomorrow. Supporting the digital rights management standard for Ultra High Definition content HDCP 2.2 as well as the legacy HDCP 1.4 Gefen's EXT-UHD600 products can handle the signal routing needs for both existing and new components in commercial and residential AV systems. Highest performance multichannel digital audio including 7.1 channels of LPCM and HBR (High Bit Rate) digital audio formats such as Dolby Atmos® Dolby® TrueHD DTS:X™ and DTS-HD Master Audio™ are also supported. These splitters have been specifically designed to support multiple layers of cascading** for flawless performance in large video distribution and signage applications supporting up to hundreds of displays. Gefen's exclusive Long Reach Power (LRP) feature provides 5V at 500 mA (as opposed to HDMI standard 55 mA) on pin 18 of HDMI outputs 1 and 2. This enhanced current capability enables select extender devices to be powered through their HDMI input port without the need for an external power supply. Gefen's EXT-UHD600 product line was designed to work with Gefen's Syner-G™ software suite. EDID and HDCP management status monitoring and firmware updates can be done in minutes using the Gefen Syner-G™ software. The Gefen EXT-UHD600-12 splitter features a low profile compact and surface-mountable enclosure that can fit in tight places. It also accommodates Gefen locking HDMI cables for secure connections.
Maximum Frequency
600 MHz
Maximum Video Resolution
4096 x 2160
Number of HDMI Outputs
2
Package Contents
- Ultra HD 600 MHz 1:2 Splitter for HDMI w/ HDR
- 1 x 6 ft locking HDMI cable
- 1 x 5V Power Supply w US/EU/UK/AU plugs
- 2 x Surface Mounting L-Brackets
- 4 x M3 6 mm Machine screws for Mounting the L-Brackets to unit
- 2 x 6-32 5 mm Machine screws for mounting the unit to Gefen EXT-RACK-1U-GRY (available separately)
- 4 x Self-Adhesive Rubber Feet
- 1 x Quick-Start Guide
Packaged Quantity
1
Product Name
Ultra HD 600 MHz 1:2 Splitter for HDMI w/ HDR
Product Type
Signal Splitter
USB
Yes
Weight (Approximate)
12 oz
Width
8.4"
