Gefen 4K Ultra HD HDBaseT Extender
Gefen 4K Ultra HD HDBaseT Extender - 1 Input Device - 1 Output Device - 131.23 ft Range - 2 x Network (RJ-45) - 1 x HDMI In - 1 x HDMI Out - 4K - 4096 x 2160 - Twisted Pair - Category 6a - Surface-mountable
| $415.22 | Retail $539.70 |
- 4K Ultra HD (3840 x 2160 @ 60 Hz, 4:2:0), up to 130 feet/40 meters (8-bit color)
- 4K Ultra HD (3840 x 2160 @ 30 Hz, 4:4:4), up to 130 feet/40 meters (8-bit color)
- 4K Cinema (DCI) (4096 x 2160 @ 24 or 30 Hz 4:4:4), up to 130 feet/40 meters (8-bit color)
- 1080p Full HD (60 Hz), up to 230 feet/70 meters (up to 12-bit Deep Color)
- HDMI 2.0
- HDCP 2.2 and 1.4
- 12-bit Deep Color
- LPCM 7.1, Dolby Atmos®, Dolby® TrueHD, DTS:X™, and DTS-HD Master Audio™ pass-through
- 3DTV pass-through
- CEC pass-through
By:
Gefen
Manufacturer:
Gefen, Inc
Product ID:
72524
Item:
GTB-UHD-HBTL
UPC Code:
818275577802
Our Part #
45111815
Condition
New
$415.22EA
$539.70
$539.70
Availability
Only 5 Left In Stock
You may be also interested
Product description
Gefen 4K Ultra HD HDBaseT Extender - 1 Input Device - 1 Output Device - 131.23 ft Range - 2 x Network (RJ-45) - 1 x HDMI In - 1 x HDMI Out - 4K - 4096 x 2160 - Twisted Pair - Category 6a - Surface-mountable
1 Input Device - 1 Output Device - 131.23 ft Range - 2 x Network (RJ-45) - 1 x HDMI In - 1 x HDMI Out - 4K - 4096 x 2160 - Twisted Pair - Category 6a - Surface-mountable
Specifications
Network (RJ-45)
Yes
Transmitter Depth
3.20"
Transmitter Height
1"
Transmitter Weight (Approximate)
14.11 oz
Transmitter Width
4.30"
UPC Alternates
818275577802 888814999532 997250438229
Brand Name
Gefen
Connectivity technology
Wired
Form factor
Surface-mountable
Graphics Modes
4K
Limited Warranty
3 Year
Manufacturer
Gefen Inc
Manufacturer Part Number
GTB-UHD-HBTL
Manufacturer Website Address
http://www.gefen.com
Marketing Information
With 2-way IR and POL

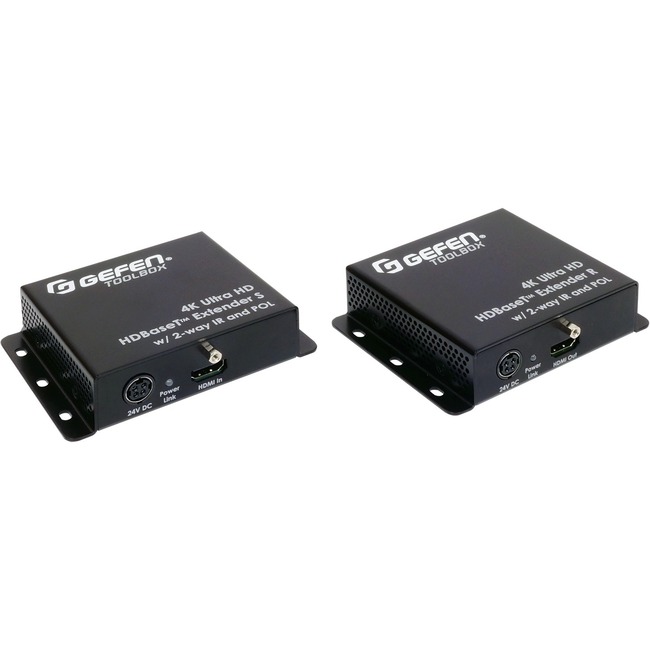

The GTB-UHD-HBTL 4K Ultra HD Extender uses Gefen's implementation of the HDBaseT™ technology to extend HDMI up to 230 feet/70 meters at 1080p and up to 130 feet/40 meters at 4K using one CAT-5e or better cable. Resolutions up to 4K Ultra HD (3840 x 2160 @ 60 Hz 4:2:0) with 7.1 channels of HBR (High Bit Rate) lossless digital audio are supported. This product provides 2-way IR extension between the Sender and the Receiver units facilitating the control of A/V sources placed near the Sender unit and sending automation commands to the display or another device placed near the Receiver unit. Gefen's Bi-Directional POL (Power Over Line) technology powers the Sender or the Receiver unit using the same cable that extends the HDMI signal. Only one of the two units will need a power supply. This feature simplifies installation in cases when an electrical outlet may not be available near the source or the display. Small low profile enclosures can be securely surface-mounted and conveniently hidden away from sight.
Maximum Operating Distance
131.23 ft
Maximum Video Resolution
4096 x 2160
Media Type Supported
Twisted Pair
Number of HDMI Inputs
1
Number of Network (RJ-45) Ports
2
Package Contents
- 1 x Sender Unit (GTB-UHD-HBTL-S)
- 1 x Receiver Unit (GTB-UHD-HBTL-R)
- 1 x 6 ft. Locking HDMI cable (CAB-HD-LCK-06MM)
- 1 x IR Emitter (EXT-IREMIT)
- 1 x IR Extender (EXT-RMT-EXTIRN)
- 1 x 24V DC Power Supply (EXT-PS24U1AIP or EXT-PS24U1AIP-6)
- 1 x Quick-Start Guide (QSG-GTB-UHD-HBTL)
Product Line
GefenToolBox
Product Name
4K Ultra HD HDBaseT Extender
Product Type
Video Extender Transmitter/Receiver
Twisted Pair Cable Standard
Category 6a
