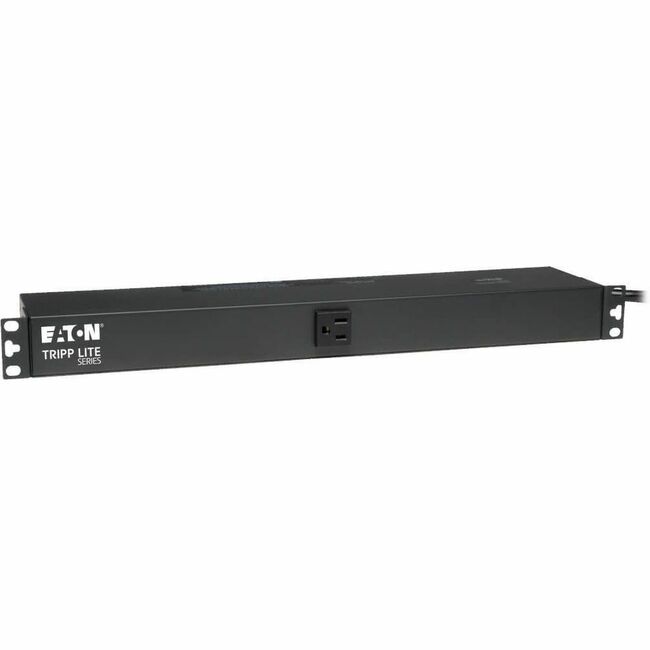

Tripp Lite PDU Basic 13 NEMA 5-15R Outlets 5-15P Input 1.8kW 6ft Cord 1URM
Tripp Lite PDU Basic 13 NEMA 5-15R Outlets 5-15P Input 1.8kW 6ft Cord 1URM - Basic - NEMA 5-15P - 13 x NEMA 5-15R - 120 V AC - 1U - Horizontal - Rack-mountable
| $95.08 |
- Ideal no-frills PDU for telecom, security, audio/video and other network applications
- 13 NEMA 5-15R outlets distribute AC power to connected equipment
- Switchless design helps prevent accidental shutdowns that can lead to costly downtime
- 6 ft. cord with NEMA 5-15P single-phase input connects to AC power source
- Flexible installation options include 1U and 0U rack, under counter and on wall
- 5-year limited warranty
By:
Tripp Lite
Manufacturer:
Tripp Lite by Eaton
Product ID:
72823
Item:
PDU121506
UPC Code:
037332255747
Our Part #
8JT041
Condition
New
$95.08EA
Availability
Only 17 Left In Stock
Product description
Tripp Lite PDU Basic 13 NEMA 5-15R Outlets 5-15P Input 1.8kW 6ft Cord 1URM - Basic - NEMA 5-15P - 13 x NEMA 5-15R - 120 V AC - 1U - Horizontal - Rack-mountable
Basic - NEMA 5-15P - 13 x NEMA 5-15R - 120 V AC - 1U - Horizontal - Rack-mountable
Specifications
Mounting Orientation
Horizontal
PDU Type
Basic
Phase
Single Phase
Power Rating (Watt)
1900 W
Receptacle Detail
13 x NEMA 5-15R
UPC Alternates
037332255747
Additional Information
ENVIRONMENTAL
- Storage Temperature Range -30°C to +50°C (-22°F to +122°F)
- Relative Humidity 5 to 95% non-condensing
- Operating Elevation (ft.) 0-10000
- Operating Elevation (m) 0-3000
SPECIAL FEATURES:
- TVSS Grounding Back panel grounding lug
USER INTERFACE ALERTS & CONTROLS:
- Switches No power switch
Brand Name
Tripp Lite
Certifications & Standards
STANDARDS & COMPLIANCE:
- Certifications Tested to UL CSA
- Certification Details Series Number (s) AGIP120V6IPRM; Safety Standards (Canada) CAN/CSA-C22.2 No.308-14; Safety Standards (U.S.) UL1363:2018 (5th Ed); RETIE
Circuit Breaker
Yes
Cord Length
6 ft
Country of origin
China
Depth
4.5"
Environmental Certification
RoHS
Height
1.8"
Input current
15 A
Input voltage
120 V AC
Limited Warranty
5 Year
Manufacturer
Tripp Lite by Eaton
Manufacturer Part Number
PDU121506
Manufacturer Website Address
http://www.tripplite.com
Marketing Information
Single-Phase 120V PDU Distributes Network-Grade Power to Multiple Loads
This basic PDU is an ideal no-frills unit for networking telecom security audio/video and sound reinforcement applications. Recommended for high-density IT environments the PDU121506 features a single breakered load bank with 13 NEMA 5-15R outlets - 12 in the rear and one in front. A six-foot cord with NEMA 5-15P input plug connects to your facility's AC power source generator or protected UPS system to distribute power to connected loads.
Up-to-Date Safety Features Protect Your Vital Equipment
The switchless design helps prevent an accidental shutdown which could lead to costly downtime. A 15A circuit breaker protects connected components from dangerous overloads.
Versatile Installation Options Give You Plenty of Choices
The reversible all-metal housing comes with mounting brackets for installation in 1U of space in an EIA-standard 19-inch rack. You can also reorient the brackets for permanent mounting under a counter or on a wall with user-supplied hardware. With a compatible rack and Tripp Lite's PDUSIDEBRKT accessory (sold separately) you can adapt the PDU121506 for vertical 0U rack-mounting as well.
Mount Type
Rack-mountable
Output voltage
100 V AC
Output voltage
127 V AC
Package Contents
- PDU121506 13-Outlets PDU
- Rack-mounting hardware
- Owner's Manual
Plug/Connector Type
NEMA 5-15P
Product Name
PDU121506 13-Outlets PDU
Product Type
PDU
Protection Type
Overload Protection
Rack Height
1U
Receptacle Type
NEMA 5-15R
Weight (Approximate)
4.90 lb
Width
17.5"
