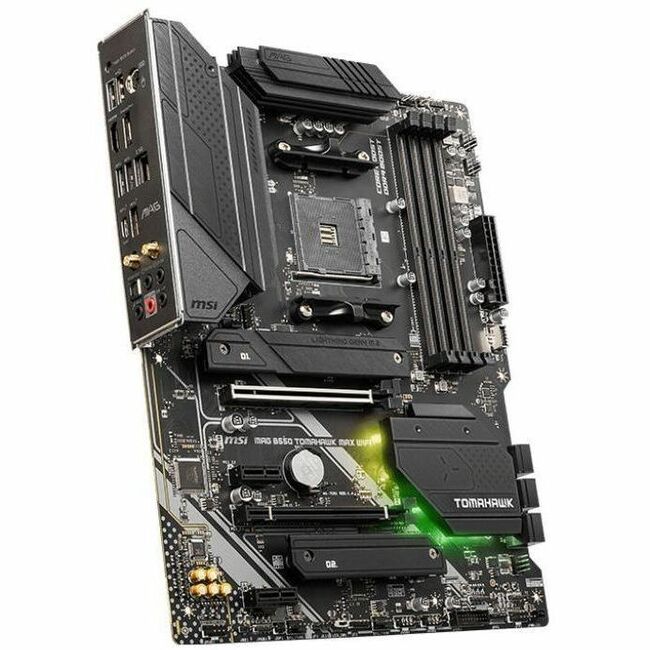

MSI MAG B550 TOMAHAWK MAX WIFI Desktop Motherboard - AMD B550 Chipset - Socket AM4 - ATX
MSI MAG B550 TOMAHAWK MAX WIFI Desktop Motherboard - AMD B550 Chipset - Socket AM4 - ATX - Ryzen 9 Processor Supported - 128 GB DDR4 SDRAM Maximum RAM - DIMM, UDIMM - 4 x Memory Slots - Gigabit Ethernet - HDMI - DisplayPort - 6 x SATA Interfaces
| $245.20 |
- Supports AMD Ryzen™ 5000 Series, 5000 G-Series, 4000G-Series, and 3000 Series processors
- Supports DDR4 Memory, up to 5100+(OC) MHz
- Lightning Fast Game experience: PCIe 4.0, Lightning Gen 4 x4 M.2 with M.2 Shield Frozr, AMD Turbo USB 3.2 Gen 2
- Premium Thermal Solution: Extended Heatsink Design with additional choke thermal pad rated for 7W/mk and PCB with 2oz thickened copper are built for high performance system and non-stop gaming experience.
- Enhanced Power Design: 10+2+1 Duet Rail Power System, Digital PWM, Core Boost, DDR4 Boost.
- 2.5G LAN with LAN Manager and AMD Wi-Fi 6E Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection.
- Pre-installed I/O Shield: Better EMI protection and more convenience for installation.
- Audio Boost: Reward your ears with studio grade sound quality for the most immersive gaming experience.
- Multi-GPU
Manufacturer:
MSI
Product ID:
73776
Item:
B550TMHWKMWI
UPC Code:
824142286685
Our Part #
43201513
Condition
New
$245.20EA
Availability
Only 34 Left In Stock
Product description
MSI MAG B550 TOMAHAWK MAX WIFI Desktop Motherboard - AMD B550 Chipset - Socket AM4 - ATX - Ryzen 9 Processor Supported - 128 GB DDR4 SDRAM Maximum RAM - DIMM, UDIMM - 4 x Memory Slots - Gigabit Ethernet - HDMI - DisplayPort - 6 x SATA Interfaces
Ryzen 9 Processor Supported - 128 GB DDR4 SDRAM Maximum RAM - DIMM, UDIMM - 4 x Memory Slots - Gigabit Ethernet - HDMI - DisplayPort - 6 x SATA Interfaces
Specifications
Chipset Model
B550
HDMI Version
2.1
Maximum Memory Supported
128 GB
Memory Speed Supported
2133 MHz
Memory Speed Supported
4866 MHz
Memory Speed Supported
4266 MHz
Memory Speed Supported
4200 MHz
Memory Speed Supported
3200 MHz
Memory Speed Supported
3300 MHz
Memory Speed Supported
4533 MHz
Memory Speed Supported
3866 MHz
Memory Speed Supported
4133 MHz
Memory Speed Supported
3733 MHz
Memory Speed Supported
3600 MHz
Memory Speed Supported
4600 MHz
Memory Speed Supported
5000 MHz
Memory Speed Supported
4400 MHz
Memory Speed Supported
2933 MHz
Memory Speed Supported
3400 MHz
Memory Speed Supported
4000 MHz
Memory Speed Supported
4300 MHz
Memory Speed Supported
4800 MHz
Memory Speed Supported
5100 MHz
Memory Speed Supported
2666 MHz
Memory Speed Supported
3466 MHz
Memory Speed Supported
3333 MHz
Memory Speed Supported
3000 MHz
Memory Speed Supported
2400 MHz
Multi GPU Supported
CrossFire
Number of Memory Slots
4
Number of PCI Express x1 Slots
2
Number of SATA Interfaces
6
Onboard Video
CPU Dependent Video
Processor Socket
Socket AM4
Processor Supported
Ryzen 9
S/PDIF
Yes
Total Number of Onboard USB Ports
7
UPC Alternates
824142286685
Audio Channels
7.1
Chipset Manufacturer
AMD
Controller Type
Serial ATA/600
Country of origin
China
Form factor
ATX
Limited Warranty
3 Year
Manufacturer
MSI
Manufacturer Part Number
B550TMHWKMWI
Manufacturer Website Address
http://www.msi.com
Marketing Information
Conquer the Battlefield
The MAG series was born through rigorous quality testing and designed to be a symbol of sturdiness and durability. Focused on providing the best user experience the MAG series has a simple installation process coupled with a friendly user interface making it the best choice for entry level gamers.
THERMAL SOLUTION FOR MORE CORES AND HIGHER PERFORMANCE
With more cores' processors thermal and power design is more important to make sure the temperature keeps lower. MSI extended PWM heatsink and enhanced circuit design ensures even high-end CPU to run in full speed with MSI motherboards.
LIGHTNING GEN 4 M.2
Utilizing 3rd Gen Ryzen processors MSI B550 motherboards feature latest Lightning Gen 4 M.2 which is the fastest onboard storage solution on the market with up to 64 Gb/s transfer speed.
HIGH-BANDWIDTH AND LOW-LATENCY NETWORK
2.5Gbps LAN provides incredible data transfer speed faster than general Gigabit LAN. This is a premium solution for demanding users.
Memory form factor
DIMM
Memory form factor
UDIMM
Memory Technology
DDR4 SDRAM
Product Line
MAG
Product Model
B550 TOMAHAWK MAX WIFI
Product Type
Desktop Motherboard
RAID Levels
1
RAID Levels
0
RAID Levels
10
