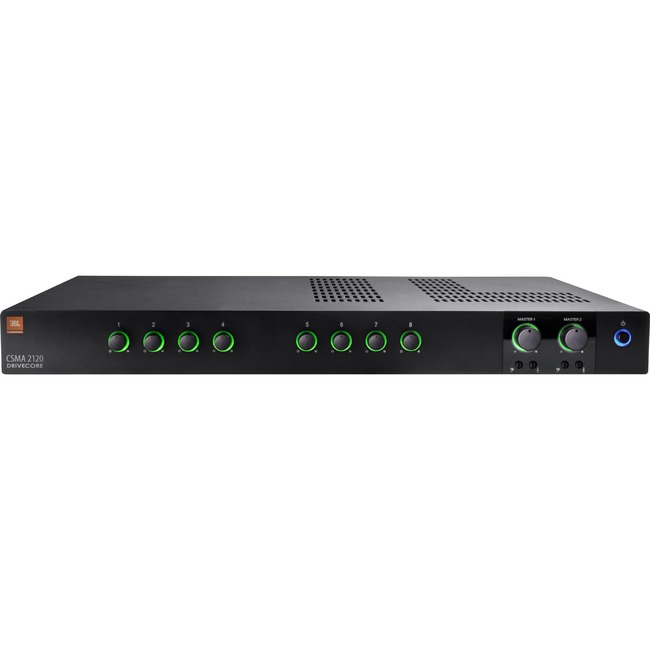

JBL Commercial CSMA 2120 Amplifier - 240 W RMS - 2 Channel
JBL Commercial CSMA 2120 Amplifier - 240 W RMS - 2 Channel - 1 kHz - 60 W
| $807.55 | Retail $1,314.96 |
- 8 inputs with 2 outputs of 40,80, 120-watts of power
- Ideal for commercial and industrial use
- Fanless, space-saving 1U design
- Sleek industrial look with illuminated rings, making them easy to see and operate
- Euro-block type mic/line input connectors and output connectors
- Independent Bass and Treble controls for each output channel
- Supports 70V and 100V distributed audio systems without the need for a separate transformer
- Remote volume control capability using JBL CSR-V module and standard Ethernet cable
- Priority muting
- Configurable output routing
- Utilizes Crown's DriveCoreTM technology providing excellent audio performance with high efficiency
- Manufactured to lead-free ROHS standards, utilizing recycled metals, and using an energy-saving powder coat process
- Includes rack mounting kit
- Three-Year, No-Fault, Fully Transferable Warranty completely protects yo
By:
JBL Commercial
Manufacturer:
Harman International Industries, Inc
Product ID:
73900
Item:
NCSMA2120-U-US
UPC Code:
871015007366
Our Part #
6DC933
Condition
New
$807.55EA
$1,314.96
$1,314.96
Availability
Only 18 Left In Stock
Product description
JBL Commercial CSMA 2120 Amplifier - 240 W RMS - 2 Channel - 1 kHz - 60 W
1 kHz - 60 W
Specifications
RMS Output Power
240 W
UPC Alternates
871015007366
Audio Channels
2
Brand Name
JBL Commercial
Country of origin
Malaysia
Depth
11.9"
Environmental Certification
RoHS
Environmental Certification
WEEE
Environmentally Friendly
Yes
Height
1.7"
Impedance
8 Ohm
Input voltage
27 V DC
Input voltage
230 V AC
Input voltage
120 V AC
Limited Warranty
3 Year
Manufacturer
Harman International Industries Inc
Manufacturer Part Number
NCSMA2120-U-US
Manufacturer Website Address
http://www.harman.com
Marketing Information
CSMA 240/280/2120
The JBL® CSMA series of Mixer-Amplifiers are a professional tool with a sleek industrial look that is designed and built for commercial sound applications. Utilizing Crown's DriveCore technology enables significantly reduced size and weight - all mixer/amps are highly efficient fanless and just 1U rack space high. There are both single channel and two channel models with four or eight mixer channels respectively.
The CSMA mixer/amps offer unmatched ease of use with a clean front panel featuring only volume controls for each channel master volume adjustment adjustable bass and treble controls and a power switch. All the volume controls are surrounded by an illuminated ring making them easy to see and operate in darkened environments. The amplifier can drive 8 ohm and 4 ohm loads and can be used with 70V and 100V distributed audio systems without the need for a separate transformer. In addition to balanced mic/line inputs unbalanced RCA inputs and speaker connections all units include RJ45 connectors for use with JBL CSR-V in-wall volume controls. All models feature a universal power supply which enables the ability to accept AC voltages from 100 to 240 VAC 50/60Hz.
JBL Commercial mixer/amps are manufactured under HARMAN's GreenEdge™ environmental initiative conforming to lead-free RoHS standards and utilizing recycled copper aluminum and steel an energy-saving powder coat finishing process and other environmentally-conscious manufacturing processes. Their highly efficient DriveCore design reduces power consumption and yields much more efficient operation - up to 80 percent more efficient than previous designs. All models carry a 3-year no-fault transferable warranty.
Maximum Frequency Response
1 kHz
Number of Analog Audio Inputs
12
Operating Power Consumption
60 W
Package Contents
- CSMA 2120 Amplifier
- Rack mounting kit
Product Model
CSMA 2120
Product Name
CSMA 2120 Amplifier
Product Series
CSMA
Product Type
Amplifier
Width
17.2"
