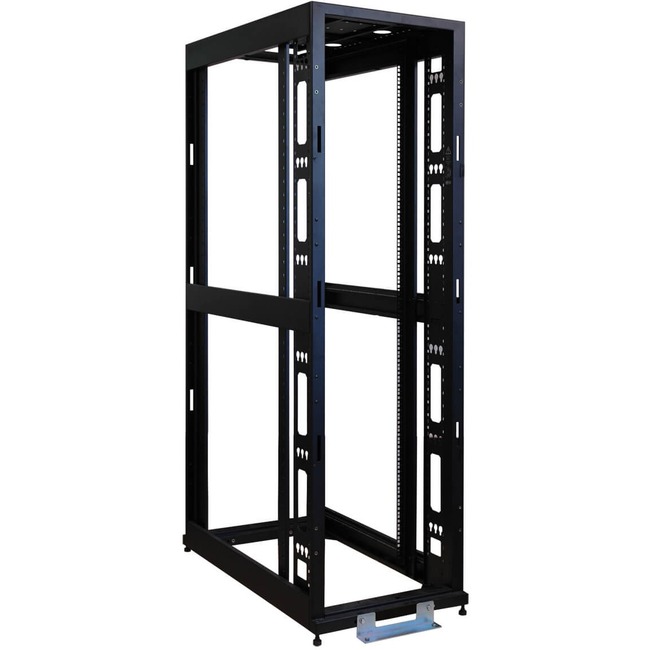

Tripp Lite 42U 4-Post Open Frame Rack Cabinet 36" Depth No Sides or Doors

• Grounding lug: Front and Back door frames
• 4 Interior vertical posts with unthreaded square hole openings
• Preinstalled casters and leveling feet
• Rolls through standard 7 foot doorways
• Front and rear sets of equipment mounting rails adjust in 1/4" increments. Adjustment is quick and convenient. The easy-view depth index ensures consistent rail placement without requiring time-consuming measurements.
• Tool-less accessory mounting rails (2 rails per enclosure) include slots for quick installation of compatible PDUs and vertical cable managers. Mounting slots are arranged in an industry-standard pattern compatible with a wide variety of accessories. Each rail can accommodate two vertical PDUs or cable managers side-by-side (four items per enclosure).
• Maximum usable internal depth of 31 inches
• Built in baying tabs allow premium open frame racks to be combined securely in rows. Center-to-center width can be set at 600mm or 24" to match standard data center floor tiles.
• Leveling feet extend to allow premium open frame racks to be positioned on uneven floors. Levelers are removable.
• Compact design allows the premium open frame racks to roll through standard height commercial doorways.
• Convenient grounding system. All components are grounded to the premium open frame rack structure which includes multiple connections for facility ground.
• Open bottom for cable access.

• UL60950
• CE
• EIA/ECA-310-E
• IEC 60297-3-100
• DIN 41494
• NOM (Mexico)

The SR42UBMDEXPND is part of our new line of mid-depth rack enclosures. Our new line offers 36" (927mm) depth opposed to the standard 42" (1050mm).

The SR42UBMDEXPND is a 42U SmartRack enclosure with NO doors and NO side panels. The 'EXP' version is an expansion model used when several cabinets are bayed together. Its integrated baying tabs make it easy to combine multiple enclosures in rows for data center applications. This enclosure is also compatible with hot-aisle/cold-aisle configurations.

The SR42UBMDEXPND houses 3000 lb of standard 19-inch rack equipment in 42U. Its front and rear pairs of vertical rails have square mounting holes that are adjustable in quarter-inch increments from 4 to 31 inches. Adjustment is quick and an easy-view depth index ensures consistent rail placement without requiring time-consuming measurements. Each rack space within the enclosure is numbered for ready reference.

Two of the adjustable vertical mounting rails support toolless button-mount 0U installation of up to four compatible PDUs and cable managers. This feature makes it easier to route cabling to rack equipment and reduces cord clutter.

All components of the SR42UBMDEXPND are grounded to the enclosure frame. Front and rear threaded grounding points are provided for connection to the facility earth ground.

To simplify deployment the SR42UBMDEXPND comes with preinstalled casters that enable it to be easily maneuvered into the desired location where it can be secured by adjusting the preinstalled levelers. Note: the casters are intended for minor position adjustments and are not designed for moving the enclosure over long distances.

The SR42UBMDEXPND comes with a 5-year product warranty. As part of the SmartRack family the SR42UBMDEXPND is compatible with Tripp Lite's extensive range of rackmount accessories enabling you to customize your solution to meet any requirement.

• 42U Mid-Depth 4-Post SmartRack Premium Open Frame Rack (No Sides or Doors)
• 50 x M6 Cage Nuts
• 50 x M6 Screws
• Stabilizing Brackets
