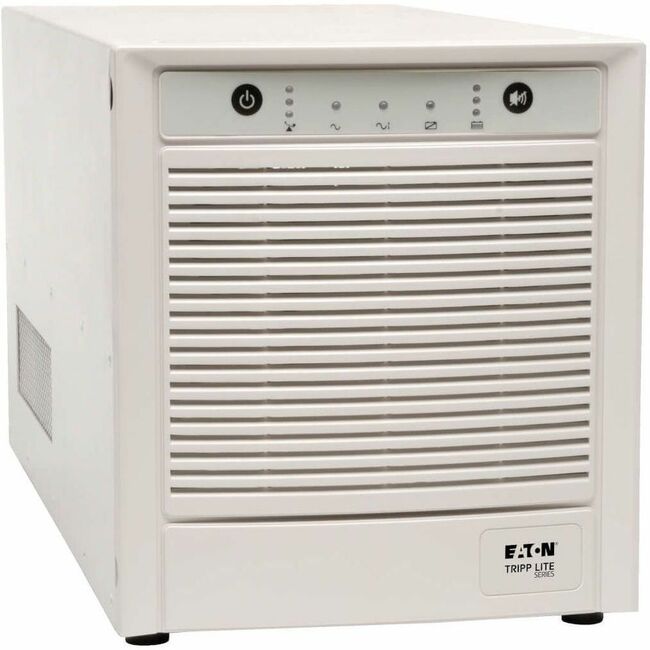

Tripp Lite UPS Smart 2200VA 1920W Tower Hospital Medical AVR 120V Pure Sign Wave USB DB9
Tripp Lite UPS Smart 2200VA 1920W Tower Hospital Medical AVR 120V Pure Sign Wave USB DB9 - 2200 VA/1920 W - 120 V AC - 4.40 Minute - Tower - 4.40 Minute - 4 x IEC 60320 C13, 4 x NEMA 5-15/20R"
| $2,456.14 | Retail $3,465.28 |
- 2200VA Line interactive, extended run tower UPS
- Battery backup for patient care area
- UL 60601-1 listing 3rd edition
- Built in Isolation transformer, reducing cumulative shock cumulative shock potential to less than 100 microamps
By:
Tripp Lite
Manufacturer:
Tripp Lite by Eaton
Product ID:
76108
Item:
SMART2500XLHG
UPC Code:
037332168283
Our Part #
QZ7113
Condition
New
$2,456.14EA
$3,465.28
$3,465.28
Availability
Only 131 Left In Stock
Product description
Tripp Lite UPS Smart 2200VA 1920W Tower Hospital Medical AVR 120V Pure Sign Wave USB DB9 - 2200 VA/1920 W - 120 V AC - 4.40 Minute - Tower - 4.40 Minute - 4 x IEC 60320 C13, 4 x NEMA 5-15/20R"
2200 VA/1920 W - 120 V AC - 4.40 Minute - Tower - 4.40 Minute - 4 x IEC 60320 C13, 4 x NEMA 5-15/20R"
Specifications
Load Capacity (VA)
2200 VA
Load Capacity (W)
1920 W
Receptacle Detail
4 x IEC 60320 C13
Receptacle Detail
4 x NEMA 5-15/20R
UPC Alternates
037332168283
Backup/Run Time (Full Load)
4.40 Minute
Backup/Run Time (Half Load)
13 Minute
Brand Name
Tripp Lite
Certifications & Standards
- UL1778
- CSA
- FCC Part 15
- UL60601-1
Country of origin
China
Depth
19.1"
Environmental Certification
RoHS
Form factor
Tower
Height
9.3"
Hot Swappable
Yes
Input voltage
120 V AC
Limited Warranty
2 Year
Load Capacity
2200 VA/1920 W
Manufacturer
Tripp Lite by Eaton
Manufacturer Part Number
SMART2500XLHG
Manufacturer Website Address
http://www.tripplite.com
Marketing Information
UL 60601-1 compliance is required for UPS systems within patient care areas. Get complete compliant power protection with Tripp Lite's SMART2500XLHG SmartPro® Medical UPS System. The SMART2500XLHG provides a high load capacity 2200VA/1920W full UL 60601-1 3rd edition compliance. Protects connected medical equipment against data loss downtime and equipment damage due to power outages voltage fluctuations and transient surges. It features a USB port input locking clamp equipotential earth bonding lug 4 NEMA 5-15/20R outlets and 4 IEC C13 outlets for universally adaptable outlet options. The SMART2500XLHG offers a complete power protection solution for clinical labs diagnostic imaging ophthalmology medical equipment imaging and other devices requiring medical grade protection. With built-in Faraday shielding the SMART2500XLHG provides full line isolation and reduces the cumulative leakage current of connected equipment to less than 100 µA for optimal safety in patient care areas. Full isolation also provides continuous noise filtering and enhanced common mode surge suppression. Featuring advanced line-interactive operation it provides regulated 120V nominal output without using battery power during brownouts and overvoltages. Large internal batteries support connected equipment during blackouts and optional external battery packs (BP48V24-2U and BP48V60RT-3U) provide extended runtime tailored to your application. The SMART2500XLHG features a USB communication port that works with included PowerAlert software to provide UPS and site power monitoring plus automatic file saves and safe unattended shutdown of connected equipment in the event of a prolonged power failure. Application Usage This UPS contains a lead acid battery designed to be connected continuously to an AC power source except during brief power outages. It is not intended for frequent charge/discharge cycles such as mobile cart applications where the UPS is often disconnected from the power source. Using the SMART2500XLHG in this type of application will void the battery warranty
Package Contents
- SMART 2500XLHG Medical Grade Tower UPS System
- Poweralert Software CD
- Warranty Information
- Instruction Manual
- USB Cable
- DB9 Cable
Plug/Connector Type
IEC 60320 C20
Product Line
SmartPro
Product Name
SMART 2500XLHG Medical Grade Tower UPS System
Product Type
Line-interactive UPS
Receptacle Type
NEMA 5-15/20R
Receptacle Type
IEC 60320 C13
Software Included
PowerAlert Software
Transfer Time
4 ms
Typical Battery Recharge Time
4.50 Hour
Weight (Approximate)
73.30 lb
Width
8.9"
