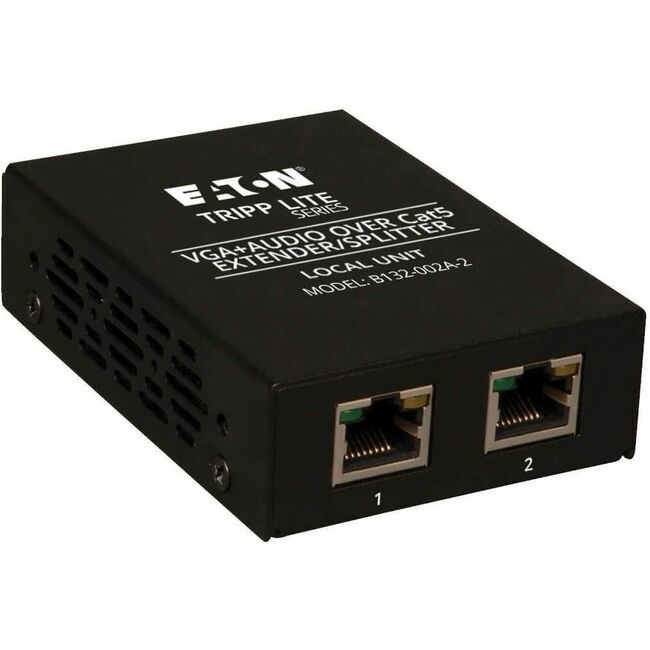

Tripp Lite 2-Port VGA with Audio over Cat5 / Cat6 Extender Splitter, Transmitter
Tripp Lite 2-Port VGA with Audio over Cat5 / Cat6 Extender Splitter, Transmitter - with EDID Copy, 1920x1440 at 60Hz
| $101.84 | Retail $148.80 |
- Splits a single VGA Video and Audio signal into 2
- EDID copy feature ensures optimal display compatibility
- Extends a 1920 x 1440 (60Hz) Video and Audio signal up to 500 ft., or a 1024 x 768 (60Hz) Video and Audio signal up to 1,000 ft., when using 24Awg, Solid Wire Cat5e/6 cable, such as Tripp Lite's N022-01K-GY (Cat5) and N222-01K-GY (Cat6)
- For optimal image quality between 500 and 1,000 ft., use Zero-Skew cable, such as Tripp Lite P524-01K
- Can further expand the range and number of monitors/speakers by adding B132-110A repeaters
- Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases
By:
Tripp Lite
Manufacturer:
Tripp Lite by Eaton
Product ID:
76464
Item:
B132-002A-2
UPC Code:
037332178411
Our Part #
TL7676
Condition
New
$101.84EA
$148.80
$148.80
Availability
Only 183 Left In Stock
Product description
Tripp Lite 2-Port VGA with Audio over Cat5 / Cat6 Extender Splitter, Transmitter - with EDID Copy, 1920x1440 at 60Hz
with EDID Copy, 1920x1440 at 60Hz
Specifications
Number of Input Devices Supported
1
Transmitter Depth
3.70"
Transmitter Height
1"
Transmitter Weight (Approximate)
7.20 oz
Transmitter Width
2.50"
UPC Alternates
037332178411 613326256206 724627337553 995477954447
Brand Name
Tripp Lite
Certifications & Standards
TAA
Connectivity technology
Wired
Country of origin
Taiwan
Environmental Certification
RoHS
Environmentally Friendly
Yes
Form factor
Rack-mountable
Form factor
Pole-mountable
Form factor
Wall Mountable
Input voltage
110 V AC
Input voltage
220 V AC
Limited Warranty
1 Year
Manufacturer
Tripp Lite by Eaton
Manufacturer Part Number
B132-002A-2
Manufacturer Website Address
http://www.tripplite.com
Marketing Information
Tripp Lite's B132-002A-2 allows you to split a single VGA Video and Audio signal into 2. Along with a B132-100A or B132-100A-WP-1 remote receiver unit you can extend a 1920 x 1440 (60Hz) Video and Audio signal up to 500 ft. or a 1024 x 768 (60Hz) Video and Audio signal up to 1000 ft. when using 24Awg Solid Wire Cat5e/6 cable such as Tripp Lite's N022-01K-GY (Cat5) and N222-01K-GY (Cat6).
The range and number of monitors/speakers can be further expanded by adding B132-110A repeater units. Connect up to 4 remote units in a repeater chain (3 repeaters and 1 receiver) with a set of monitor and speakers at each location. A 1920 x 1440 (60Hz) Video and Audio signal can be extended up to 500 ft. from the first repeater in the chain to the last receiver. A 1024 x 768 (60Hz) Video and Audio signal can be extended up to 1000 ft. from the first repeater in the chain to the last receiver.
For optimal video image quality between 500 and 1000 ft. use Zero-Skew cable such as Tripp Lite P524-01K. The transmitter unit features functionality that allows for the EDID information from a connected display to be copied and sent to the connected computer providing optimal compatibility. Includes mounting hardware that allows unit to be wallmounted rackmounted or pole mounted. Ideal for digital signage situations such as retail schools churches etc. Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases.
The range and number of monitors/speakers can be further expanded by adding B132-110A repeater units. Connect up to 4 remote units in a repeater chain (3 repeaters and 1 receiver) with a set of monitor and speakers at each location. A 1920 x 1440 (60Hz) Video and Audio signal can be extended up to 500 ft. from the first repeater in the chain to the last receiver. A 1024 x 768 (60Hz) Video and Audio signal can be extended up to 1000 ft. from the first repeater in the chain to the last receiver.
For optimal video image quality between 500 and 1000 ft. use Zero-Skew cable such as Tripp Lite P524-01K. The transmitter unit features functionality that allows for the EDID information from a connected display to be copied and sent to the connected computer providing optimal compatibility. Includes mounting hardware that allows unit to be wallmounted rackmounted or pole mounted. Ideal for digital signage situations such as retail schools churches etc. Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases.
Maximum Operating Distance
1000 ft
Maximum Video Resolution
1920 x 1440
Media Type Supported
Twisted Pair
Number of Network (RJ-45) Ports
2
Package Contents
- VGA + Audio over Cat5 Extender 2-Port Transmitter
- Mounting Hardware
- External Power Supply (Input: 100-240V 50/60Hz 1.5A Output: 12.6V 3A)
- Owner's Manual
Product color
Black
Product Name
VGA + Audio over Cat5 Extender 2-Port Transmitter
Product Type
Video Extender Transmitter
Twisted Pair Cable Standard
Category 6
