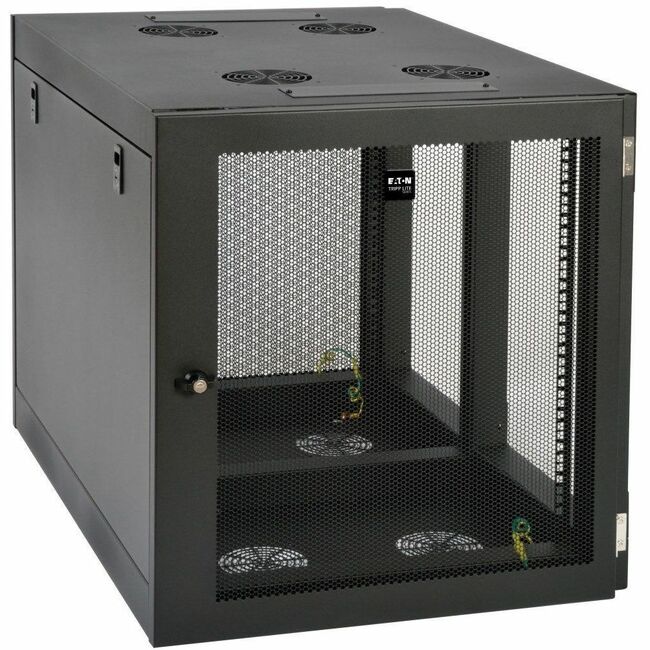

Tripp Lite 12U Wall Mount Rack Enclosure Server Cabinet Side Mount Wallmount
Tripp Lite 12U Wall Mount Rack Enclosure Server Cabinet Side Mount Wallmount - For Server - 12U Rack Height x 19" Rack Width x 32.50" Rack Depth - Wall Mountable - Black - 500 lb Static/Stationary Weight Capacity
| $665.87 | Retail $1,038.96 |
- Maximum load capacity of 500 lb.
- Locking steel cabinet vented at sides, top and bottom
- Flow-through ventilation keeps equipment cool
- Secures 12U of 19 in. rack equipment up to 32.5 in. deep
By:
Tripp Lite
Manufacturer:
Tripp Lite by Eaton
Product ID:
76992
Item:
SRW12UHD
UPC Code:
037332183323
Our Part #
XT0132
Condition
New
$665.87EA
$1,038.96
$1,038.96
Availability
Only 612 Left In Stock
Product description
Tripp Lite 12U Wall Mount Rack Enclosure Server Cabinet Side Mount Wallmount - For Server - 12U Rack Height x 19" Rack Width x 32.50" Rack Depth - Wall Mountable - Black - 500 lb Static/Stationary Weight Capacity
For Server - 12U Rack Height x 19" Rack Width x 32.50" Rack Depth - Wall Mountable - Black - 500 lb Static/Stationary Weight Capacity
Specifications
Rack Depth
32.50"
Rack Width
19"
Static/Stationary Weight Capacity
500 lb
UPC Alternates
037332183323 831052020636
Application/Usage
Server
Brand Name
Tripp Lite
Certifications & Standards
EIA-310-E
Country of origin
China
Depth
36.2"
Environmental Certification
RoHS
Environmentally Friendly
Yes
Features
Vented Top
Features
Removable Side Panel
Features
Adjustable Mounting Rails
Features
Removable Door
Form factor
Wall Mountable
Height
26.5"
Limited Warranty
5 Year
Manufacturer
Tripp Lite by Eaton
Manufacturer Part Number
SRW12UHD
Manufacturer Website Address
http://www.tripplite.com
Marketing Information
The SRW12UHD SmartRack 12U Heavy-Duty Low-Profile Server-Depth Side-Mount Wall-Mount Rack Enclosure Cabinet is designed to house EIA-standard 19-inch rack equipment in network wiring closets retail locations classrooms back offices and other areas with limited floor space where you need equipment to be secure organized and out of the way. Constructed from heavy-duty steel with a durable black powder-coated finish the cabinet has a maximum load capacity of 500 pounds.Because the low-profile cabinet mounts sideways it extends less than 25 inches from the wall while housing equipment up to 32.5 inches deep including 1U servers UPS systems battery packs network switches and patch panels. The removable front panel and side doors lock securely to help prevent damage tampering or theft. The top bottom and sides are vented which allows air to flow freely and keep equipment cool. Convenient top and bottom ports allow easy cable routing.The SRW12UHD comes fully assembled and ready to mount to the wall. Square and threaded mounting holes and numbered rack spaces make equipment installation easy. The vertical mounting rails adjust in 7/8-inch increments.
Package Contents
- SmartRack Heavy-Duty Side-Mount Wall-Mount Rack Enclosure Cabinet
- 20 x M6 Cage Nuts
- 20 x M6 Equipment Mounting Screws
- 20 x M6 Washers
- 20 x 12-24 Equipment Mounting Screws
- 1 x Key Set
- Owner's Manual
Product color
Black
Product Line
SmartRack
Product Name
SmartRack Heavy-Duty Side-Mount Wall-Mount Rack Enclosure Cabinet
Product Type
Rack Cabinet
Rack Height
12U
Weight (Approximate)
101.40 lb
Width
24.8"
