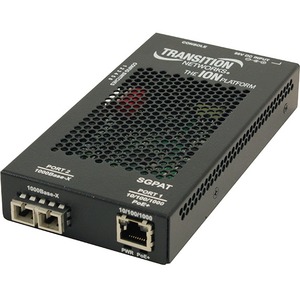

Transition Networks SGPAT1013-105 Transceiver/Media Converter
Transition Networks SGPAT1013-105 Transceiver/Media Converter - Network (RJ-45) - 1x PoE+ (RJ-45) Ports - 1 x SC Ports - Multi-mode - Gigabit Ethernet - 1000Base-SX/LX, 10/100/1000Base-T, 1000Base-X - Wall Mountable, Rail-mountable, Standalone, Desktop
| $490.19 | Retail $625.00 |
- Wall mount, DIN Rail, or table top installation
- External AC/DC power supply included with country specific power cord
- 2-port 10/100/1000 copper to fiber media conversion with IEEE 802.3at PoE+ on the copper port
- Supports full 30 Watts of power to each twisted pair port
- Various fiber versions available supporting fixed SC, fixed LC, and open SFP slots
- 3-port version offers (1) RJ-45 PoE+ port and (2) open SFP slots, device can be configured as a 3-port switch or as a 2-port media converter with redundant fiber links
- 4-port version offers (2) RJ-45 PoE+ ports and (2) open SFP slots, device can be configured as a 4-port switch (with or without redundant fiber) or as two independent PoE+ media converters
- SFP slots can support 100Base-FX, 1000Base-X, or SGMII based (MSA compliant) SFP modules
- Supports Auto-Negotiation, Auto MDI/MDI-X, Active Link Pass Through (ALPT), and Remote Fault Detection
- Jumb
By:
Transition Networks
Manufacturer:
Transition Networks, Inc
Product ID:
78847
Item:
SGPAT1013-105-NA
UPC Code:
648177041053
Our Part #
8Y1636
Condition
New
$490.19EA
$625.00
$625.00
Availability
Only 18 Left In Stock
Product description
Transition Networks SGPAT1013-105 Transceiver/Media Converter - Network (RJ-45) - 1x PoE+ (RJ-45) Ports - 1 x SC Ports - Multi-mode - Gigabit Ethernet - 1000Base-SX/LX, 10/100/1000Base-T, 1000Base-X - Wall Mountable, Rail-mountable, Standalone, Desktop
Network (RJ-45) - 1x PoE+ (RJ-45) Ports - 1 x SC Ports - Multi-mode - Gigabit Ethernet - 1000Base-SX/LX, 10/100/1000Base-T, 1000Base-X - Wall Mountable, Rail-mountable, Standalone, Desktop
Specifications
Fiber Mode Supported
Multi-mode
Fiber Optic Cable Standard
50/125 µm
Fiber Optic Cable Standard
62.5/125 µm
Fiber Optic Wavelength
850 nm
Network (RJ-45)
Yes
Number of PoE+ (RJ-45) Ports
1
UPC Alternates
648177041053
Brand Name
Transition Networks
Country of origin
Taiwan
Depth
4.8"
Ethernet Technology
Gigabit Ethernet
Form factor
Desktop
Form factor
Wall Mountable
Form factor
Standalone
Form factor
Rail-mountable
Height
1"
Limited Warranty
Lifetime
Manufacturer
Transition Networks Inc
Manufacturer Part Number
SGPAT1013-105-NA
Manufacturer Website Address
http://www.transition.com
Marketing Information
The SGPAT10xx-105 is a 10/100/1000Base-T to 1000Base-SX/LX Gigabit Ethernet Media Converter which easily and affordably facilitates the connection between different types of network cabling while also injecting PoE+ power through the copper RJ-45 port.
Being a Power Sourcing Equipment (PSE) device the SGPAT media converter combines data received over a fiber optic link with 56VDC input power to provide power and data to a Powered Device (PD) over twisted pair cabling while complying with the IEEE 802.3at PoE+ standard which is also backwards compatible with the IEEE 802.3af PoE standard.
The converter is available in 2-port 3-port and 4-port versions and includes PD signature sensing and power monitoring features. Other features include over-current protection under-current protection and fault protection input. Active Link Pass Through (ALPT) is supported which is an automatically activated version of Link Pass Through (LPT) that allows the converter to detect the loss of Receive (Rx) signals on either fiber or copper port and propagate the failure to the end devices preventing the media converter from isolating those link failures. During a Link Pass Through event the Auto Power Reset feature will re-set the power to the end PD device ensuring it is ready to go when the LPT event is corrected.
Media Type Supported
Twisted Pair
Media Type Supported
Optical Fiber
Network Technology
10/100/1000Base-T
Network Technology
1000Base-SX/LX
Network Technology
1000Base-X
Package Contents
- SGPAT1013-105 Transceiver/Media Converter
- Power Cord (North America)
Power source
AC Adapter
Product Model
SGPAT1013-105
Product Name
SGPAT1013-105 Transceiver/Media Converter
Product Type
Transceiver/Media Converter
Total Number of Ports
2
Weight (Approximate)
2 lb
Width
3.3"
