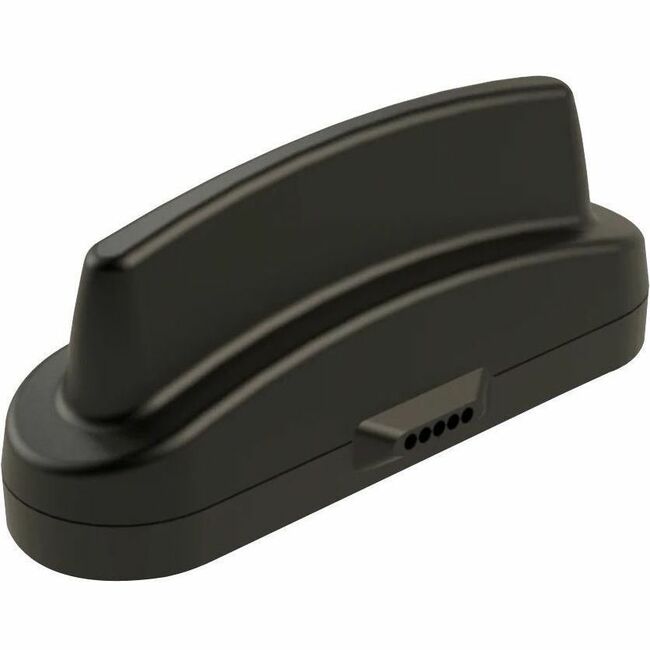

Panorama Antennas LPAMM-BC3G-26 Magnetic MiMo Cellular Antenna
Panorama Antennas LPAMM-BC3G-26 Magnetic MiMo Cellular Antenna - 698 MHz to 960 MHz, 1710 MHz to 3800 MHz, 1562 MHz to 1612 MHz - 26 dB - Cellular Network, GPS - Black - Magnetic Mount - Omni-directional - SMA Connector
| $63.41 | Retail $77.18 |
- Eases up the installation procedure thanks to its 360-degree horizontal pattern
- Offers up to 26 dB gain
- Widely used in cellular network
- Provides ease of installation without sacrificing performance one bit
By:
Panorama Antennas
Manufacturer:
Panorama Antennas Ltd
Product ID:
79228
Item:
LPAMM-BC3G-26-3SP
Our Part #
7HQ018
Condition
New
$63.41EA
$77.18
$77.18
Availability
Only 54 Left In Stock
You may be also interested
Product description
Panorama Antennas LPAMM-BC3G-26 Magnetic MiMo Cellular Antenna - 698 MHz to 960 MHz, 1710 MHz to 3800 MHz, 1562 MHz to 1612 MHz - 26 dB - Cellular Network, GPS - Black - Magnetic Mount - Omni-directional - SMA Connector
698 MHz to 960 MHz, 1710 MHz to 3800 MHz, 1562 MHz to 1612 MHz - 26 dB - Cellular Network, GPS - Black - Magnetic Mount - Omni-directional - SMA Connector
Specifications
Antenna Gain
26 dB
Directivity
Omni-directional
Operating Frequency Range
1710 MHz to 3800 MHz
Operating Frequency Range
1562 MHz to 1612 MHz
Operating Frequency Range
698 MHz to 960 MHz
Application/Usage
GPS
Application/Usage
Cellular Network
Brand Name
Panorama Antennas
Connector Type
SMA
Depth
5.91"
Form factor
Magnetic Mount
Height
2.40"
Manufacturer
Panorama Antennas Ltd
Manufacturer Part Number
LPAMM-BC3G-26-3SP
Manufacturer Website Address
http://www.panorama-antennas.com
Marketing Information
The LP[G]AM-BC3G-26 range has been designed to provide MiMo Cellular / LTE antenna function for IoT and M2M applications.
- Magnetic mount
- 2 x 2 MiMo Cellular/LTE
- Cost-effective solution for M2M and IoT applications
- Optional GPS/GNSS Element
The compact robust low-profile housing is weatherproof and contains two antenna elements with effective isolation and correlation covering all current global cellular and LTE bands in freq. range 698-960/1710-3800MHz. The LG version includes an active GPS/GNSS/Galileo/Beidou antenna for applications which require position or timing function.
The antenna can be fitted on a non- conductive panel if required and offers easy quick secure and weatherproof installation with the single hole mounting bush and acrylic adhesive sealing pad. Supplied with integrated 3m (10') cables and SMA plug connectors the antenna will offer plug and play connectivity with many different terminals.
Product color
Black
Product Model
LPAMM-BC3G-26
Product Name
LPAMM-BC3G-26 Magnetic MiMo Cellular Antenna
Product Type
Antenna
Width
1.77"
