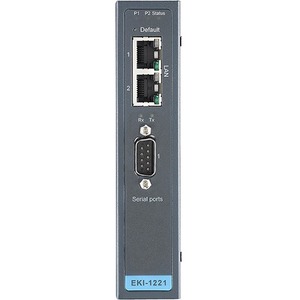

Advantech 1-port Modbus Gateway
Advantech 1-port Modbus Gateway - Twisted Pair - 2 x Network (RJ-45) - 1 x Serial Port - 10/100Base-TX - Fast Ethernet - Rail-mountable, Wall Mountable
| $308.54 |
- Provides 2 x 10/100 Mbps Ethernet ports for LAN redundancy
- Integration of Modbus TCP and Modbus RTU/ASCII networks
- Supports up to 921.6 kbps, and any baud rate setting
- support up to 16 connections on each serial port under Modbus Master mode and 32 sessions under Modbus Slave mode.
- Software selectable RS-232/422/485 communication
- Mounts on DIN-rail and Wall mount
- Supports surge protection for D.C. power ports with line to line 2 KV, and line to earth 4 KV; for signal ports with 4 KV.
- Built-in 15 KV ESD protection for all serial signals
- Automatic RS-485 data flow control
By:
Advantech
Manufacturer:
Advantech Co., Ltd
Product ID:
79415
Item:
EKI-1221-CE
Our Part #
5NM866
Condition
New
$308.54EA
Availability
Only 25 Left In Stock
Product description
Advantech 1-port Modbus Gateway - Twisted Pair - 2 x Network (RJ-45) - 1 x Serial Port - 10/100Base-TX - Fast Ethernet - Rail-mountable, Wall Mountable
Twisted Pair - 2 x Network (RJ-45) - 1 x Serial Port - 10/100Base-TX - Fast Ethernet - Rail-mountable, Wall Mountable
Specifications
Number of Serial Ports
1
Brand Name
Advantech
Country of origin
Taiwan
Depth
3.7"
Environmental Certification
RoHS
Environmentally Friendly
Yes
Ethernet Technology
Fast Ethernet
Form factor
Rail-mountable
Form factor
Wall Mountable
Height
5.5"
Limited Warranty
5 Year
Manufacturer
Advantech Co. Ltd
Manufacturer Part Number
EKI-1221-CE
Manufacturer Website Address
http://www.advantech.com
Marketing Information
The EKI-1200 series Modbus gateways are bi-directional gateways for integrating new and existing Modbus/RTU and Modbus/ASCII serial devices to newer TCP/IP networked-based devices. The EKI-1221/1222/1224 feature two independent Ethernet ports and MAC addresses to provide redundancy and reliability. They provide a simple and cost-effective way to bring remote management and data accessibility to thousands of devices that cannot otherwise connect to a network. The EKI-1221/1222/1224 allow users to select master or slave operation mode for each serial port. In addition to allowing an Ethernet master to control serial slaves they also allow serial masters to control Ethernet slaves.
Media Type Supported
Twisted Pair
Network Standard
10/100Base-TX
Number of Network (RJ-45) Ports
2
Product Model
EKI-1221
Product Name
1-port Modbus Gateway
Product Series
EKI-1200
Product Type
Device Server
Weight (Approximate)
1.04 lb
Width
1.5"
