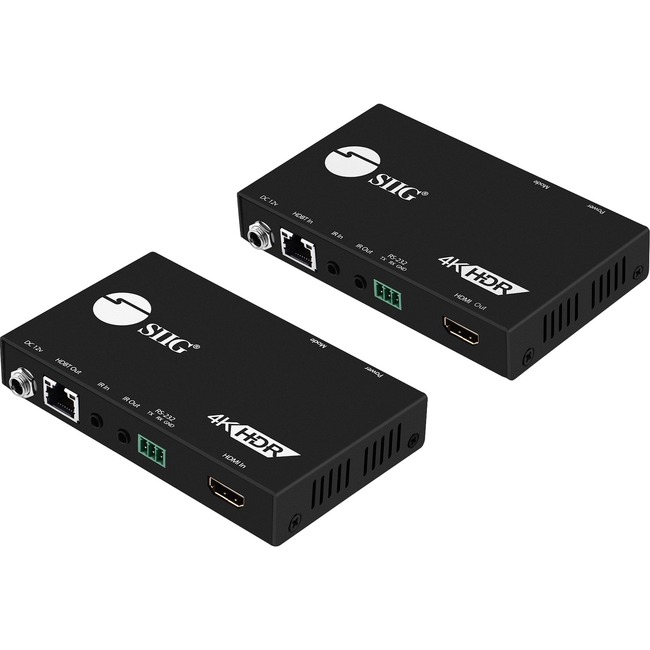

SIIG 4K HDR HDMI 2.0 HDBaseT Extender Over Single Cat5e/6 with RS-232 & IR - 100m
SIIG 4K HDR HDMI 2.0 HDBaseT Extender Over Single Cat5e/6 with RS-232 & IR - 100m - Bi-directional IR Sensors - TAA Compliant
| $335.44 | Retail $379.99 |
- Compliant with HDMI 2.0 and HDCP 2.2
- Supports EDID bypass, CEC, Deep Color 36bit
- Supports 3840x2160@60Hz 4:4:4 8bit
- Supports 3840x2160@60Hz HDR10 4:2:0 10bit
- Video bandwidth up to 18Gbps (600MHz per channel)
- Video latency: <20µs
- Auto skew equalization
- Audio support: DTS-HD Master Audio and Dolby True HD
- Bi-directional IR pass-through supports full frequency IR signal from 20KHz to 60KHz
- Full Duplex RS-232 control up to 115,200 bps through connector
By:
SIIG
Manufacturer:
SIIG, Inc
Product ID:
79438
Item:
CE-H23311-S1
UPC Code:
662774041155
Our Part #
8JX683
Condition
New
$335.44EA
$379.99
$379.99
Availability
Only 10 Left In Stock
Product description
SIIG 4K HDR HDMI 2.0 HDBaseT Extender Over Single Cat5e/6 with RS-232 & IR - 100m - Bi-directional IR Sensors - TAA Compliant
Bi-directional IR Sensors - TAA Compliant
Specifications
Transmitter Depth
4.70"
Transmitter Height
0.80"
Transmitter Weight (Approximate)
9.28 oz
Transmitter Width
2.80"
UPC Alternates
662774041155 818215001831
Brand Name
SIIG
Connectivity technology
Wired
Country of origin
Taiwan
Environmental Certification
RoHS
Environmentally Friendly
Yes
Form factor
Wall Mountable
Graphics Modes
4K
Limited Warranty
3 Year
Manufacturer
SIIG Inc
Manufacturer Part Number
CE-H23311-S1
Manufacturer Website Address
http://www.siig.com
Marketing Information
Extends HDMI audio and video signals RS232 control IR control up to 100 meters over a single CAT5e/6 cable with industry recognized HDBaseT technology
- Extends HDMI 2.0 audio and video signal from your HDMI source to a remote HDMI display up to 330ft (100m) away at Full HD 1080p or 230ft (70m) at 3840x2160@60Hz (4:4:4 8bit/HDR10 4:2:0 10bit) through a single premium quality CAT5e/6 cable
- Delivers crystal clear picture quality with resolution up to 3840x2160 @60Hz YUV444 8bit and HDR 3840x2160 @60Hz YUV420 10bit
- Pure unaltered uncompressed 7.1ch digital HDMI over CAT cable transmission DTS-HD Master Audio and Dolby TrueHD high bit rate audio support
- Supports PoC (Power over Cable) technology which allows both the transmitter and receiver units to be powered through only one power adapter
- Bi-directional IR sensors allow you to remotely control the HDMI source device from the remote display side or control the remote display from the source device side
- High quality metal housing with cooling slots provide excellent ESD and electromagnetic protection plus excellent heat dissipation and cooling for stable operation during extended hours of use
- Slim profile design easily adopts into versatile application environment wall mountable housing for easy and varied installation requirements
Maximum Operating Distance
328.08 ft
Maximum Video Resolution
3840 x 2160
Media Type Supported
Twisted Pair
Number of HDMI Inputs
1
Number of Network (RJ-45) Ports
2
Package Contents
- 1 x Transmitter (TX)
- 1 x Receiver (RX)
- Power Adapter
- IR Blaster Extension Cable & IR Receiver Extension Cable
- 4 x Mounting Ears & Screw kit (8+4)
- User Reference Guide
Product Name
4K HDR HDMI 2.0 HDBaseT Extender Over Single Cat5e/6 with RS-232 & IR - 100m
Product Type
Video Extender Transmitter/Receiver
Twisted Pair Cable Standard
Category 6
