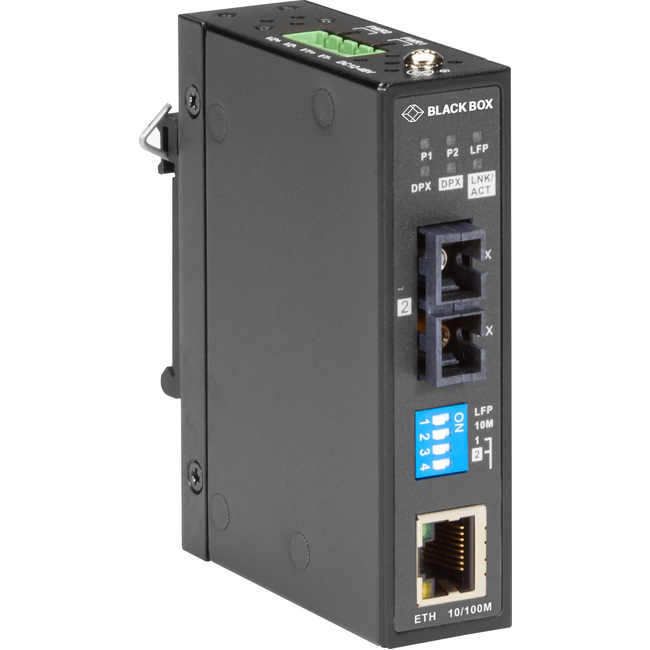

Black Box LMC280 Series Fast Ethernet Industrial Media Converter - Single-Mode SC
Black Box LMC280 Series Fast Ethernet Industrial Media Converter - Single-Mode SC - 1 x Network (RJ-45) - 1 x SC Ports - DuplexSC Port - Single-mode - Fast Ethernet - 10/100Base-T, 100Base-FX - Rail-mountable, Wall Mountable - TAA Compliant
| $230.81 | Retail $249.75 |
- Convert 10/100Base-T(X) to 100BaseFX
- Auto-negotiation and auto-MDI/MDIX
- Supports Ethernet to fiber port
- DIN rail or wall mount
- High reliability and rigid IP-30 housing
- Link fault pass through
By:
Black Box
Manufacturer:
Black Box Corporation
Product ID:
80594
Item:
LMC282A
UPC Code:
822088143079
Our Part #
43201553
Condition
New
$230.81EA
$249.75
$249.75
Availability
Only 9 Left In Stock
Product description
Black Box LMC280 Series Fast Ethernet Industrial Media Converter - Single-Mode SC - 1 x Network (RJ-45) - 1 x SC Ports - DuplexSC Port - Single-mode - Fast Ethernet - 10/100Base-T, 100Base-FX - Rail-mountable, Wall Mountable - TAA Compliant
1 x Network (RJ-45) - 1 x SC Ports - DuplexSC Port - Single-mode - Fast Ethernet - 10/100Base-T, 100Base-FX - Rail-mountable, Wall Mountable - TAA Compliant
Specifications
Fiber Mode Supported
Single-mode
Fiber Optic Wavelength
1310 nm
Maximum Distance Supported
18.64 Mile
SC Port Type
Duplex
UPC Alternates
822088143079 974573256839 995478682554
Brand Name
Black Box
Country of origin
Taiwan
Depth
2.8"
Environmental Certification
WEEE
Environmental Certification
RoHS
Environmentally Friendly
Yes
Ethernet Technology
Fast Ethernet
Form factor
Wall Mountable
Form factor
Rail-mountable
Height
3.7"
Limited Warranty
3 Year
Manufacturer
Black Box Corporation
Manufacturer Part Number
LMC282A
Manufacturer Website Address
http://www.blackbox.com
Marketing Information
Extend Your Network with Fiber
The Fast Ethernet Industrial Media Converter provides a cost-effective way to add fiber to your existing network infrastructure. It converts 10/100Base-T(X) to 100BaseFX with ease. Additionally this media converter supports MDI/MDIX auto detection so you do not need to use crossover wires.
Designed for the Toughest Environments
This media converter provides consistent network performance in the harshest work environments on earth. It features rigid IP-30 housing an operating temperature range of -40° to 158° F and has dual power inputs that each accept a wide voltage range (12 to 48 VDC).
Supports Link Fault Pass-Through
When one side of your network link fails the other side continues transmitting packets and waits for a response that never arrives from the disconnected side. Link fault pass-through forces the active link to shut down as soon as it notices the other link has failed giving the application software a chance to fix the issue. This maximizes the uptime of your network.
Media Type Supported
Optical Fiber
Media Type Supported
Twisted Pair
Network Technology
10/100Base-T
Network Technology
100Base-FX
Number of Network (RJ-45) Ports
1
Power source
DC
Product Name
LMC280 Series Fast Ethernet Industrial Media Converter - Single-Mode SC
Product Series
LMC280
Product Type
Transceiver/Media Converter
Total Number of Ports
2
Weight (Approximate)
7.68 oz
Width
1"
