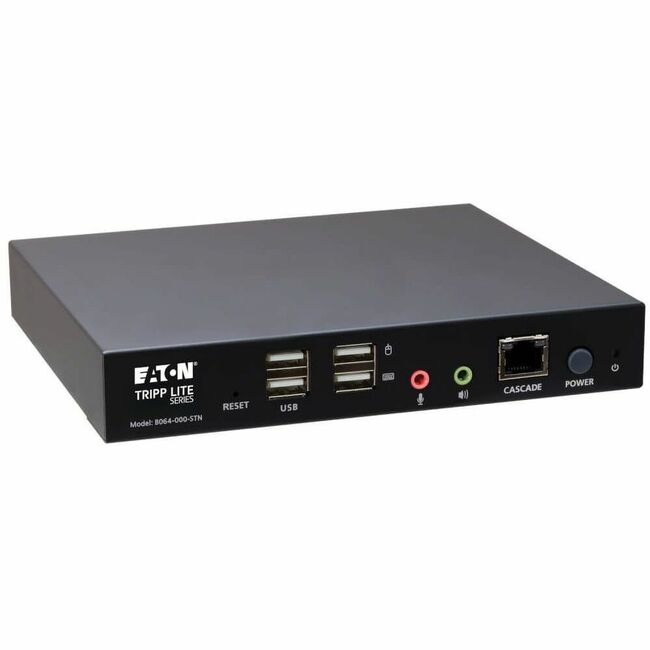

Tripp Lite KVM Over IP Remote User Console Station Java Free B064-IPG KVMs

Features

Monitor and Control Your Tripp Lite KVM over IP Switches without a Computer

This enterprise-level user console station gives you remote access to your Tripp Lite B064-IPG KVM switches without the use of a PC laptop or notebook computer. With no operating system you no longer have to worry about forced system or software updates. You're also protected against the threats of viruses spam phishing and malware by allowing access only to connected servers and not email apps malicious websites or any other Internet-based potential threats to your system. The Java-free platform lets you avoid certain access issues and security vulnerabilities.

Preview up to 64 Servers at the Same Time with Panel Array Mode

Panel array mode lets you monitor and manage the video output from as many as 64 connected servers at the same time all on one HDMI monitor. By previewing every connected server simultaneously the B064-000-STN is ideal for network applications that require constant monitoring such as surveillance and security. The HDMI port supports high-definition resolutions up to 1920 x 1200 including 1080p at 60 Hz.

Connect Storage Media to a Target Server Anywhere on the Network with Virtual Media

The Virtual Media feature allows a removable USB drive on a user's system to appear and act as if it were installed on the remote server. Up to two virtual media choices can be mounted. Once mounted you can treat the virtual media as if they really exist on the remote server. Drag and drop files to or from them open files on the remote server for editing and save them to the redirected media. The B064-000-STN features two USB 2.0 ports for peripherals as well as inputs for a USB keyboard and mouse and two audio jacks.

Designed for Flexible Placement and Installation

Four rubber feet are also included for resting the unit on a flat level surface such as a shelf table or desk. You can also use the included mounting plate to install the console server on a wall or in a space-saving 0U rear-of-the-rack configuration. The B064-000-STN supports hot-plugging which allows you to connect disconnect add or remove components without having to shut down the unit.

Compatible with Tripp Lite's B064-IPG-Series IP KVM Switches

The B064-000-STN is designed to work with the following Tripp Lite KVMs: B064-008-01-IPG B064-016-01-IPG B064-016-02-IPG B064-016-04-IPG B064-032-01-IPG B064-032-02-IPG B064-032-04-IPG and B064-064-08-IPG. It supports boundless switching when cascaded with another B064-000-STN console station via user-supplied Cat5e/6 cabling.

TAA-Compliant for GSA Schedule Purchases

The B064-000-STN is compliant with the Federal Trade Agreements Act (TAA) which makes it eligible for GSA (General Services Administration) Schedule and other federal procurement contracts.

Typical Applications

• Monitor and control Tripp Lite B064-IPG KVM switches from a remote centralized location

System Requirements

• Works with Tripp Lite B064-IPG KVMs including B064-008-01-IPG B064-016-01-IPG B064-016-02-IPG B064-016-04-IPG B064-032-01-IPG B064-032-02-IPG B064-032-04-IPG and B064-064-08-IPG
• HDMI monitor
• USB keyboard/mouse
• Wired Ethernet network

• KVM over IP Remote-User Console Station
• 4 x Rubber feet
• Mounting plate
• External power supply with 4 ft. cord and C13 to NEMA 5-15P input (Input: 100-240V 50/60 Hz 0.7A; Output: 5V 4A)
• Owner's Manual
