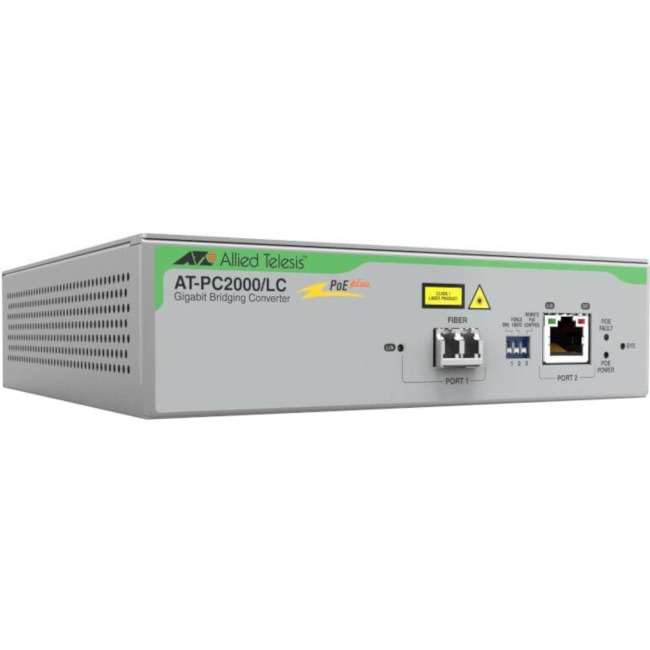

Allied Telesis PoE+ to Fiber Switching Media Converter
Allied Telesis PoE+ to Fiber Switching Media Converter - Network (RJ-45) - 1x PoE+ (RJ-45) Ports - 1 x LC Ports - Multi-mode - Gigabit Ethernet - 10/100/1000Base-T, 1000Base-SX - Standalone, Wall Mountable - TAA Compliant
| $464.26 |
- Convert speed as well as media type
- IEEE 802.3at Power over Ethernet (POE+) compliant
- Supplies up to 30W of PoE+ power
- Support 100 and 1000Mbps fiber SFP modules (AT-PC2000/SP)
- Auto MDI/MDI-X
- Smart Missing Link ( (SML)
- Supports jumbo frames, up to 10K bytes
- Support for multi-mode fiber
- 4K MAC address tables
- Store-and-forward switching mode
By:
Allied Telesis
Manufacturer:
Allied Telesis, Inc
Product ID:
81765
Item:
AT-PC2000/LC-960
UPC Code:
767035224381
Our Part #
8RP479
Condition
New
$464.26EA
Availability
Only 13 Left In Stock
You may be also interested
Product description
Allied Telesis PoE+ to Fiber Switching Media Converter - Network (RJ-45) - 1x PoE+ (RJ-45) Ports - 1 x LC Ports - Multi-mode - Gigabit Ethernet - 10/100/1000Base-T, 1000Base-SX - Standalone, Wall Mountable - TAA Compliant
Network (RJ-45) - 1x PoE+ (RJ-45) Ports - 1 x LC Ports - Multi-mode - Gigabit Ethernet - 10/100/1000Base-T, 1000Base-SX - Standalone, Wall Mountable - TAA Compliant
Specifications
Fiber Mode Supported
Multi-mode
Fiber Optic Cable Standard
62.5/125 µm
Fiber Optic Cable Standard
50/125 µm
Fiber Optic Wavelength
850 nm
Number of PoE+ (RJ-45) Ports
1
UPC Alternates
767035224381
Brand Name
Allied Telesis
Country of origin
Singapore
Depth
5.9"
Environmental Certification
RoHS
Environmental Certification
WEEE
Environmental Certification
REACH
Environmentally Friendly
Yes
Ethernet Technology
Gigabit Ethernet
Form factor
Standalone
Form factor
Wall Mountable
Height
1.6"
Manufacturer
Allied Telesis Inc
Manufacturer Part Number
AT-PC2000/LC-960
Manufacturer Website Address
http://www.alliedtelesis.com
Marketing Information
Powering Remote Devices
Allied Telesis PC200/2000 Series media converters are the ideal solution for powering remote devices such as IP phones video cameras wireless access points etc. which are more than 100m from a Power over Ethernet switch.
The PC2000/SP features a 100MB or 1000MB SFP port and a 10/100/1000T twisted-pair port. Allied Telesis offers a wide variety of SFPs featuring multimode single mode and BiDi optics.
The fixed fiber-optic port PC200x models features an SC connector for 100FX and 1000SX or LC connector for the 1000SX capable of operating at a distance of up to two kilometers over multi-mode fiber. The twisted-pair port has an RJ-45 connector with a maximum operating distance of 100 meters. In addition to transmitting data the twisted-pair port also injects power down the cable allowing a remote PoE+ Powered Device to operate without the need of any additional power source. All PoE+ Devices (IEEE802.3at compliant) are supported as the PC200x PoE+ Series can deliver a full 30W of power to the remote device.
Remote Power Cycle
The PC200/2000 Series offers feature where when the fiber port is dropped the TX PoE+ port will cycle power. It allows a remote administrator to login in a switch and disable the switch alliedtelesis.com port in which the PC200/2000 Series is attached and will have the remote PoE+ device to lose power. This can be useful when an administrator needs to reset a remote device without actually physical going to the location.
VLAN Support
Many backbone switch products support the industry-standard IEEE 802.1Q specification for Virtual LANs (VLANs) that sends extra-long data packets on the network. PC200/2000 Series switches are fully compatible with these long packets enabling them to be used in modern networks. Switches not supporting this feature will discard these extra-long packets making them unsuitable for modern networks.
Small and Flexible
The small size and internal power supply of the PC200/2000 Series allows them to be used almost anywhere.
Smart MissingLink™ (SML)
The Smart MissingLink (SML) feature monitors network connections and provides notification when network segments fail allowing network managers to quickly identify the source and location of failed segments and minimize downtime.
Allied Telesis PC200/2000 Series media converters are the ideal solution for powering remote devices such as IP phones video cameras wireless access points etc. which are more than 100m from a Power over Ethernet switch.
The PC2000/SP features a 100MB or 1000MB SFP port and a 10/100/1000T twisted-pair port. Allied Telesis offers a wide variety of SFPs featuring multimode single mode and BiDi optics.
The fixed fiber-optic port PC200x models features an SC connector for 100FX and 1000SX or LC connector for the 1000SX capable of operating at a distance of up to two kilometers over multi-mode fiber. The twisted-pair port has an RJ-45 connector with a maximum operating distance of 100 meters. In addition to transmitting data the twisted-pair port also injects power down the cable allowing a remote PoE+ Powered Device to operate without the need of any additional power source. All PoE+ Devices (IEEE802.3at compliant) are supported as the PC200x PoE+ Series can deliver a full 30W of power to the remote device.
Remote Power Cycle
The PC200/2000 Series offers feature where when the fiber port is dropped the TX PoE+ port will cycle power. It allows a remote administrator to login in a switch and disable the switch alliedtelesis.com port in which the PC200/2000 Series is attached and will have the remote PoE+ device to lose power. This can be useful when an administrator needs to reset a remote device without actually physical going to the location.
VLAN Support
Many backbone switch products support the industry-standard IEEE 802.1Q specification for Virtual LANs (VLANs) that sends extra-long data packets on the network. PC200/2000 Series switches are fully compatible with these long packets enabling them to be used in modern networks. Switches not supporting this feature will discard these extra-long packets making them unsuitable for modern networks.
Small and Flexible
The small size and internal power supply of the PC200/2000 Series allows them to be used almost anywhere.
Smart MissingLink™ (SML)
The Smart MissingLink (SML) feature monitors network connections and provides notification when network segments fail allowing network managers to quickly identify the source and location of failed segments and minimize downtime.
Media Type Supported
Twisted Pair
Media Type Supported
Optical Fiber
Network Technology
10/100/1000Base-T
Network Technology
1000Base-SX
Package Contents
- PoE+ to Fiber Switching Media Converter
- AC Power Supply Multi-region (USUK AU EU)
Power source
Power Supply
Product Model
PC2000/LC
Product Name
PoE+ to Fiber Switching Media Converter
Product Series
PC2000
Product Type
Transceiver/Media Converter
Total Number of Ports
2
Weight (Approximate)
1.65 lb
Width
6.1"
