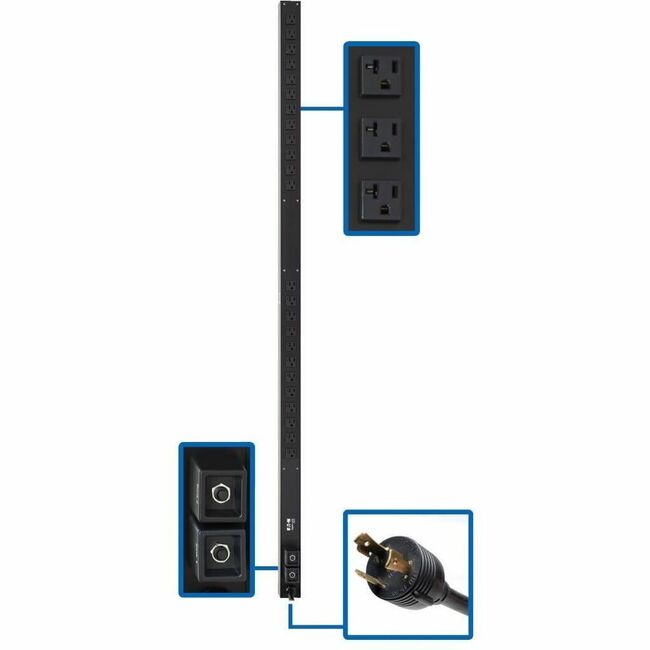

Tripp Lite PDU Basic 24 5-15/20R L5-30P 2.9kW 120V 10ft Cord 63.75in 0U
Tripp Lite PDU Basic 24 5-15/20R L5-30P 2.9kW 120V 10ft Cord 63.75in 0U - Basic - NEMA L5-30P - 24 x NEMA 5-15/20R - 120 V AC - 0U - Vertical - Rack-mountable
| $344.65 | Retail $490.46 |
- Ideal no-frills PDU for telecom, security, audio/video and other network applications
- 24 NEMA 5-15/20R outlets distribute AC power to connected equipment
- Switchless design helps prevent accidental shutdowns that can lead to costly downtime
- 10 ft. cord with NEMA L5-30P single-phase input connects to AC power source
- 63.75 in. 0U PDU with included mounting hardware installs in rack or under counter
- 2-year limited warranty
By:
Tripp Lite
Manufacturer:
Tripp Lite by Eaton
Product ID:
81777
Item:
PDUV30
UPC Code:
037332255792
Our Part #
8JT039
Condition
New
$344.65EA
$490.46
$490.46
Availability
Only 35 Left In Stock
You may be also interested
Product description
Tripp Lite PDU Basic 24 5-15/20R L5-30P 2.9kW 120V 10ft Cord 63.75in 0U - Basic - NEMA L5-30P - 24 x NEMA 5-15/20R - 120 V AC - 0U - Vertical - Rack-mountable
Basic - NEMA L5-30P - 24 x NEMA 5-15/20R - 120 V AC - 0U - Vertical - Rack-mountable
Specifications
Mounting Orientation
Vertical
PDU Type
Basic
Phase
Single Phase
Power Rating (Watt)
3050 W
Receptacle Detail
24 x NEMA 5-15/20R
UPC Alternates
037332255792
Brand Name
Tripp Lite
Country of origin
China
Depth
3.8"
Environmental Certification
RoHS
Environmentally Friendly
Yes
Height
63.8"
Input current
30 A
Input voltage
120 V AC
Limited Warranty
2 Year
Manufacturer
Tripp Lite by Eaton
Manufacturer Part Number
PDUV30
Manufacturer Website Address
http://www.tripplite.com
Marketing Information
Single-Phase 120V PDU Distributes Network-Grade Power to Multiple Loads
This basic PDU is an ideal no-frills unit for networking telecom security audio/video and sound reinforcement applications. Recommended for small to mid-size data centers computer rooms and network closets the PDUV30 features two breakered load banks each with 12 NEMA 5-15/20R outlets for connecting equipment. A 10-foot cord with NEMA L5-30P input plug connects to your facility's AC power source generator or protected UPS system to distribute power to connected loads.
Up-to-Date Safety Features Protect Your Vital Equipment
The switchless design helps prevent an accidental shutdown which could lead to costly downtime. Dual 20A circuit breakers protect connected components from dangerous overloads.
Versatile Installation Options Give You Plenty of Choices
The 63.75-inch 0U PDU mounts vertically in an EIA-standard 19-inch rack using the included toolless mounting buttons or the included mounting brackets with user-supplied hardware. You may also use the brackets to secure the PDU to the underside of a counter with the addition of two user-supplied screws. Bolt-down retention brackets keep power cords organized and your rack free of clutter.
Typical Applications
Deliver network-grade power to high-density equipment in networking telecom security audio/video and sound reinforcement applications
Mount Type
Rack-mountable
Output voltage
100 V AC
Output voltage
127 V AC
Package Contents
- PDUV30 24-Outlet PDU
- 2 x Plug Retention Brackets with Installation Hardware
- Rack-mounting Hardware
- Owner's Manual
Plug/Connector Type
NEMA L5-30P
Product Name
PDUV30 24-Outlet PDU
Product Type
PDU
Protection Type
Overload Protection
Rack Height
0U
Receptacle Type
NEMA 5-15/20R
Weight (Approximate)
8 lb
Width
2.3"
