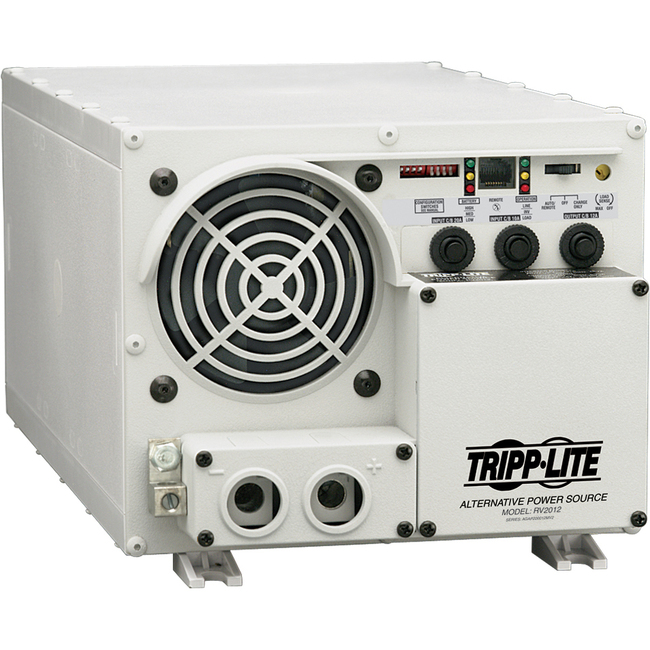

Tripp Lite 1500W RV Inverter / Charger with Hardwire Input / Output 12VDC 120VAC

• AC Output: 120 VAC nominal
• DC Charger Output: 12 VDC nominal
• DC Input: Requires 12 VDC input source capable of delivering 145 A
• AC Input: 120 VAC
• AC Input connection type: Hardwire
• DC Input connection type: Set of 2 DC bolt-down terminals
• AC surge suppression: 450 joules AC
• Cooling method: Fan
• Low voltage transfer to battery power: User configurable to 75V 85V 95V & 105V
• High voltage transfer to battery power: User configurable to 135V 145V
• Moisture-resistant components for marine use or wet climates
• Temperature-sensitive charging and automatic generator-start capabilities
• Advanced 3-stage battery charger and selector switch for gel or wet cell batteries
• Allows unlimited runtime capability by allowing the use any number of user-supplied batteries
• Overload protection: Includes 25 A input breaker dedicated to the charging system and 20 A output load breaker

• UL458
• cUL (Canada)

Connect to an RV conversion van or boat electrical system to run 120V AC home entertainment equipment power tools computers appliances and more.

Tripp Lite's RV1512ULHW Inverter/Charger is the quiet alternative to gas generatorswith no fumes fuel or noise to deal with! It provides equipment with utility- or generator-supplied AC electricity filtered through premium ISOBAR surge protection. This DC-to-AC inverter with automatic line-to-battery transer and integrated charging system serves as an extended run UPS a standalone power source or an automative inverter suitable for rugged RV applications. Supplies up to 1500 watts of continuous 120V AC power from any 12V DC battery or automotive DC source. OverPower TM inverter output feature temporarily provides up to 150% of the continuous output for 1-60 minutes and DoubleBoost TM inverter output feature delivers up to 200% of the continuous output for up to 10 seconds providing the extra power needed to cold start heavy-duty tools and motorized equipment. When hardwire AC input is energized commercial power passes through to connected equipment and the battery set is recharged via 3 stage selectable 19/75 amp charging system. In UPS mode the APS system responds to blackouts and voltage fluctuations with a near instantaneous automatic transfer to battery-derived AC output. Includes a set of high current DC input terminals for simple installation (user supplies batteries and cabling - see owner's manual for recommendations). Passes sine wave

• APS PowerVerter RV RV1512UL Power Inverter With Charger
• RV1512UL Inverter/Charger
• Instruction manual with warranty information
