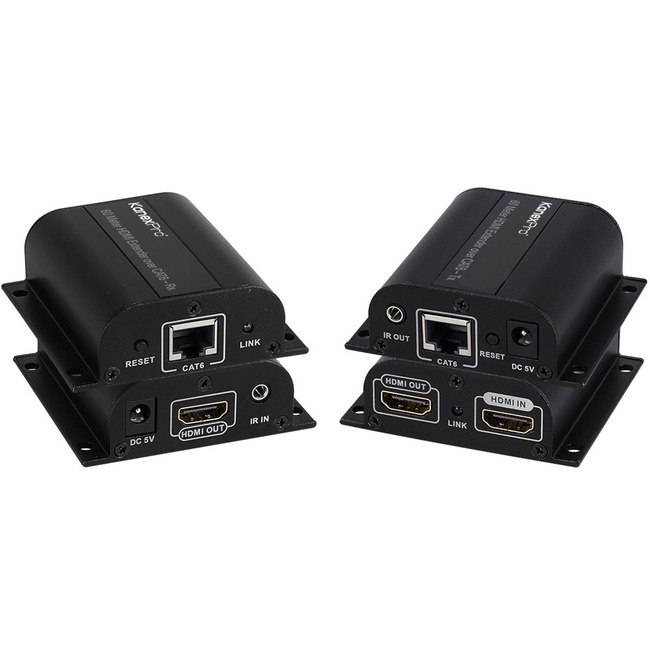

KanexPro HDMI Extender over CAT6 up to 196ft. (60m)
KanexPro HDMI Extender over CAT6 up to 196ft. (60m) - 1 Input Device - 1 Output Device - 196.85 ft Range - 2 x Network (RJ-45) - 1 x HDMI In - 2 x HDMI Out - Full HD - 1920 x 1080 - Twisted Pair - Category 6a - Rack-mountable
| $91.13 | Retail $125.95 |
- Extend DVI/HDMI over CAT6 cable up to 196ft. (60m)
- Local HDMI output on Transmitter for preview
- Supports full HD 1080p (1920x1080@60Hz)
- Digital audio support
- HDCP & EDID compliant
- Full IR control over CAT6
- Supports 16-bit per channel (48-bit all channels)
- Compact metal enclosure
- Built-in mounting kits
- Easy to install
Manufacturer:
KanexPro
Product ID:
86471
Item:
EXT-HD60M
UPC Code:
813982020962
Our Part #
45111815
Condition
New
$91.13EA
$125.95
$125.95
Availability
Only 8 Left In Stock
Product description
KanexPro HDMI Extender over CAT6 up to 196ft. (60m) - 1 Input Device - 1 Output Device - 196.85 ft Range - 2 x Network (RJ-45) - 1 x HDMI In - 2 x HDMI Out - Full HD - 1920 x 1080 - Twisted Pair - Category 6a - Rack-mountable
1 Input Device - 1 Output Device - 196.85 ft Range - 2 x Network (RJ-45) - 1 x HDMI In - 2 x HDMI Out - Full HD - 1920 x 1080 - Twisted Pair - Category 6a - Rack-mountable
Specifications
Network (RJ-45)
Yes
Transmitter Depth
1.80"
Transmitter Height
1"
Transmitter Weight (Approximate)
8.64 oz
Transmitter Width
3.20"
UPC Alternates
813982020962 818215732797 818283529435
Connectivity technology
Wired
Form factor
Rack-mountable
Graphics Modes
Full HD
Limited Warranty
3 Year
Manufacturer
KanexPro
Manufacturer Part Number
EXT-HD60M
Manufacturer Website Address
http://www.kanexpro.com
Marketing Information
The KanexPro EXT-HD60M is a compact HDMI Extender with local HDMI output designed to carry DVI/ HDMI signals over distances beyond the capability of standard HDMI/ DVI cable. It extends video and audio over a single CAT6 cable up to 196ft. (60m) and is compliant with HDCP and EDID to enhance Deep Color and optimal resolutions up to HD 1080p/60.
In addition the extender provides auto-adjustment buffering and signal equalization to maintain pixel-perfect resolution up to HD 1080p/60 on a single CAT6 cable.
Applications:
Ideally used for extending HDMI signals over CAT6 in home theater applications small office house of worship centers and classrooms where HDMI sources such as a Blu-ray player HDMI laptop or cable box are remotely connected to the display.
Please note:This extender will not work over CAT5/5e please use CAT6 or 6a.To reduce video signal dropouts from lightings ceiling fans and other EMI issues it is strongly recommended that you terminate shielded CAT6 and use shielded RJ45 connectors with our extender products.
Maximum Operating Distance
196.85 ft
Maximum Video Resolution
1920 x 1080
Media Type Supported
Twisted Pair
Number of HDMI Inputs
1
Number of Network (RJ-45) Ports
2
Package Contents
- 1 x Transmitter
- 1 x Receiver
Product Name
HDMI Extender over CAT6 up to 196ft. (60m)
Product Type
Video Extender Transmitter/Receiver
Twisted Pair Cable Standard
Category 6a
