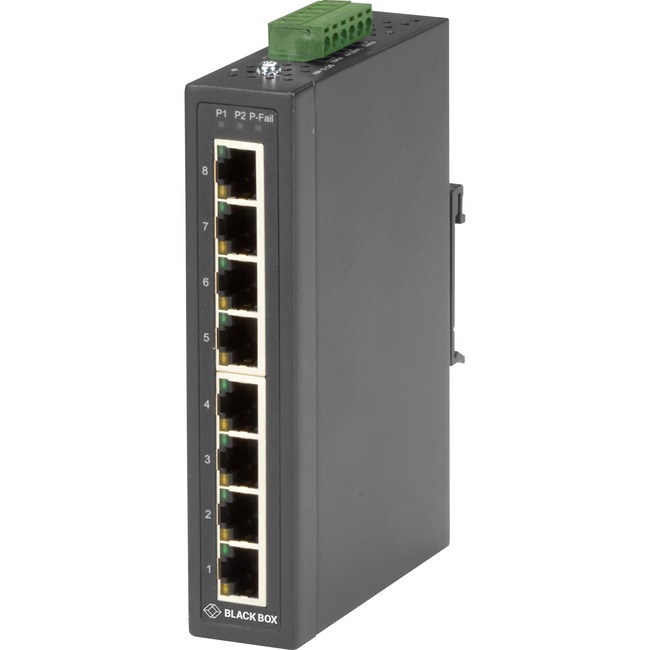

Black Box Industrial 10/100-Mbps Ethernet Switch - Unmanaged, Extreme Temperature, 8-Port
Black Box Industrial 10/100-Mbps Ethernet Switch - Unmanaged, Extreme Temperature, 8-Port - 8 Ports - 2 Layer Supported - Twisted Pair - Wall Mountable, DIN Rail Mountable, Panel-mountable - 1 Year Limited Warranty
| $146.39 | Retail $165.95 |
- Features eight 10-/100-Mbps RJ-45 switch ports with auto MDI/MDI-X.
- Withstands extreme temperatures between -40 and +167� F (-40 to +75� C) and has an IP 30 enclosure.
- Supports redundant 12-48 VDC input power and a P-Fail relay.
- Ideal for security and surveillance, building automation, oil/gas facilities, military applications and factories.
- Features broadcast storm protection.
- Mounts on a DIN rail or the wall.
- Includes panel mount kit.
By:
Black Box
Manufacturer:
Black Box Corporation
Product ID:
88710
Item:
LBH3080A
UPC Code:
009339798398
Our Part #
43222612
Condition
New
$146.39EA
$165.95
$165.95
Availability
Only 44 Left In Stock
Product description
Black Box Industrial 10/100-Mbps Ethernet Switch - Unmanaged, Extreme Temperature, 8-Port - 8 Ports - 2 Layer Supported - Twisted Pair - Wall Mountable, DIN Rail Mountable, Panel-mountable - 1 Year Limited Warranty
8 Ports - 2 Layer Supported - Twisted Pair - Wall Mountable, DIN Rail Mountable, Panel-mountable - 1 Year Limited Warranty
Specifications
Total Number of Network Ports
8
UPC Alternates
009339798398 783555223666 783555230411
Brand Name
Black Box
Country of origin
China
Depth
3.7"
Environmental Certification
WEEE
Environmental Certification
RoHS
Environmentally Friendly
Yes
Ethernet Technology
Fast Ethernet
Form factor
Wall Mountable
Form factor
Panel-mountable
Form factor
DIN Rail Mountable
Height
5.5"
Layer Supported
2
Limited Warranty
1 Year
Manageable
No
Manufacturer
Black Box Corporation
Manufacturer Part Number
LBH3080A
Manufacturer Website Address
http://www.blackbox.com
Marketing Information
Unlike the Ethernet switches in your wiring closet or computer center the switches at the edges of your network have to withstand extreme temperatures and conditions. This is where the Industrial 10-/100-Mbps Ethernet Switch from Black Box comes in. It's built to withstand extreme temperatures of -40 to 75°C. An IP30 metal housing protects against dust and dirt.
Ideal for use in harsh environments the switch is ideal for:
- Security/surveillance to backhaul IP camera data
- Building automation and HVAC control
- M2M communications with remote stations in oil/gas facilities
- Communications networks for defense and military applications
- Factory automation and machine control
Redundant power
The switch features 12-48 VDC redundant power which is secured with a double protection mechanism: Power Polarity Reverse Protect and an Overload Current Resettable Fuse. The former tolerates reverse power wiring while the later protects the switch from overload currents.
Alarm alerts
Each port has two LEDs to show link and collision status. The switch also has a P-Fail LED which in the event of a power failure will activate the alarm to notify administrators.
Easy to set up.
The switch is literally plug-and-play. All ports are autosensing for speed and duplex adjusting to the connected device automatically. They also feature Auto MDI/MDI-X eliminating the need for crossover cables.
Media Type Supported
Twisted Pair
Network Technology
10/100Base-T
Package Contents
Port/Expansion Slot Details
8 x Fast Ethernet Network
Product Name
Industrial 10/100-Mbps Ethernet Switch - Unmanaged Extreme Temperature 8-Port
Product Type
Ethernet Switch
Weight (Approximate)
1 lb
Width
1.2"
