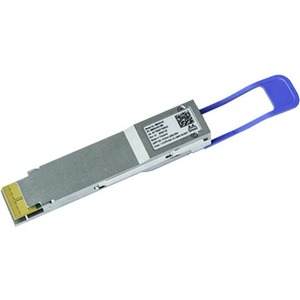

NVIDIA LinkX QSFP56 Module

NVIDIA^® Mellanox^® LinkX^® Optics Ethernet transceivers are used to create high-speed 100G-400G links supporting every configuration reach and speed in networks requiring detachable optical connectors. LinkX transceivers are designed to create high-speed 25G-400G optical links in Ethernet switching networks Ethernet storage fabrics (ESF) linking hard-disk-drive (HDD) and flash memory subsystems and NVIDIA GPU-based end-to-end AI systems. All transceivers are extensively tested in live GPU and switching systems and used in NVIDIA-Certified Systems™.

Long Reaches and Many Configurations

Transceivers are available in one four and eight channels in non-return-to-zero (NRZ) and 50G-4-level pulse-amplitude-modulation (PAM4) for 850nm multi-mode and 1310nm single-mode in small form-factor pluggable (SFP) quad small form-factor pluggable (QSFP) and QSFP double density (QFSP-DD) form factors.

100GbE DR1 500m transceiver has 1x 100G-PAM4 LC 1310nm optics and includes an internal gearbox to convert to 4x 25G NRZ electrical output. It's often used with 400G DR4 transceivers with splitter fibers to link new 400G-PAM4 systems to legacy 100G (4x 25G-NRZ)-based systems.

With 100 percent factory testing in end-to-end configurations all LinkX transceivers offer extremely low BER compared to industry standards and competitors. There are a wide variety of transceiver options available for GPUs CPUs and storage networks in every data center configuration.

HIGHLIGHTS | PORT SPEEDS

10G-400Gb/s

FORM FACTORS

SFP QSFP QSFP-DD

OPTICAL CONNECTORS

LC MPO

MODULATION TYPES

10/25G NRZ 50G-PAM4

Connectorized Transceivers for Long-Reach Links

Transceivers are widely used in data centers to connect NVIDIA GPU-based AI systems to top-of-rack (TOR) switches to leaf-spine and spine-super spine switches in link budgets requiring large optical power or long fiber reaches. The 500m PSM4/DR4 2km CWDM4/FR4 and 10km LR4 are used to traverse complex networks over long single-mode fiber reaches. Short-reach runs up to 100m along system rows and the multi-mode SR/SR4/SR8 versions are the most popular low-cost options.

Key Features

• Extensively tested in live NVIDIA switching and GPU-based systems
• Low-cost low- latency long reaches
• Extensive 25/50/100/200/400G product offering for every need
• Tested and certified in NVIDIA GPU DGX™ EGX™ and DPU systems

Benefits

• Many parts designed and manufactured by LinkX Optics
• 100 percent factory tested in live switching and GPU-based systems
• Designed to beyond IEEE industry BER standards for reliable operation under harsh operating conditions
