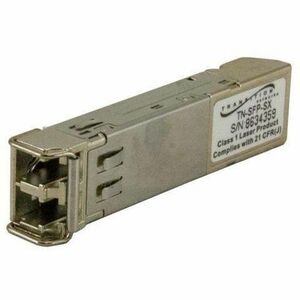

Transition Networks 1000BASE-SX Small Form Factor Pluggables (SFP) transceivers
Transition Networks 1000BASE-SX Small Form Factor Pluggables (SFP) transceivers - 1 x 1000Base-SX
| $38.39 | Retail $60.50 |
By:
Transition Networks
Manufacturer:
Transition Networks, Inc
Product ID:
91317
Item:
TN-SFP-SX
UPC Code:
648177013876
Our Part #
E81568
Condition
New
$38.39EA
$60.50
$60.50
Availability
Only 3 Left In Stock
Product description
Transition Networks 1000BASE-SX Small Form Factor Pluggables (SFP) transceivers - 1 x 1000Base-SX
1 x 1000Base-SX
Specifications
Fiber Mode Supported
Multi-mode
Interfaces/Ports Details
1 x LC 1000Base-SX
Maximum Distance Supported
1804.46 ft
UPC Alternates
648177013876 648177138760
Additional Information
- Fiber Channel Switch Infrastructure
- XDSL Applications
- Metro Edge Switching
- 850nm Wavelength
- Compliant with Fiber Channel 1x SM-LC-L FC-PI
- Min TX PWR: -9.5 dBm
- Max TX PWR: -4.0 dBm
- RX Sensitivity: -17.0 dBm
- Max In PWR: -3.0 dBm
- Link Budget: 7.5 dB
Application/Usage
Data Networking
Brand Name
Transition Networks
Compatibility
- The device is designed for use in Switches and routers compatible with Small Form Factor Pluggable Multi-Sourcing Agreement (MSA).
Connector Type
LC
Country of origin
Taiwan
Depth
2.2"
Form factor
Hot-pluggable
Height
0.3"
Limited Warranty
Lifetime
Manufacturer
Transition Networks Inc
Manufacturer Part Number
TN-SFP-SX
Manufacturer Website Address
http://www.transition.com
Marketing Information
The TN-SFP-XX Small Form Factor Pluggables (SFP) transceivers are designed for bi-directional serial optical data communications such as Gigabit Ethernet or Fiber Channel and speeds up to 1.25Gbps. The device is designed for use in Switches and routers compatible with Small Form Factor Pluggable Multi-Sourcing Agreement (MSA).
Maximum Data Transfer Rate
1.25
Media Type Supported
Optical Fiber
Product Name
1000BASE-SX Small Form Factor Pluggables (SFP) transceivers
Product Type
SFP (mini-GBIC)
Total Number of Ports
1
Width
0.5"
