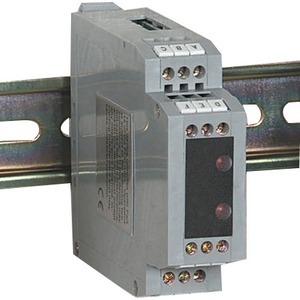

Black Box DIN Rail Repeaters with Opto-Isolation, RS-422/RS-485
Black Box DIN Rail Repeaters with Opto-Isolation, RS-422/RS-485
| $229.32 | Retail $259.95 |
By:
Black Box
Manufacturer:
Black Box Corporation
Product ID:
93473
Item:
ICD102A
UPC Code:
700604199949
Our Part #
UP7723
Condition
New
$229.32EA
$259.95
$259.95
Availability
Only 42 Left In Stock
Product description
Black Box DIN Rail Repeaters with Opto-Isolation, RS-422/RS-485
Specifications
UPC Alternates
700604199949 822088100560
Additional Information
- Indicators - ICD102A: (2) LEDs: Data flow direction
- Isolation - ICD102A: 2000 VRMS for 1 minute of optical isolation of data lines;ICD103A: 2000 VDC for 1 minute
- Operating Environment - Temperature: -40 to +176° F (-40 to +80° C);Humidity: Up to 95% noncondensing
- Operation - ICD102A: RS-485: 2-wire half-duplex or 4-wire full-duplex; RS-422: Full-duplex;
- ICD103A: RS-232: Half- or full-duplex
- Speed - ICD102A: 2400 bps to 115.2 kbps switch-selectable; other rates available up to 460.8 kbps;ICD103A: Up to 115.2 kbps
- Surge Suppression - ICD102A: Bidirectional overvoltage suppressor: 6.5 V; Peak power dissipation: 600 W; Capacitance (maximum): 3000 pF
Brand Name
Black Box
Certifications & Standards
CE
Country of origin
United States
Depth
3.9"
Height
0.9"
Limited Warranty
1 Year
Manufacturer
Black Box Corporation
Manufacturer Part Number
ICD102A
Manufacturer Website Address
http://www.blackbox.com
Marketing Information
Quick Facts
- Act as repeaters isolators and extenders.
- The RS-422/RS-485 model isolates RS-422/485 equipment features selectable rates between 2400 bps and 115.2 kbps and enables a system to exceed 32-node limitations.
- The RS-232 model isolates the TD RD RTS and CTS channels supports 115.2-kbps speeds on all four channels and extends the RS-232 signal beyond 50 feet (15.2 m).
Product Name
DIN Rail Repeaters with Opto-Isolation RS-422/RS-485
Product Type
Signal Repeater
Width
2.9"
